  • Ultrasonic Cleaning Transducer Submersible Box 28KHz or 40KHz

Ultrasonic Cleaning Transducer Submersible Box 28KHz or 40KHz

Ultrasonic Cleaning Transducer Submersible Box 28KHz or 40KHz Introduction

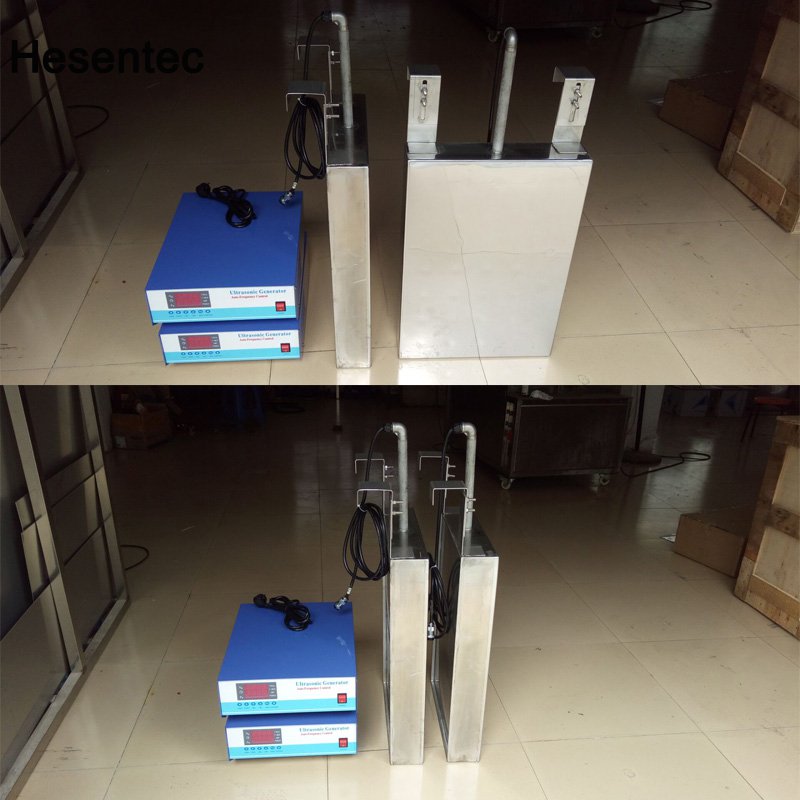

Ultrasonic Cleaning Transducer Submersible Box 28KHz or 40KHz

SS316 stainless steel structure, acid and alkali resistant, beautiful and durable.
The split structure is adopted, and the high frequency connection with the socket is adopted between the vibration plate and the ultrasonic generator, and the use and maintenance are convenient.
Ultrasonic vibration board advantages, easy to maintain.
Surface treatment industry: degreasing and derusting before electroplating; pre-ion plating cleaning; phosphating; removing carbon deposits; removing scale; removing polishing paste;
Instrumentation industry: high cleanliness of precision parts, cleaning clothes before assembly, etc.
Electronics industry: printing circuit boards in addition to rosin, welding spots; high-voltage contacts and other mechanical and electronic parts cleaning clothes.
Medical industry: cleaning, disinfection, sterilization, cleaning of laboratory utensils, etc.
Semiconductor industry: High cleanliness cleaning of semiconductor wafers.

Type Diamention(mm) Frequency (Khz) Power(W) Ultrasonic Transducer
HS-ZBH300W 300*190*100 25,28,33,40,80,130 300 6
HS-ZBH600W 360*275*100 25,28,33,40,80,130 600 12
HS-ZBH1000W 450*350*100 25,28,33,40,80,130 1000 20
HS-ZBH1200W 470*380*100 25,28,33,40,80,130 1200 24
HS-ZBH1500W 520*450*100 25,28,33,40,80,130 1500 30
HS-ZBH1800W 560*450*100 25,28,33,40,80,130 1800 36
HS-ZBH2000W 650*450*100 25,28,33,40,80,130 2000 40
HS-ZBH2400W 740*520*100 25,28,33,40,80,130 2400 48
HS-ZBH3000W 820*540*100 25,28,33,40,80,130 3000 60
HS-ZBH5000W 1200*590*100 25,28,33,40,80,130 5000 100
Above are single frequency ultrasonic immersible transducer pack OEM Ultrasonic Immersible Transducer Pack（Size, Frequency,Power）


Ultrasonic Cleaning Transducer Submersible Box 28KHz or 40KHz
Ultrasonic Cleaning Transducer Submersible Box 28KHz or 40KHz

上一篇：Immersible Ultrasonic Cleaning Transducer And Generator 1000W

下一篇：Submersible Ultrasonic Cleaning Transducer With Generator 1200W
