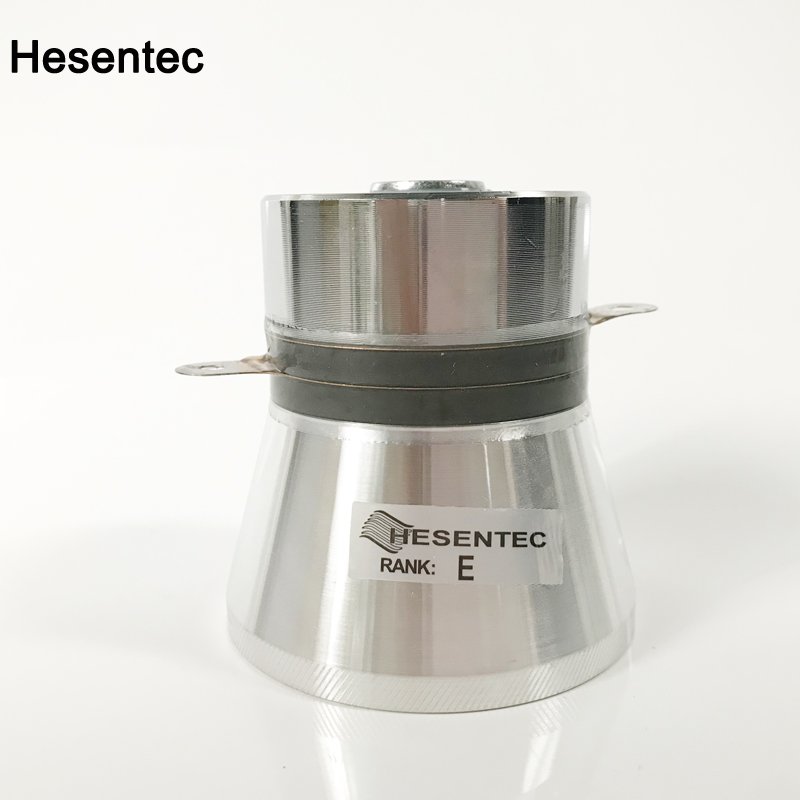

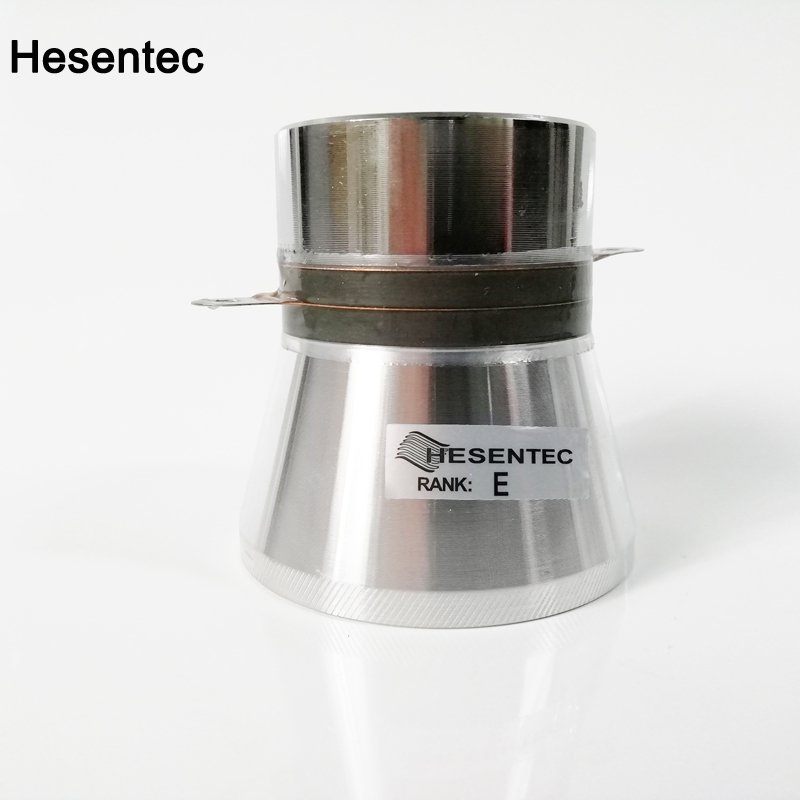

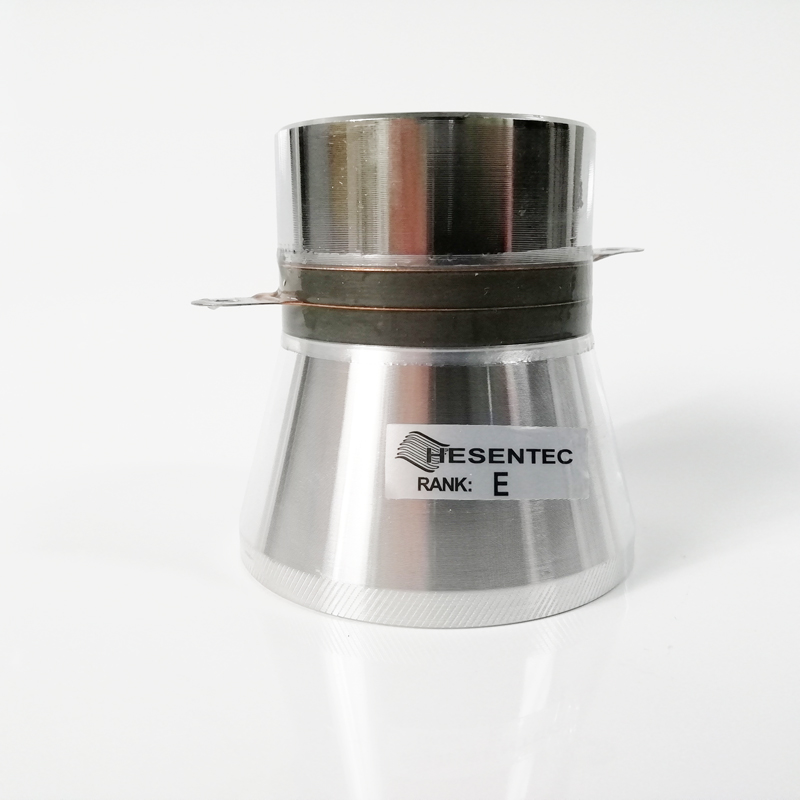

HS-4SH-5028 Hesentec Ultrasonic Transducer

HS-4SH-5028 Hesentec Ultrasonic Transducer

Based on the above principles
Medium frequency (25 ~ 28KHz): If the dirt of the cleaned material is slightly heavy or the cleaning is difficult and moderate, and the explosive impact does not cause much damage to the surface of the cleaned material, the intermediate frequency series transducer should be selected. This series of industries are the most widely used, and are common in machinery processing industry, electroplating industry, catering industry and so on.

Model	Frequency	Capacitance	Resonance Impedance	Size	Power	Insulation resistance
	（KHz）	（pF）	（Ω）	Radiation Head*Height (mm)	（W）	(2500VDC)
HS-8SH-3825	25±0.8	3800±10%	≤20Ω	59*80	60w	≥100MΩ
HS-8SH-3828	28±0.5	3800±10%	≤20Ω	59*68	60w	≥100MΩ
HS-8SH-3833	33±0.5	3800±10%	≤20Ω	48*61	60w	≥100MΩ
HS-8SH-3840	40±0.5	3800±10%	≤20Ω	48*51	60w	≥100MΩ
HS-8SH-4520	21.5±0.8	5600±10%	≤20Ω	67*92	100w	≥100MΩ
HS-8SH-4528	28±0.5	5600±10%	≤20Ω	67*68	100w	≥100MΩ
HS-8SH-5028	28±0.5	7200±10%	≤20Ω	67*68	120w	≥100MΩ
HS-4SS-3528	28 ±0.5	4000±10%	≤20Ω	45*79	50w	≥100MΩ
HS-4AH-3540	40 ±1.0	4000±10%	≤20Ω	45*55	50w	≥100MΩ
HS-4SH-3825	25±0.8	4800±10%	≤20Ω	59*80	60w	≥100MΩ
HS-4SH-3828	28±0.5	4800±10%	≤20Ω	59*68	60w	≥100MΩ
HS-4SS-3833	33±0.5	4800±10%	≤20Ω	48*62	60w	≥100MΩ
HS-4SH-3840	40±0.5	4800±10%	≤20Ω	48*51	60w	≥100MΩ
HS-4SH-4520	22±0.5	7600±10%	≤20Ω	67*92	100w	≥100MΩ
HS-4SH-4525	25±0.5	7600±10%	≤20Ω	67*76	100w	≥100MΩ
HS-4SH-4528	28±0.5	7600±10%	≤20Ω	67*68	100w	≥100MΩ
HS-4SH-4540	40±0.5	7600±10%	≤20Ω	55*53	100w	≥100MΩ
HS-4SH-5028	28±0.5	9600±10%	≤20Ω	67*68	120w	≥100MΩ
HS-4SS-38100	100±1.5	4800±10%	≤25Ω	40*57	60w	≥100MΩ
HS-4AS-38120	120±1.5	4800±10%	≤25Ω	40*58	60w	≥100MΩ
HS-4AH-25200	200±2.0	2300±10%	≤35Ω	30*35	20w	≥100MΩ
