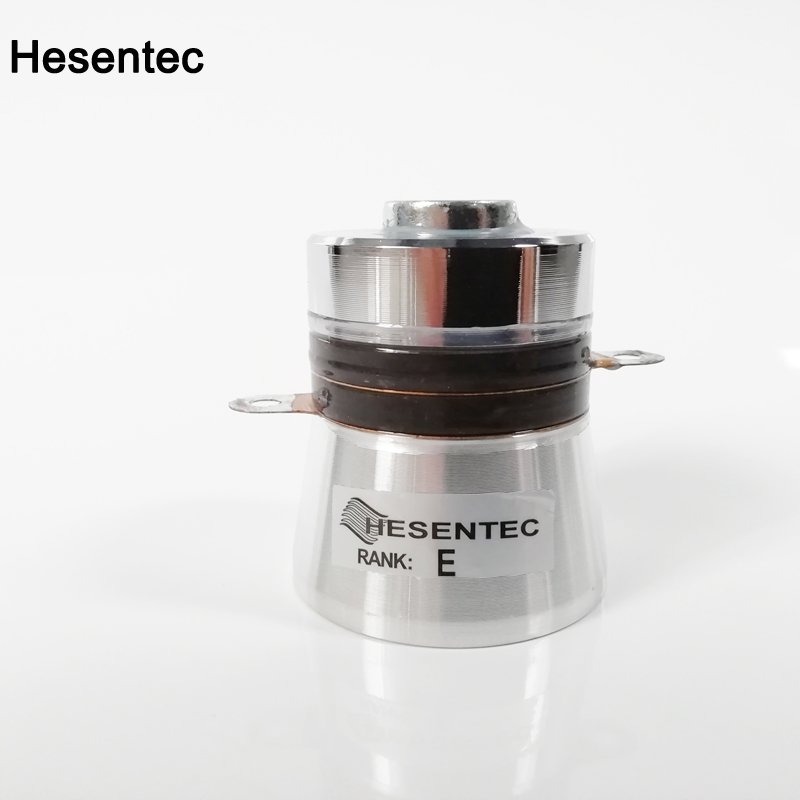

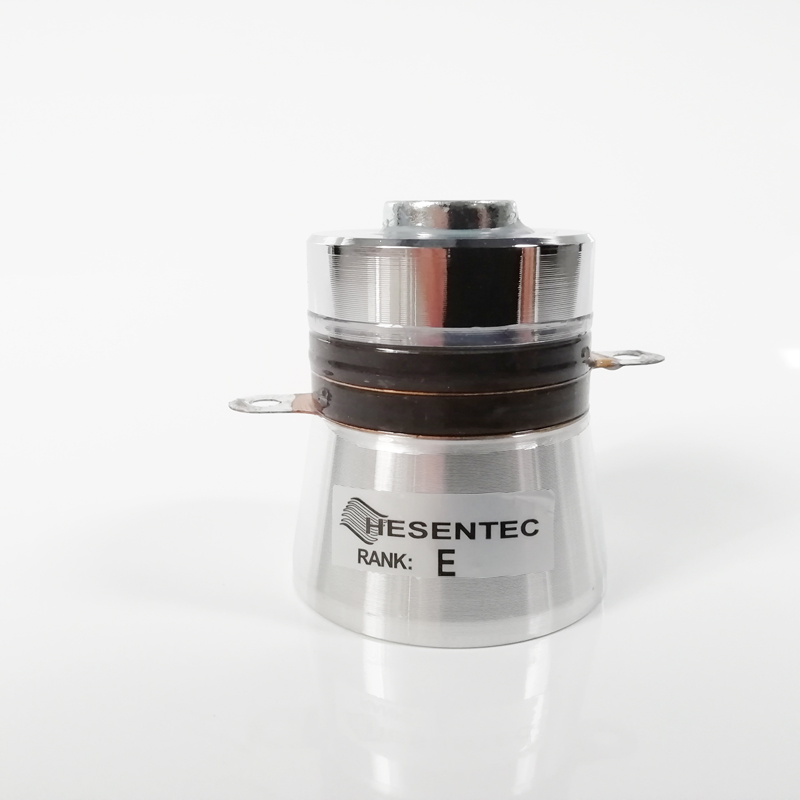

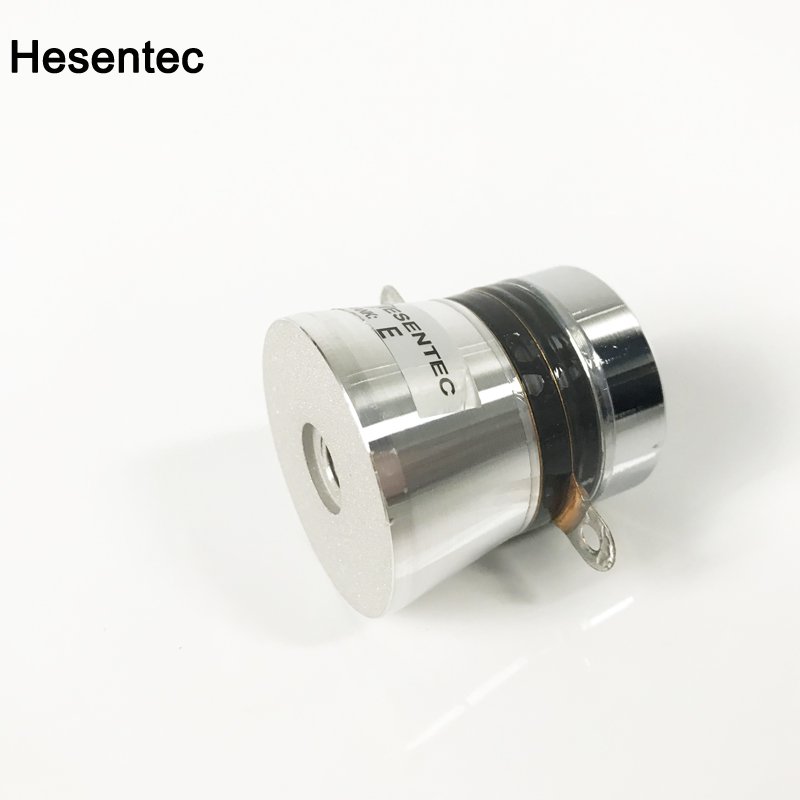

HS-4SH-3840 Hesentec Ultrasonic Transducer

HS-4SH-3840 Hesentec Ultrasonic Transducer

Based on the above principles:

Medium and high frequency (33 ~ 60KHz): When the dirt of the cleaned material is light, the cleaning is easy, or the explosive shock damage to the surface of the cleaned material is required, the medium and high frequency series transducer should be selected. Commonly used industries include precision parts, glass glasses, electronic components, circuit boards, etc.

Model	Frequency	Capacitance	Resonance Impedance	Size	Power	Insulation resistance
	（KHz）	（pF）	（Ω）	Radiation Head*Height (mm)	（W）	(2500VDC)
HS-8SH-3825	25±0.8	3800±10%	≤20Ω	59*80	60w	≥100MΩ
HS-8SH-3828	28±0.5	3800±10%	≤20Ω	59*68	60w	≥100MΩ
HS-8SH-3833	33±0.5	3800±10%	≤20Ω	48*61	60w	≥100MΩ
HS-8SH-3840	40±0.5	3800±10%	≤20Ω	48*51	60w	≥100MΩ
HS-8SH-4520	21.5±0.8	5600±10%	≤20Ω	67*92	100w	≥100MΩ
HS-8SH-4528	28±0.5	5600±10%	≤20Ω	67*68	100w	≥100MΩ
HS-8SH-5028	28±0.5	7200±10%	≤20Ω	67*68	120w	≥100MΩ
HS-4SS-3528	28 ±0.5	4000±10%	≤20Ω	45*79	50w	≥100MΩ
HS-4AH-3540	40 ±1.0	4000±10%	≤20Ω	45*55	50w	≥100MΩ
HS-4SH-3825	25±0.8	4800±10%	≤20Ω	59*80	60w	≥100MΩ
HS-4SH-3828	28±0.5	4800±10%	≤20Ω	59*68	60w	≥100MΩ
HS-4SS-3833	33±0.5	4800±10%	≤20Ω	48*62	60w	≥100MΩ
HS-4SH-3840	40±0.5	4800±10%	≤20Ω	48*51	60w	≥100MΩ
HS-4SH-4520	22±0.5	7600±10%	≤20Ω	67*92	100w	≥100MΩ
HS-4SH-4525	25±0.5	7600±10%	≤20Ω	67*76	100w	≥100MΩ
HS-4SH-4528	28±0.5	7600±10%	≤20Ω	67*68	100w	≥100MΩ
HS-4SH-4540	40±0.5	7600±10%	≤20Ω	55*53	100w	≥100MΩ
HS-4SH-5028	28±0.5	9600±10%	≤20Ω	67*68	120w	≥100MΩ
HS-4SS-38100	100±1.5	4800±10%	≤25Ω	40*57	60w	≥100MΩ
HS-4AS-38120	120±1.5	4800±10%	≤25Ω	40*58	60w	≥100MΩ
HS-4AH-25200	200±2.0	2300±10%	≤35Ω	30*35	20w	≥100MΩ
