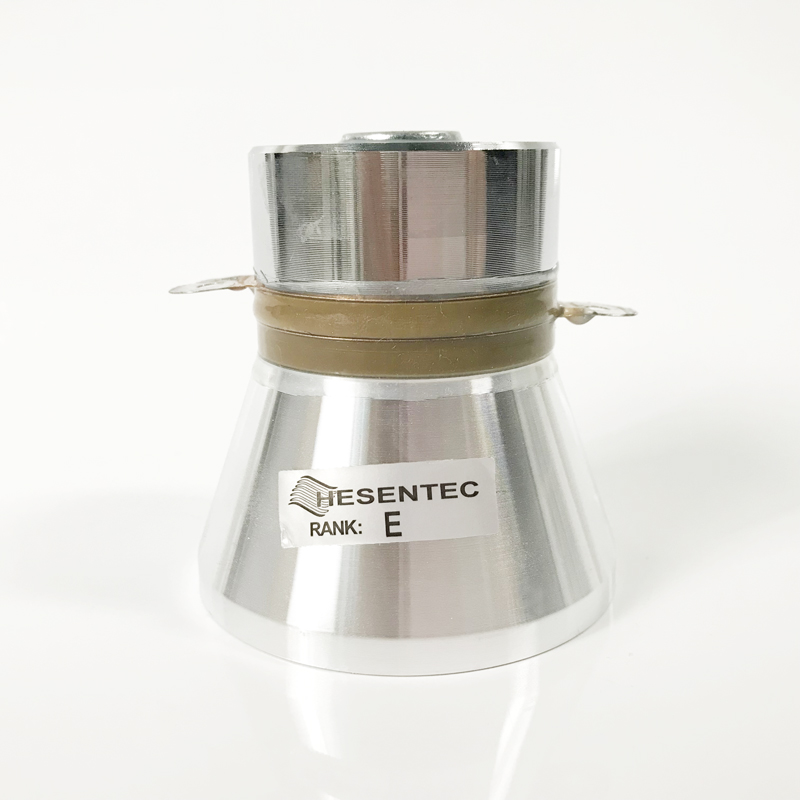

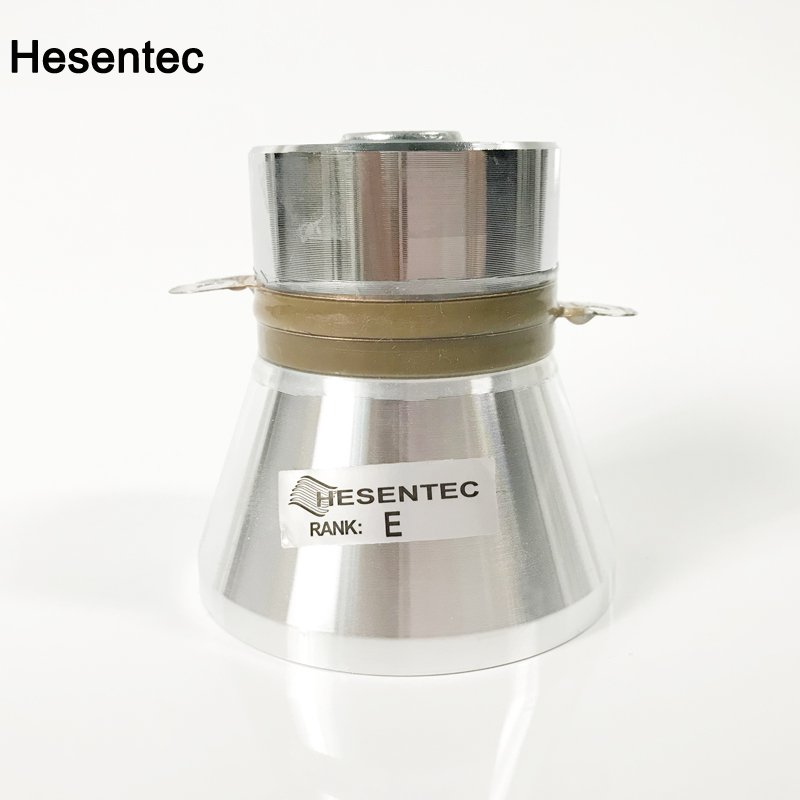

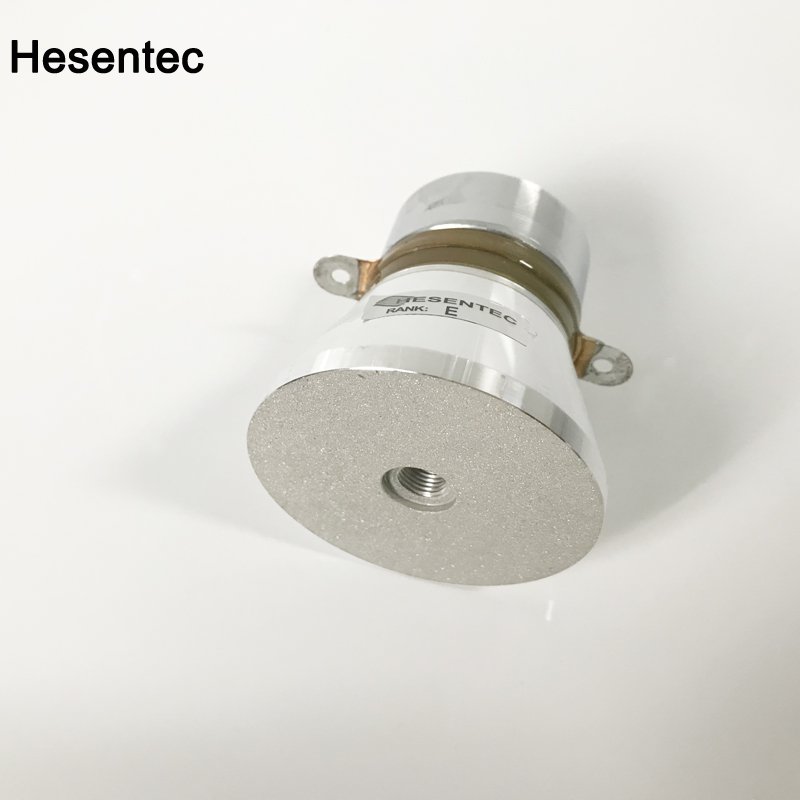

HS-8SH-4528 Hesentec Ultrasonic Transducer

HS-8SH-4528 Hesentec Ultrasonic Transducer

Ultrasonic cleaning part ,ultrasonic energy concerter ,ultrasonic tubular transducer for cleaning,ultrasonic transducer water proof,Ultrasonic  transverter,high frequency power transducer,ultrasonic high power transducer,ultrasonic high frequency transducer,high frequency cleaning transducer

Ultrasonic transducers are widely used. They are divided into industry, agriculture, transportation, life, medical and military according to the applied industry. According to the functions realized, it is divided into ultrasonic processing, ultrasonic cleaning, ultrasonic detection, detection, monitoring, telemetry, remote control, etc.; according to the working environment, it is divided into liquid, gas, biological, etc.; according to the nature, it is divided into power ultrasonic, ultrasonic detection, ultrasonic imaging, etc.

Model	Frequency	Capacitance	Resonance Impedance	Size	Power	Insulation resistance
	（KHz）	（pF）	（Ω）	Radiation Head*Height (mm)	（W）	(2500VDC)
HS-8SH-3825	25±0.8	3800±10%	≤20Ω	59*80	60w	≥100MΩ
HS-8SH-3828	28±0.5	3800±10%	≤20Ω	59*68	60w	≥100MΩ
HS-8SH-3833	33±0.5	3800±10%	≤20Ω	48*61	60w	≥100MΩ
HS-8SH-3840	40±0.5	3800±10%	≤20Ω	48*51	60w	≥100MΩ
HS-8SH-4520	21.5±0.8	5600±10%	≤20Ω	67*92	100w	≥100MΩ
HS-8SH-4528	28±0.5	5600±10%	≤20Ω	67*68	100w	≥100MΩ
HS-8SH-5028	28±0.5	7200±10%	≤20Ω	67*68	120w	≥100MΩ
HS-4SS-3528	28 ±0.5	4000±10%	≤20Ω	45*79	50w	≥100MΩ
HS-4AH-3540	40 ±1.0	4000±10%	≤20Ω	45*55	50w	≥100MΩ
HS-4SH-3825	25±0.8	4800±10%	≤20Ω	59*80	60w	≥100MΩ
HS-4SH-3828	28±0.5	4800±10%	≤20Ω	59*68	60w	≥100MΩ
HS-4SS-3833	33±0.5	4800±10%	≤20Ω	48*62	60w	≥100MΩ
HS-4SH-3840	40±0.5	4800±10%	≤20Ω	48*51	60w	≥100MΩ
HS-4SH-4520	22±0.5	7600±10%	≤20Ω	67*92	100w	≥100MΩ
HS-4SH-4525	25±0.5	7600±10%	≤20Ω	67*76	100w	≥100MΩ
HS-4SH-4528	28±0.5	7600±10%	≤20Ω	67*68	100w	≥100MΩ
HS-4SH-4540	40±0.5	7600±10%	≤20Ω	55*53	100w	≥100MΩ
HS-4SH-5028	28±0.5	9600±10%	≤20Ω	67*68	120w	≥100MΩ
HS-4SS-38100	100±1.5	4800±10%	≤25Ω	40*57	60w	≥100MΩ
HS-4AS-38120	120±1.5	4800±10%	≤25Ω	40*58	60w	≥100MΩ
HS-4AH-25200	200±2.0	2300±10%	≤35Ω	30*35	20w	≥100MΩ
