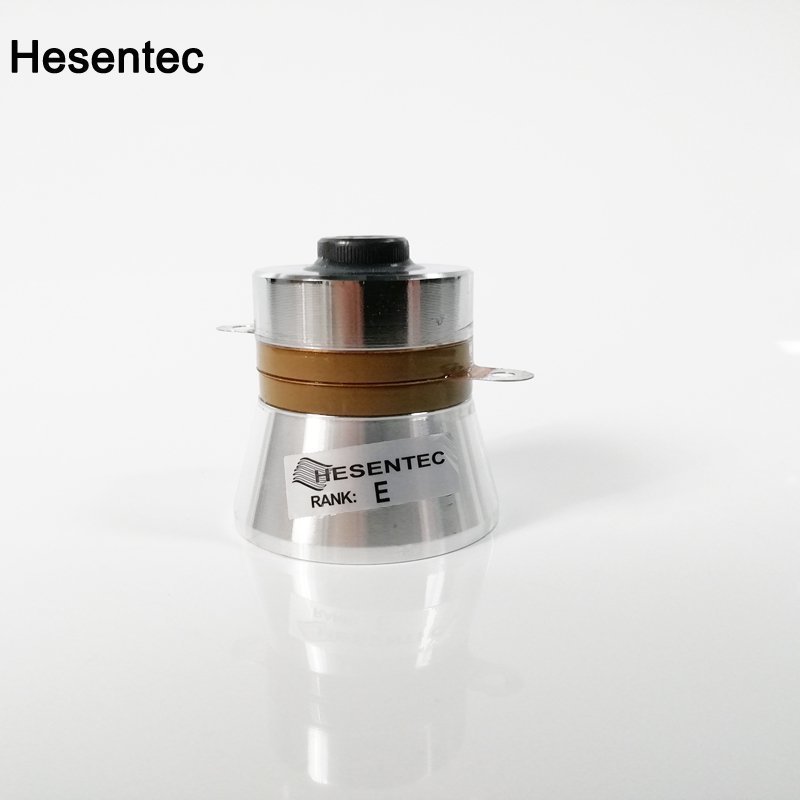

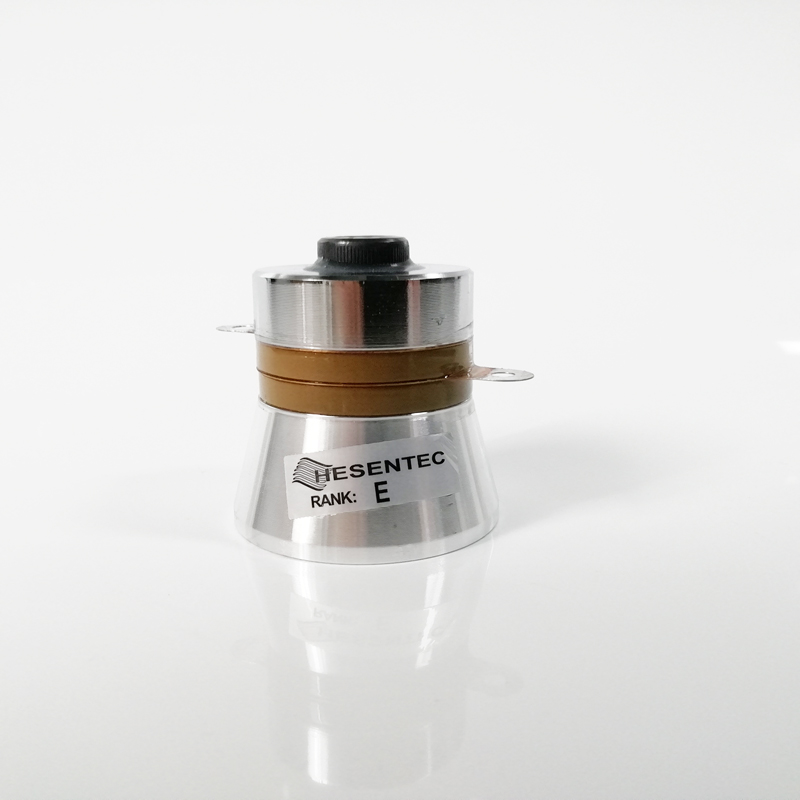

HS-8SH-3840 Hesentec Ultrasonic Transducer

Features


High efficiency

High amplitude

Good heat resistance

Good construction



Description


The application of the ultrasonic cleaning transducer is very extensive,

 it according to the application of the industry is divided into industry, agriculture, transportation, life, medical and military etc.

According to the functions are divided into ultrasonic machining, ultrasonic cleaning, ultrasonic detection, testing, monitoring, remote sensing, remote control, etc.;

According to the working environment is divided into liquid, gas, biology, etc.; According to the nature of the divided into power ultrasound and detection of ultrasonic, ultrasonic imaging, etc.

Model	Frequency	Capacitance	Resonance Impedance	Size	Power	Insulation resistance
	（KHz）	（pF）	（Ω）	Radiation Head*Height (mm)	（W）	(2500VDC)
HS-8SH-3825	25±0.8	3800±10%	≤20Ω	59*80	60w	≥100MΩ
HS-8SH-3828	28±0.5	3800±10%	≤20Ω	59*68	60w	≥100MΩ
HS-8SH-3833	33±0.5	3800±10%	≤20Ω	48*61	60w	≥100MΩ
HS-8SH-3840	40±0.5	3800±10%	≤20Ω	48*51	60w	≥100MΩ
HS-8SH-4520	21.5±0.8	5600±10%	≤20Ω	67*92	100w	≥100MΩ
HS-8SH-4528	28±0.5	5600±10%	≤20Ω	67*68	100w	≥100MΩ
HS-8SH-5028	28±0.5	7200±10%	≤20Ω	67*68	120w	≥100MΩ
HS-4SS-3528	28 ±0.5	4000±10%	≤20Ω	45*79	50w	≥100MΩ
HS-4AH-3540	40 ±1.0	4000±10%	≤20Ω	45*55	50w	≥100MΩ
HS-4SH-3825	25±0.8	4800±10%	≤20Ω	59*80	60w	≥100MΩ
HS-4SH-3828	28±0.5	4800±10%	≤20Ω	59*68	60w	≥100MΩ
HS-4SS-3833	33±0.5	4800±10%	≤20Ω	48*62	60w	≥100MΩ
HS-4SH-3840	40±0.5	4800±10%	≤20Ω	48*51	60w	≥100MΩ
HS-4SH-4520	22±0.5	7600±10%	≤20Ω	67*92	100w	≥100MΩ
HS-4SH-4525	25±0.5	7600±10%	≤20Ω	67*76	100w	≥100MΩ
HS-4SH-4528	28±0.5	7600±10%	≤20Ω	67*68	100w	≥100MΩ
HS-4SH-4540	40±0.5	7600±10%	≤20Ω	55*53	100w	≥100MΩ
HS-4SH-5028	28±0.5	9600±10%	≤20Ω	67*68	120w	≥100MΩ
HS-4SS-38100	100±1.5	4800±10%	≤25Ω	40*57	60w	≥100MΩ
HS-4AS-38120	120±1.5	4800±10%	≤25Ω	40*58	60w	≥100MΩ
HS-4AH-25200	200±2.0	2300±10%	≤35Ω	30*35	20w	≥100MΩ
