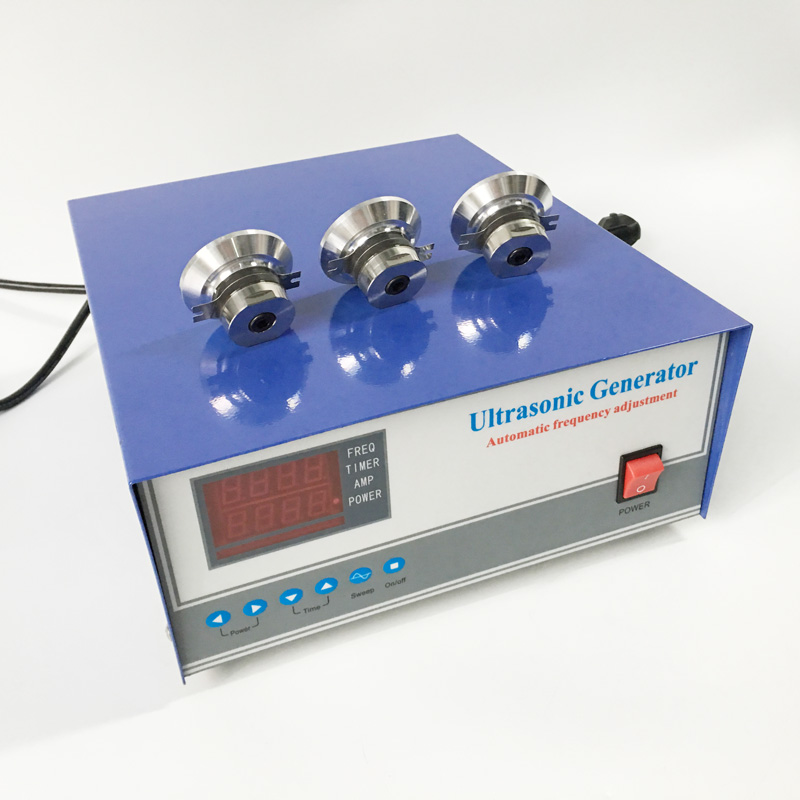

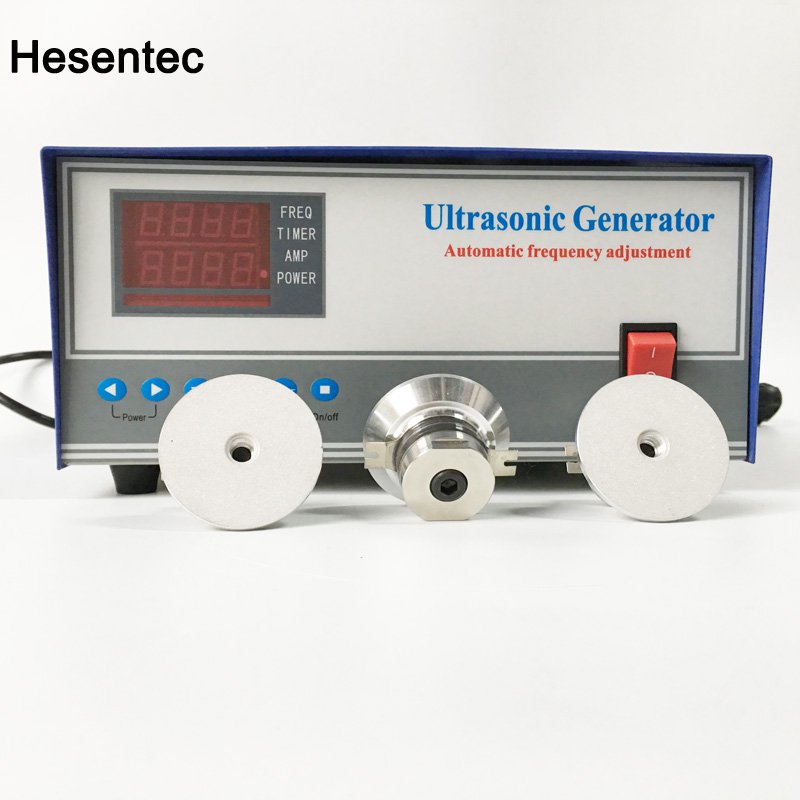

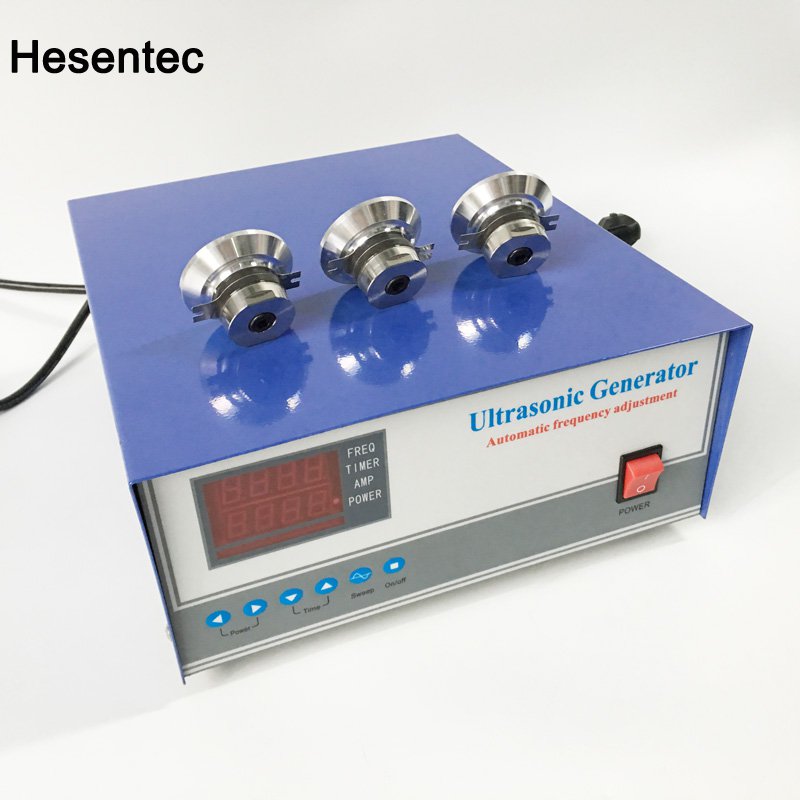

1500W Ultrasonic Generator For Driver Ultrasonic Transducer 40KHz
68khz/80khz ultrasound pulse generator for High Frequency Ultrasound cleaning machine 1000W cleaning
It is suitable for cleaning electroplated parts, stainless steel hardware parts, wax removal, oil removal, metal products, copper and aluminium parts, machinery parts, zinc alloy parts, clock parts, glasses, jewelry, glassware, almost all rigid plastics, metals and hardware parts in the process of mechanical processing residual oil, polishing paste, dust and other attachments. The other-excitation oscillation circuit structure used in the ultrasonic generator increases the output power by more than 10% compared with the self-excitation oscillation circuit structure. Linear amplifier circuit and switching power supply circuit are used in the form of ultrasonic amplifier circuit. The advantages of switching power supply circuit: high conversion efficiency, so high-power ultrasonic power supply uses this form. Advantages of linear power supply circuit: It does not strictly require circuit matching, and allows continuous and rapid changes in operating frequency.
With advanced micro-computer control technology and brand-new circuit design concept, a new generation of special power source for multi-functional ultrasonic cleaning machine is introduced. (1) The control box adopts the digital frequency synthesis technology under the control of a microcomputer, and the frequency is automatically tracked. (2) Digital ultrasonic power can be continuously adjusted and used more flexibly. Power is stronger and more efficient. (3) It has perfect protection functions: overheat protection, overload protection and short circuit protection, and its working performance is stable. (4) Four-bit timer, precise time control to seconds, to ensure the quality of your work. (5) Display "working state", "frequency" or "time" according to need. (6) It has multi-frequency conversion mode and frequency fine-tuning function. It has wide frequency range and strong versatility. (7) Can work 24 hours, stable performance, cleaning time can be adjusted to 00-60 minutes, power size can be adjusted to 0-100%, energy saving.
|
Type |
Power(W) |
Frequency (KHz) |
Transducer numbers |
Size |
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE
AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE
All of machine are available for opening remote control function to connect with your own PLC system |
|
HS-QXDY-300W |
300W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
3-6 |
300x360x150 |
|
HS-QXDY-600W |
600W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
6-12 |
300x360x150 |
|
HS-QXDY-900W |
900W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
9-18 |
300x360x150 |
|
HS-QXDY-1000W |
1000W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
10-20 |
300x360x150 |
|
HS-QXDY-1200W |
1200W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
12-24 |
300x360x150 |
|
HS-QXDY-1500W |
1500W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
15-30 |
300x360x150 |
|
HS-QXDY-1800W |
1800W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
18-36 |
300x360x150 |
|
HS-QXDY-2000W |
2000W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
20-40 |
300x360x150 |
|
HS-QXDY-2400W |
2400W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
24-48 |
300x360x150 |
|
HS-QXDY-3000W |
3000W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
50-60 |
300x360x150 |
|
High Frequency |
300W-1200W |
54KHZ,60KHZ,68KHZ,70KHZ,80KHZ,100KHZ,120KHZ,135KHZ |
|
High Frequency |
100W-300W |
175-200KHZ |
|
Above ultrasonic generator 110V-120V or 220V-240V are available,contact with us during your order with detail request |
