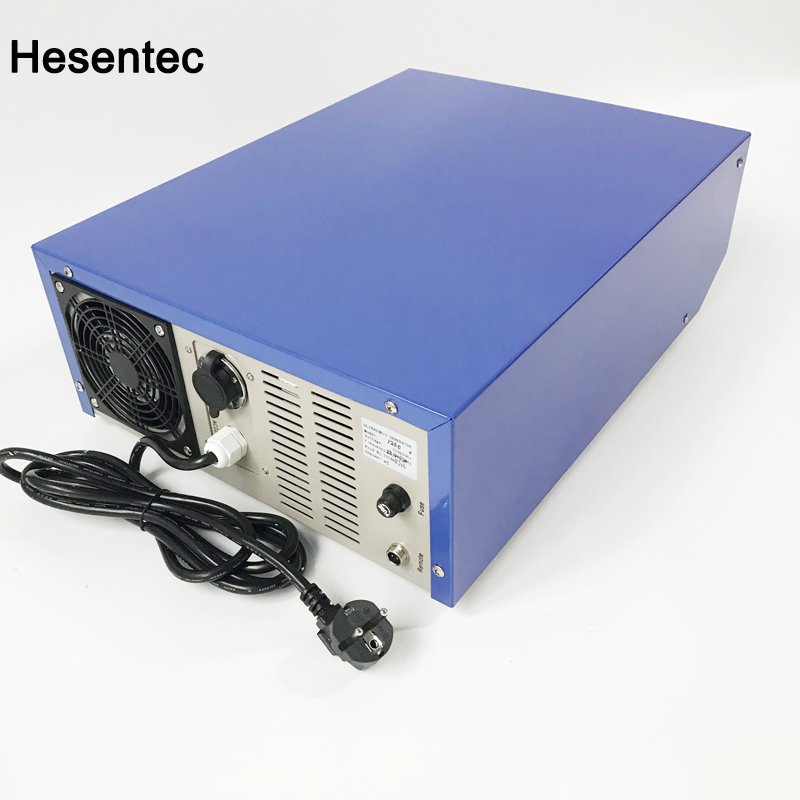

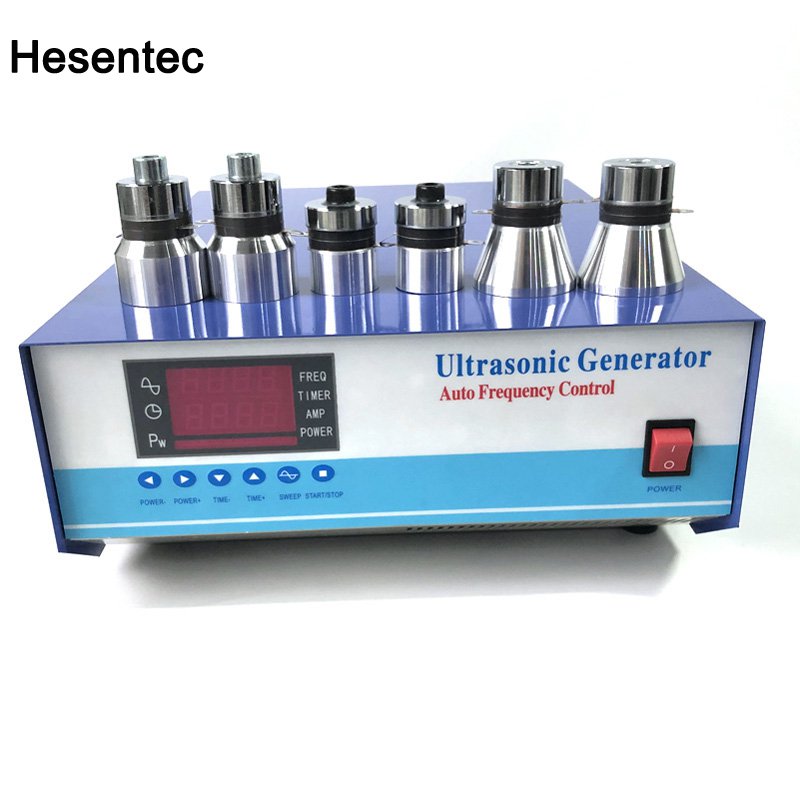

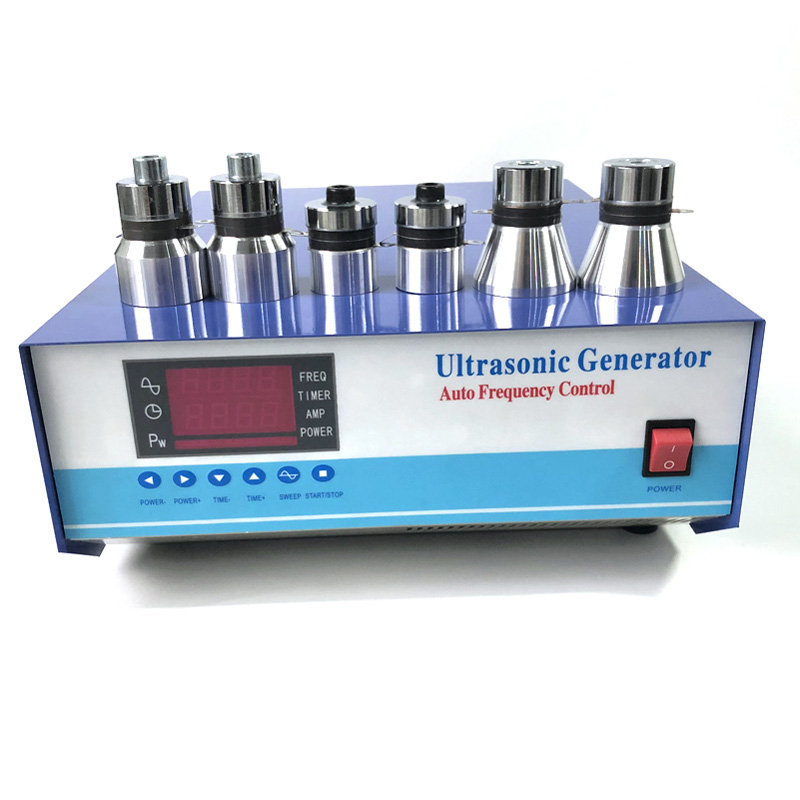

28/33/40K Multi Frequency Ultrasonic Generator For Cleaning
The company's self-developed ultrasonic cleaning equipment, ultrasonic generator frequency 20KHZ ~ 42KHZ stepless adjustable, precision to 0.1KHZ continuously adjustable, can make the output match state, work efficiency is higher; can improve the performance of similar products by 50%, Extend the life of the transducer by more than double.
Ultrasonic generator function:
1. Full touch humanized button control, debugging operation is convenient and fast.
2. Microcomputer control and digital frequency synthesis technology, automatic frequency tracking adjustment;
3. Design the timing system, the working hours are digital and adjustable;
4. Digital display ultrasonic power, continuous adjustable, more flexible and convenient to use;
5. With sweep function, digital adjustment of sweep frequency and sweep width, effectively protect steel plate;
6. Set the PLC remote control interface to facilitate connection with other control devices;
|
Type |
Power(W) |
Frequency (KHz) |
Transducer numbers |
Size |
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE
AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE
All of machine are available for opening remote control function to connect with your own PLC system |
|
HS-QXDY-300W |
300W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
3-6 |
300x360x150 |
|
HS-QXDY-600W |
600W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
6-12 |
300x360x150 |
|
HS-QXDY-900W |
900W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
9-18 |
300x360x150 |
|
HS-QXDY-1000W |
1000W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
10-20 |
300x360x150 |
|
HS-QXDY-1200W |
1200W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
12-24 |
300x360x150 |
|
HS-QXDY-1500W |
1500W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
15-30 |
300x360x150 |
|
HS-QXDY-1800W |
1800W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
18-36 |
300x360x150 |
|
HS-QXDY-2000W |
2000W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
20-40 |
300x360x150 |
|
HS-QXDY-2400W |
2400W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
24-48 |
300x360x150 |
|
HS-QXDY-3000W |
3000W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
50-60 |
300x360x150 |
|
High Frequency |
300W-1200W |
54KHZ,60KHZ,68KHZ,70KHZ,80KHZ,100KHZ,120KHZ,135KHZ |
|
High Frequency |
100W-300W |
175-200KHZ |
|
Above ultrasonic generator 110V-120V or 220V-240V are available,contact with us during your order with detail request |
|
Type |
Power(W) |
Frequency (KHz) |
Size |
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE
AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE
All of machine are available for opening remote control function to connect with your own PLC system |
|
HS-SPDY-38/80 |
300W-1800W |
38khz/80khz |
300x360x150 |
|
HS-SPDY-40/100 |
300W-1800W |
40khz/100khz |
300x360x150 |
|
HS-TPDY-28/83/130 |
300W-1200W |
28khz/83khz/130khz |
300x360x150 |
|
HS-TPDY-25/45/80 |
300W-1200W |
25khz/45khz/80khz |
300x360x150 |
|
HS-TPDY-33/89/135 |
300W-1200W |
33khz/89khz/135khz |
300x360x150 |
|
HS-TPDY-28/41/123 |
300W-1200W |
28khz/41khz123khz |
300x360x150 |
|
HS-TPDY-40/80/120 |
300W-1200W |
40khz/80khz/120khz |
300x360x150 |
|
HS-FPDY-28/60/70/84 |
300W-1200W |
28khz/60khz/70khz/84khz |
300x360x150 |
|
HS--FPDY-40/77/100/170 |
300W-1200W |
40khz/77khz/100khz/170khz |
300x360x150 |
|
Above ultrasonic generator 110V-120V or 220V-240V are available,contact with us during your order with detail request |
