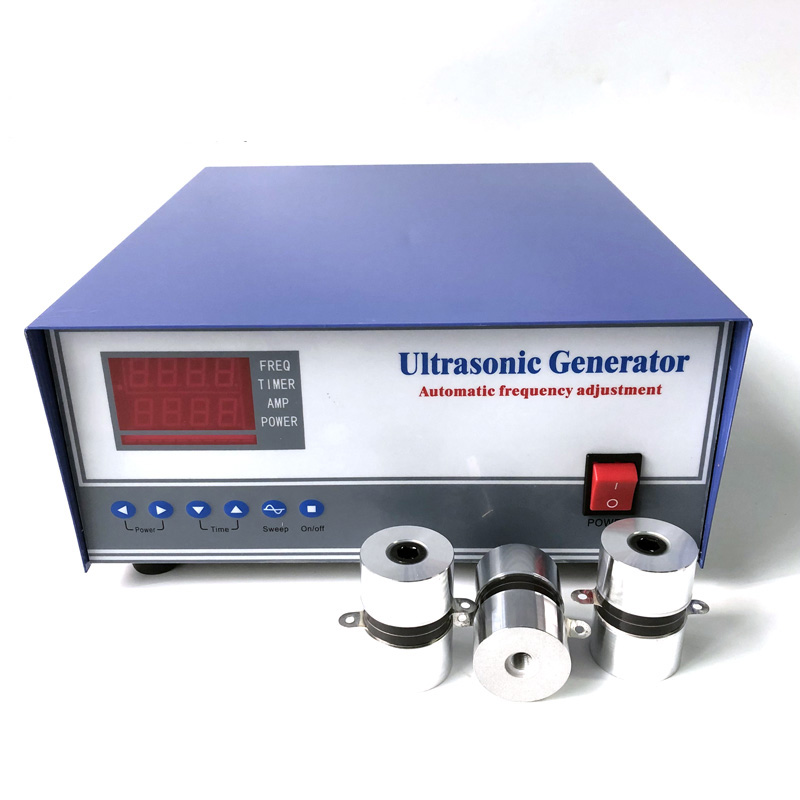

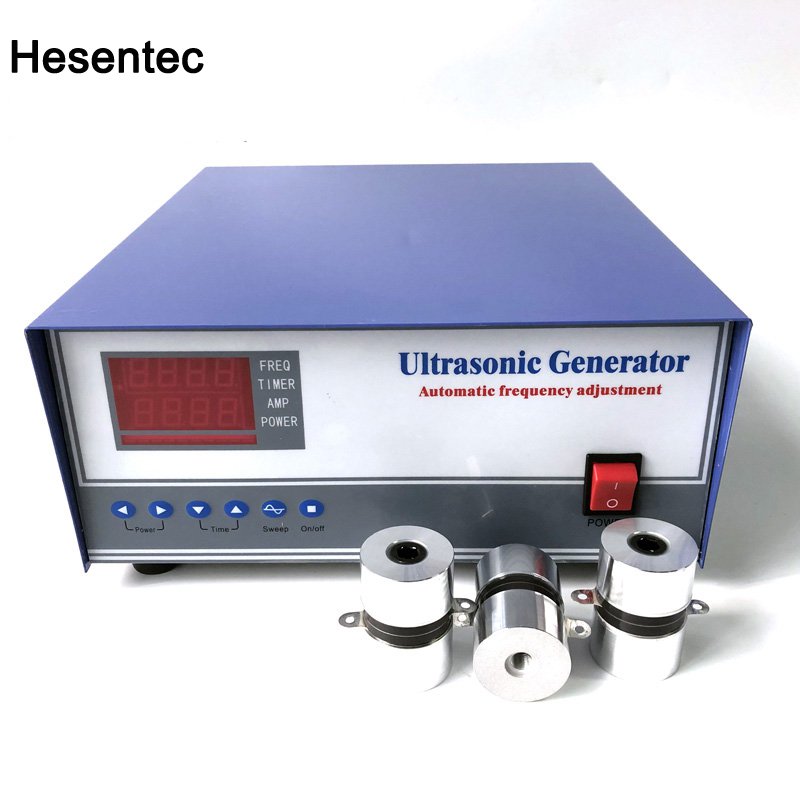

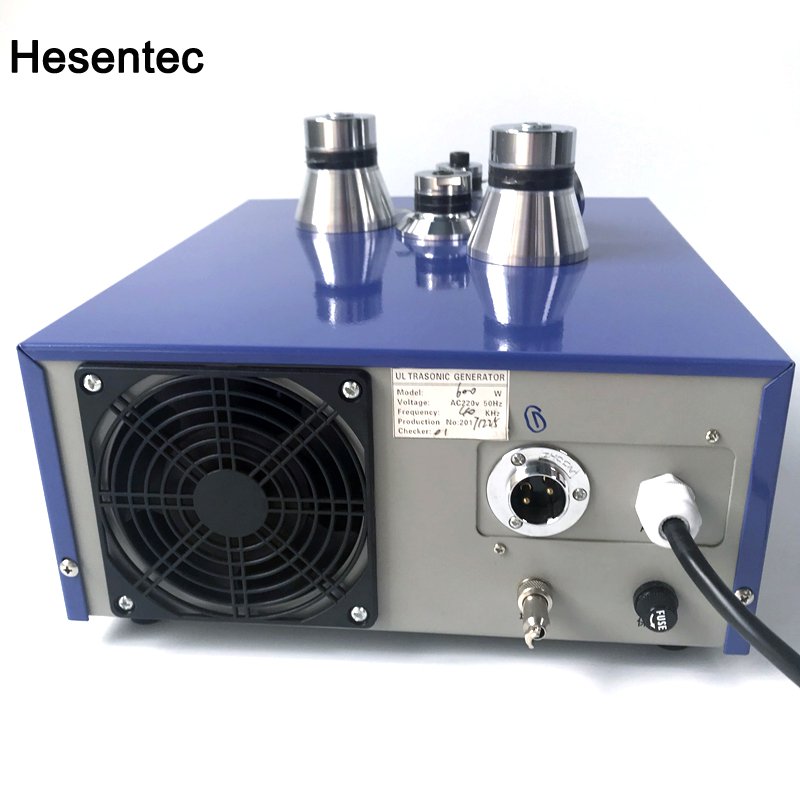

  • Hesen Ultrasonic Generator Adjustable Frequency 20K/28K/33K/40KHz

Hesen Ultrasonic Generator Adjustable Frequency 20K/28K/33K/40K

Hesen Ultrasonic Generator Adjustable Frequency 20K/28K/33K/40K Introduction

Hesen Ultrasonic Generator Adjustable Frequency 20K/28K/33K/40K

The ultrasonic generator adopts the world's leading structure of the oscillating circuit, which increases the output power by more than 10% compared with the self-excited oscillating circuit structure. The ultrasonic amplifying circuit adopts a linear amplifying circuit and a switching power supply circuit.
Advantages of the switching power supply circuit: The conversion efficiency is high, so the high-power ultrasonic power supply adopts this form.
Advantages of linear power circuits: Circuit matching is not strictly required, allowing the operating frequency to change continuously and rapidly.
Main performance characteristics of ultrasonic generator (ultrasonic power supply):
The power and frequency are steplessly adjustable, so that the output matching effect is achieved and the resonance work efficiency is higher. Using advanced microcomputer control technology and a new circuit design concept, a new generation of multi-function ultrasonic cleaning machine power source is newly introduced.

Type Power(W) Frequency (KHz) Transducer numbers Size
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE
AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE
All of machine are available for opening remote control function to connect with your own PLC system
HS-QXDY-300W 300W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 3-6 300x360x150
HS-QXDY-600W 600W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 6-12 300x360x150
HS-QXDY-900W 900W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 9-18 300x360x150
HS-QXDY-1000W 1000W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 10-20 300x360x150
HS-QXDY-1200W 1200W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 12-24 300x360x150
HS-QXDY-1500W 1500W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 15-30 300x360x150
HS-QXDY-1800W 1800W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 18-36 300x360x150
HS-QXDY-2000W 2000W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 20-40 300x360x150
HS-QXDY-2400W 2400W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 24-48 300x360x150
HS-QXDY-3000W 3000W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 50-60 300x360x150
High Frequency 300W-1200W 54KHZ,60KHZ,68KHZ,70KHZ,80KHZ,100KHZ,120KHZ,135KHZ
High Frequency 100W-300W 175-200KHZ
Above ultrasonic generator 110V-120V or 220V-240V are available,contact with us during your order with detail request

Hesen Ultrasonic Generator Adjustable Frequency 20K/28K/33K/40K
Hesen Ultrasonic Generator Adjustable Frequency 20K/28K/33K/40K
