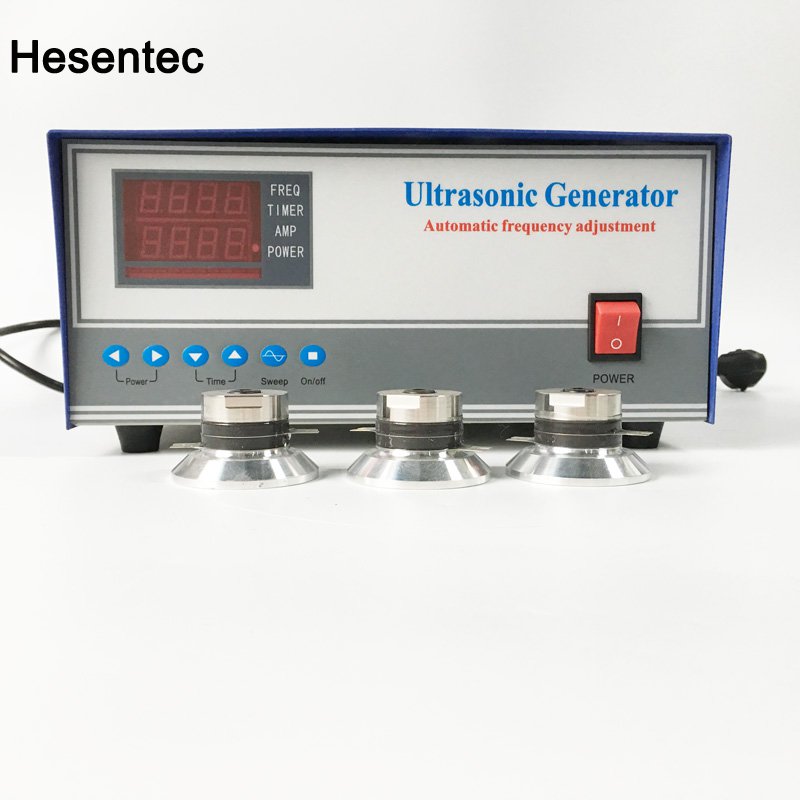

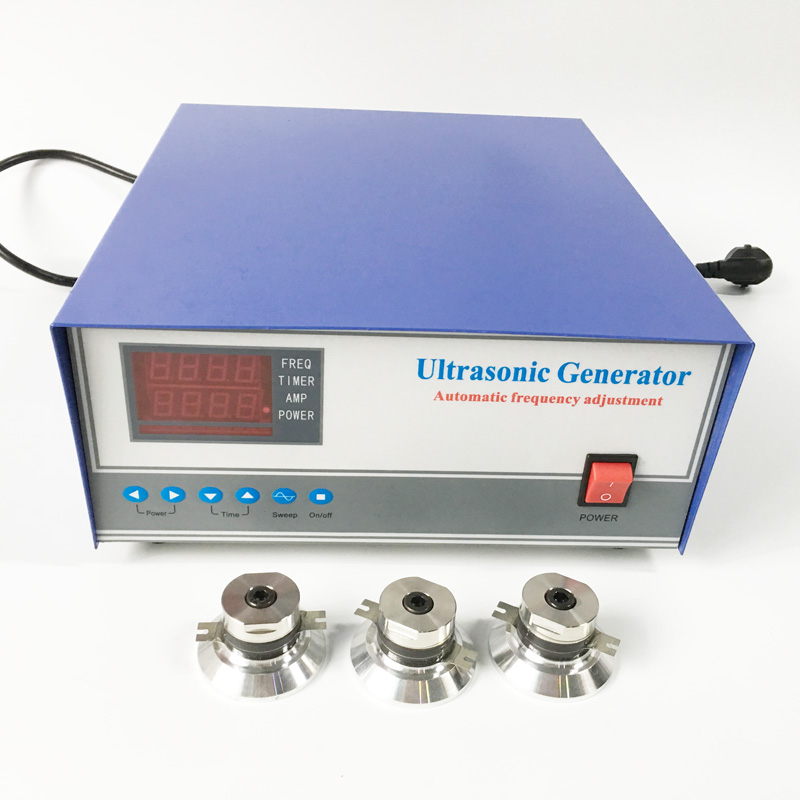

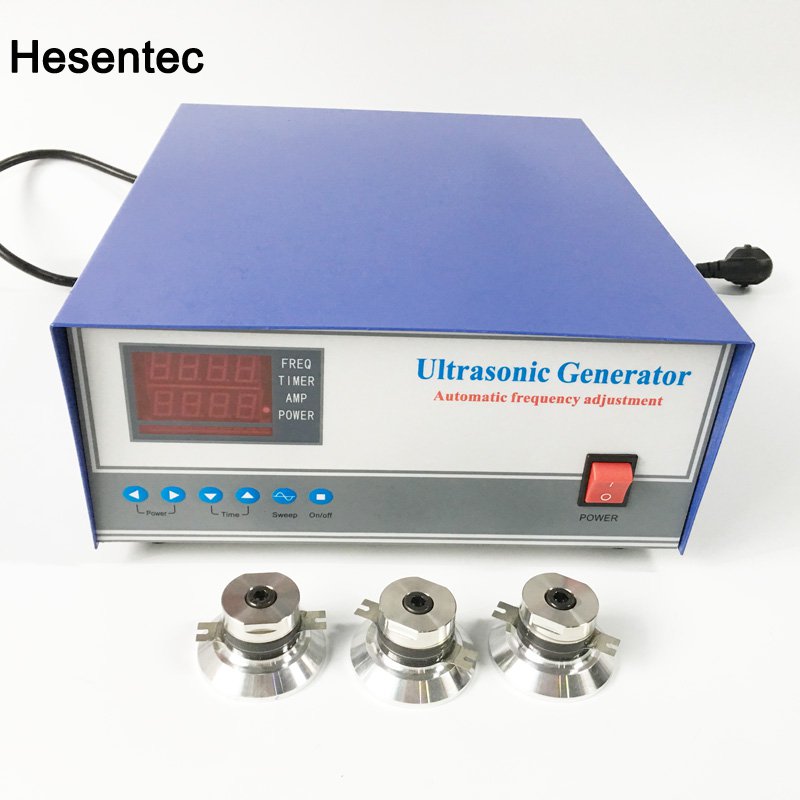

28KHz/40KHz 600W High Quality Cleaning Ultrasonic Generator

28KHz/40KHz 600W High Quality Cleaning Ultrasonic Generator Introduction

28KHz/40KHz 600W High Quality Cleaning Ultrasonic Generator

28khz/40khz ultrasound waveform generator for Hardware, spare parts, medical and industrial cleaning

Ultrasound generator is a kind of device which converts electric energy into mechanical energy and provides signals to the ultrasonic transducer. It plays a decisive role in the cleaning effect of the ultrasonic cleaning machine.
Product characteristics and advantages:
Frequency sweeping function: advanced frequency sweeping circuit is adopted. It can automatically adjust the resonant frequency of output and inductance, transducer, so that the cleaning equipment will not be affected by the changes of temperature, humidity, water depth, aging of transducer and service time. This function can keep the cleaning effect at the highest level. If the output frequency of the ultrasonic generator does not match the frequency of the transducer, it will not only affect the effect, but also damage the equipment when the deviation is large. Therefore, the frequency sweeping technology is used to make the output frequency of the ultrasonic generator consistent with the frequency of the transducer, so as to ensure the stable and reliable operation of the cleaning equipment. This is what many manufacturers of ultrasonic equipment using fixed frequency technology do not have in the market.
All IGBT power output components are imported devices, which have the advantages of small size, high power and fast response.
Unique anti-corrosion technology treatment, even in the harsh strong acid-base working environment, can also be long-term stable and reliable operation.
The latest excitation control circuit makes the ultrasonic cavitation density greatly improved, the cleaning effect is more meticulous and the cleanliness is higher.
The output current is sinusoidal wave, which can prolong the service life of transducer and generator itself.
Wide range frequency sweep adjustment: from 10HZ - 2KHZ adjustable, so that the cleaning effect is better.
The output current ripple is small, the cleaning effect is more stable, and the transducer can be well protected from damage.
The output power is adjustable.
Output current display, overtemperature protection, can intuitively understand its working state.
It has over current and output short circuit protection.
technical parameter
Input voltage: ~220V
The maximum temperature of the whole machine is less than 75 C (ambient temperature is 25 C).
Working Temperature: - 25 - 60 C
Output frequency: 20KHZ-120KHz
Frequency deviation <0.5%

Type	Power(W)	Frequency (KHz)	Transducer numbers	Size
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE All of machine are available for opening remote control function to connect with your own PLC system
HS-QXDY-300W	300W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	3-6	300x360x150
HS-QXDY-600W	600W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	6-12	300x360x150
HS-QXDY-900W	900W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	9-18	300x360x150
HS-QXDY-1000W	1000W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	10-20	300x360x150
HS-QXDY-1200W	1200W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	12-24	300x360x150
HS-QXDY-1500W	1500W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	15-30	300x360x150
HS-QXDY-1800W	1800W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	18-36	300x360x150
HS-QXDY-2000W	2000W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	20-40	300x360x150
HS-QXDY-2400W	2400W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	24-48	300x360x150
HS-QXDY-3000W	3000W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	50-60	300x360x150
High Frequency	300W-1200W	54KHZ,60KHZ,68KHZ,70KHZ,80KHZ,100KHZ,120KHZ,135KHZ
High Frequency	100W-300W	175-200KHZ
Above ultrasonic generator 110V-120V or 220V-240V are available,contact with us during your order with detail request
