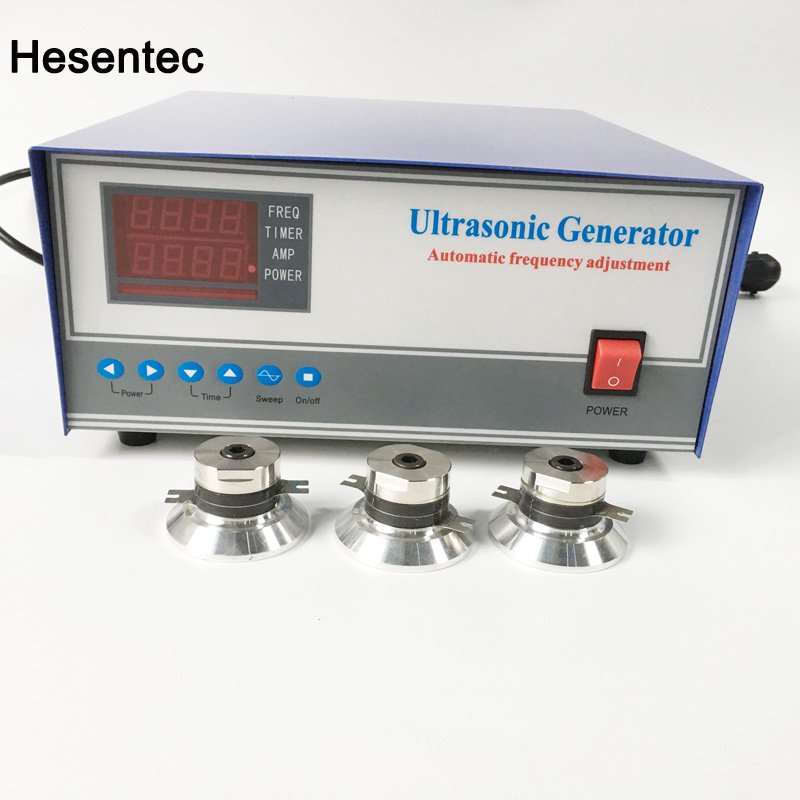

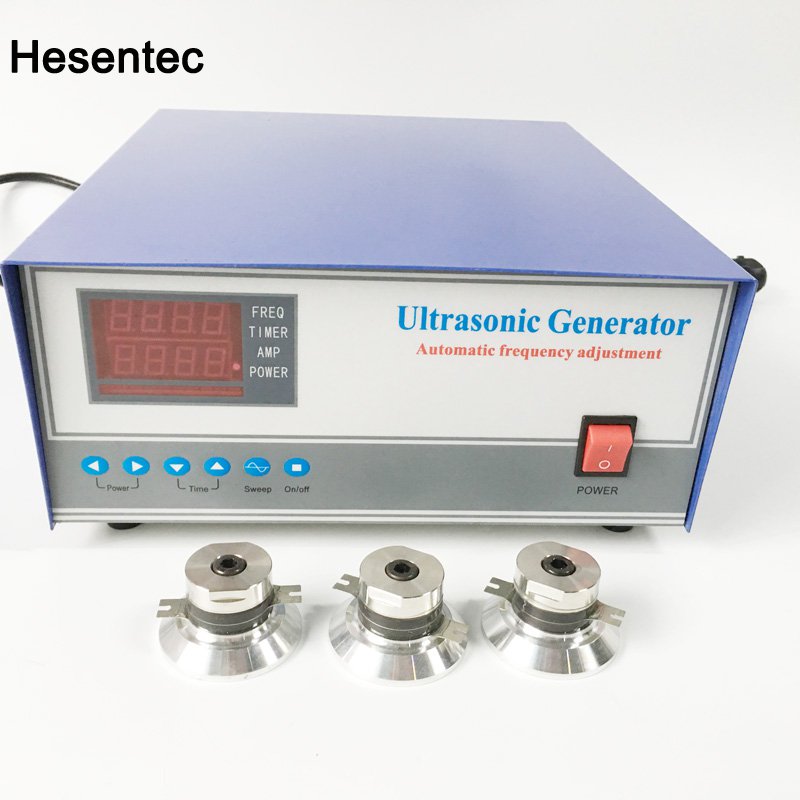

28Khz/300W 110V or 220V Cleaning Ultrasonic Generator
40khz/120khz kemo ultrasonic generator overload with ultrasonic generator 1000W/3000W
Product characteristics: 1. Develop the unique advanced ultrasonic generation technology independently.
2. Using digital control technology, perfect circuit design, stable power output.
3. Frequency can be adjusted.
4. Ultrasound power: 200W-2400W, 2500W-10000W (to be customized)
5. Comprehensive protection (over-current protection, over-heat protection, over-voltage protection, anti-corrosion and dust protection, etc.) with long service life.
6. It has the functions of time display control, power display adjustable, frequency adjustable and so on.
7. Generators with different frequencies, power and functions can be designed and manufactured according to customers'requirements.
|
Type |
Power(W) |
Frequency (KHz) |
Transducer numbers |
Size |
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE
AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE
All of machine are available for opening remote control function to connect with your own PLC system |
|
HS-QXDY-300W |
300W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
3-6 |
300x360x150 |
|
HS-QXDY-600W |
600W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
6-12 |
300x360x150 |
|
HS-QXDY-900W |
900W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
9-18 |
300x360x150 |
|
HS-QXDY-1000W |
1000W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
10-20 |
300x360x150 |
|
HS-QXDY-1200W |
1200W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
12-24 |
300x360x150 |
|
HS-QXDY-1500W |
1500W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
15-30 |
300x360x150 |
|
HS-QXDY-1800W |
1800W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
18-36 |
300x360x150 |
|
HS-QXDY-2000W |
2000W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
20-40 |
300x360x150 |
|
HS-QXDY-2400W |
2400W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
24-48 |
300x360x150 |
|
HS-QXDY-3000W |
3000W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
50-60 |
300x360x150 |
|
High Frequency |
300W-1200W |
54KHZ,60KHZ,68KHZ,70KHZ,80KHZ,100KHZ,120KHZ,135KHZ |
|
High Frequency |
100W-300W |
175-200KHZ |
|
Above ultrasonic generator 110V-120V or 220V-240V are available,contact with us during your order with detail request |
