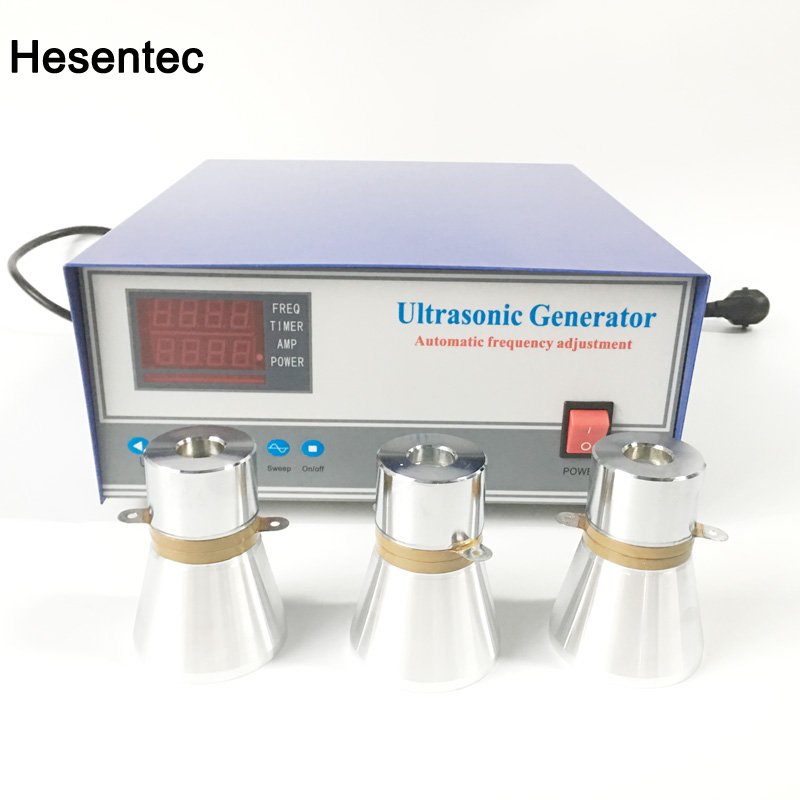

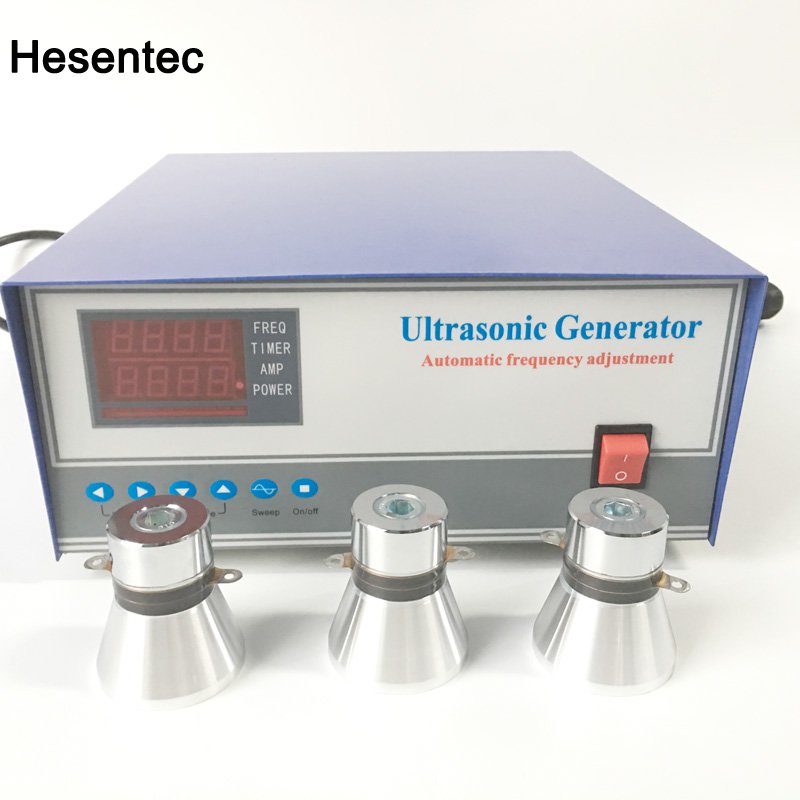

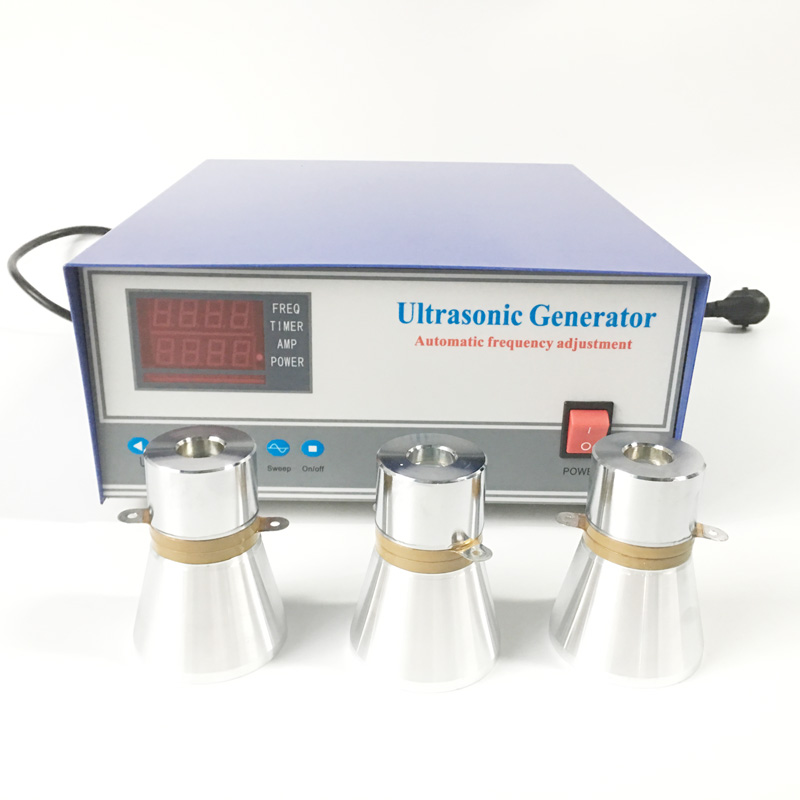

28KHz/40KHz Hesen Multi Frequency Cleaning Ultrasonic Generator
Main describe
It can be divided into frequency-adjustable ultrasonic generator, 100W/300W ultrasonic generator, low-power ultrasonic generator, high-frequency ultrasonic generator, large-function ultrasonic generator, digital display ultrasonic generator.
Frequency adjustable
A new type of ultrasonic generator with adjustable power from "0" ~3000 watts and adjustable frequency from 20KHZ~40KHZ. The ultrasonic generator can be shared with different transducers.
Reasonable structure, moistureproof, anti impact, anti burning tube, simple operation. Never used an ultrasonic cleaning machine, the frequency and power do not understand the people, as long as a little electrical knowledge of the people will look at it.
Multi Frequency Generator
With the development of modern electronic technology, especially microprocessor (uP) and signal processor (DSP), the function of ultrasonic generator is more and more powerful, but no matter how it changes, its core function should be as follows, but each part is different in technology. The ultrasonic generator produces a signal of a specific frequency, which can be either a sinusoidal signal or a pulse signal.
The ultrasonic generator
It is the frequency of ultrasonic transducer. Usually the ultrasonic frequency used in ultrasonic equipment is 25KHz, 28KHz, 35KHz, 40KHz; 100KHz.
It is believed that the use area will gradually expand. A more perfect ultrasonic generator should also have feedback links, mainly providing two aspects of feedback signals:
The first is to provide the output power signal. We know that when the power supply (voltage) of the ultrasonic generator changes, the output power of the ultrasonic generator will also change. The power amplifier is adjusted by the power feedback signal, so that the power amplification is stable.
The second is to provide a frequency tracking signal. When the ultrasonic transducer works at the resonant frequency point, its efficiency is the highest, the operation is the most stable, and the resonant frequency point of the ultrasonic transducer will change due to assembly reasons and working aging, of course, the frequency of this change is only drift, the change is not very big, the frequency tracking signal can be. Control signal ultrasonic generator, so that the signal ultrasonic generator frequency within a certain range of tracking ultrasonic transducer resonance frequency point, let the ultrasonic generator work in the best state.
1000W-3000W Multi Frequency Ultrasonic Generator Used In Cleaning Parts
|
Type |
Power(W) |
Frequency (KHz) |
Transducer numbers |
Size |
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE
AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE
All of machine are available for opening remote control function to connect with your own PLC system |
|
HS-QXDY-300W |
300W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
3-6 |
300x360x150 |
|
HS-QXDY-600W |
600W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
6-12 |
300x360x150 |
|
HS-QXDY-900W |
900W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
9-18 |
300x360x150 |
|
HS-QXDY-1000W |
1000W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
10-20 |
300x360x150 |
|
HS-QXDY-1200W |
1200W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
12-24 |
300x360x150 |
|
HS-QXDY-1500W |
1500W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
15-30 |
300x360x150 |
|
HS-QXDY-1800W |
1800W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
18-36 |
300x360x150 |
|
HS-QXDY-2000W |
2000W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
20-40 |
300x360x150 |
|
HS-QXDY-2400W |
2400W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
24-48 |
300x360x150 |
|
HS-QXDY-3000W |
3000W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
50-60 |
300x360x150 |
|
High Frequency |
300W-1200W |
54KHZ,60KHZ,68KHZ,70KHZ,80KHZ,100KHZ,120KHZ,135KHZ |
|
High Frequency |
100W-300W |
175-200KHZ |
|
Above ultrasonic generator 110V-120V or 220V-240V are available,contact with us during your order with detail request |
