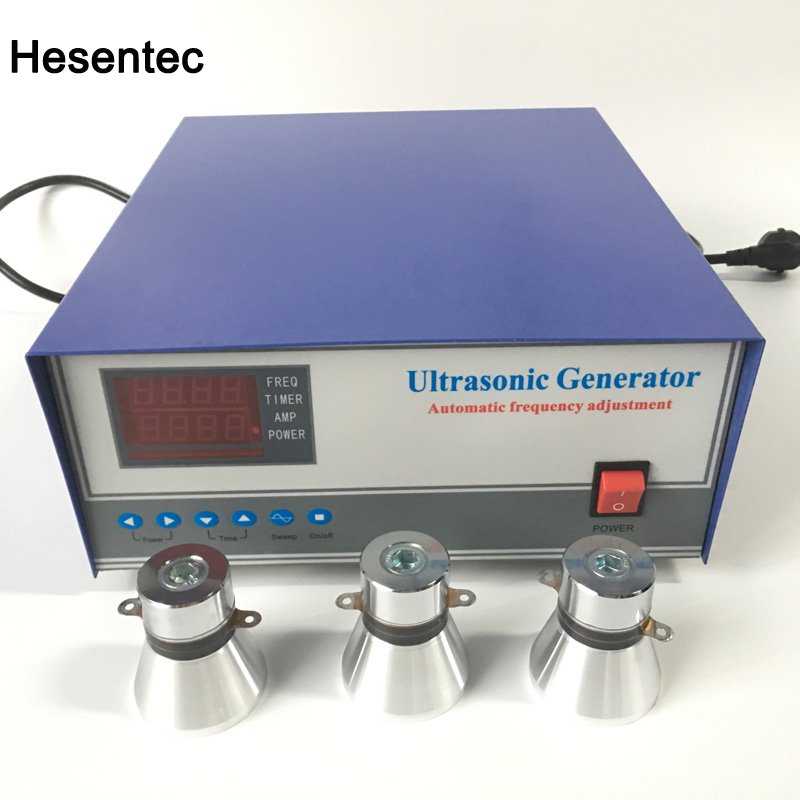

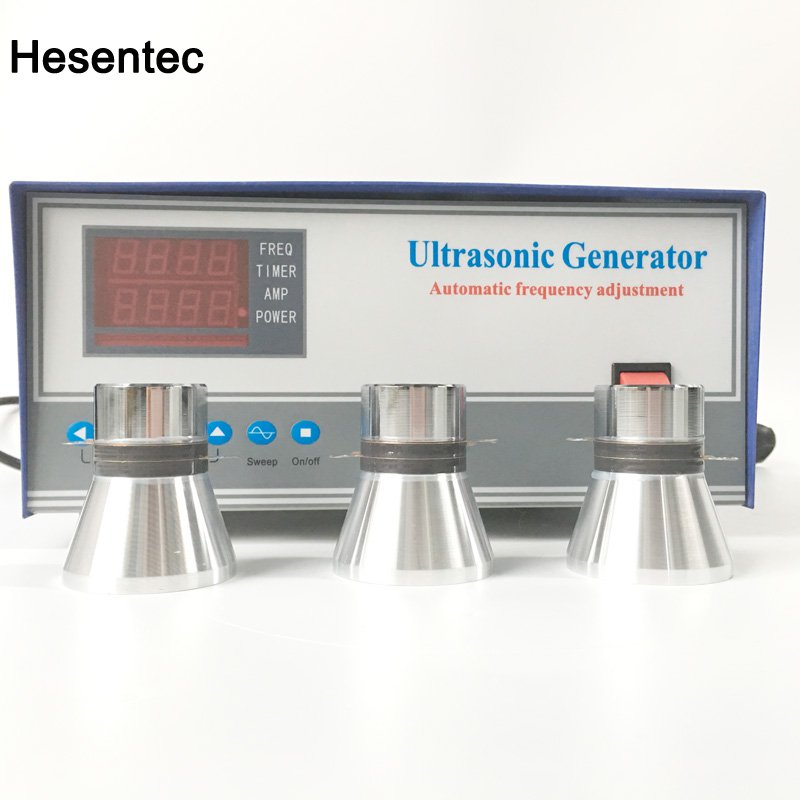

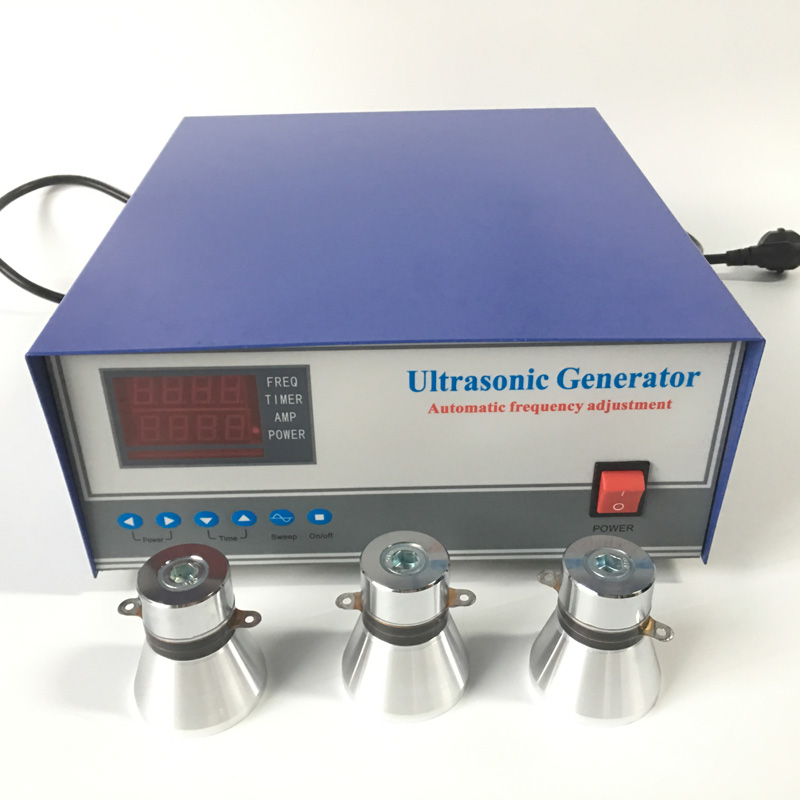

40KHz/80KHz/120KHz 1200W Multi Frequency Ultrasonic Generator

40KHz/80KHz/120KHz 1200W Multi Frequency Ultrasonic Generator

Multi frequency ultrasonic cleaner generator also called ultrasonic power supply, electronic box and ultrasonic controller. It is an important part

Multi frequency ultrasonic system.
LED display( indicating current,frequency and cleaning time and ultrasonic wave data)
Power is adjustable on between 0-100%
Short circuiting protection, leakage protection and over load protection
Additional EMC components can reduce electromagnetic interference and enhance stability and reliability of multiple ultrasonic generators operating in parallel
Leading extra excitated high frequency line(68-200Khz) to present more uniform and powerful ultrasonic power.
Metal case is corrosion resistance.
Internationally leading high frequency semi-conductor driving to ensure balanced and stable power.
sweep frequency with range ±1Khz to fulfill thorough removal and cleaning.
Can control generator with 3 frequency at most and can also control each transducer working time at fixed time.



Multi Frequency Ultrasonic Cleaner Generator For Cleaning Parts

Type	Power(W)	Frequency (KHz)	Transducer numbers	Size
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE All of machine are available for opening remote control function to connect with your own PLC system
HS-QXDY-300W	300W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	3-6	300x360x150
HS-QXDY-600W	600W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	6-12	300x360x150
HS-QXDY-900W	900W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	9-18	300x360x150
HS-QXDY-1000W	1000W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	10-20	300x360x150
HS-QXDY-1200W	1200W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	12-24	300x360x150
HS-QXDY-1500W	1500W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	15-30	300x360x150
HS-QXDY-1800W	1800W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	18-36	300x360x150
HS-QXDY-2000W	2000W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	20-40	300x360x150
HS-QXDY-2400W	2400W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	24-48	300x360x150
HS-QXDY-3000W	3000W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	50-60	300x360x150
High Frequency	300W-1200W	54KHZ,60KHZ,68KHZ,70KHZ,80KHZ,100KHZ,120KHZ,135KHZ
High Frequency	100W-300W	175-200KHZ
Above ultrasonic generator 110V-120V or 220V-240V are available,contact with us during your order with detail request
