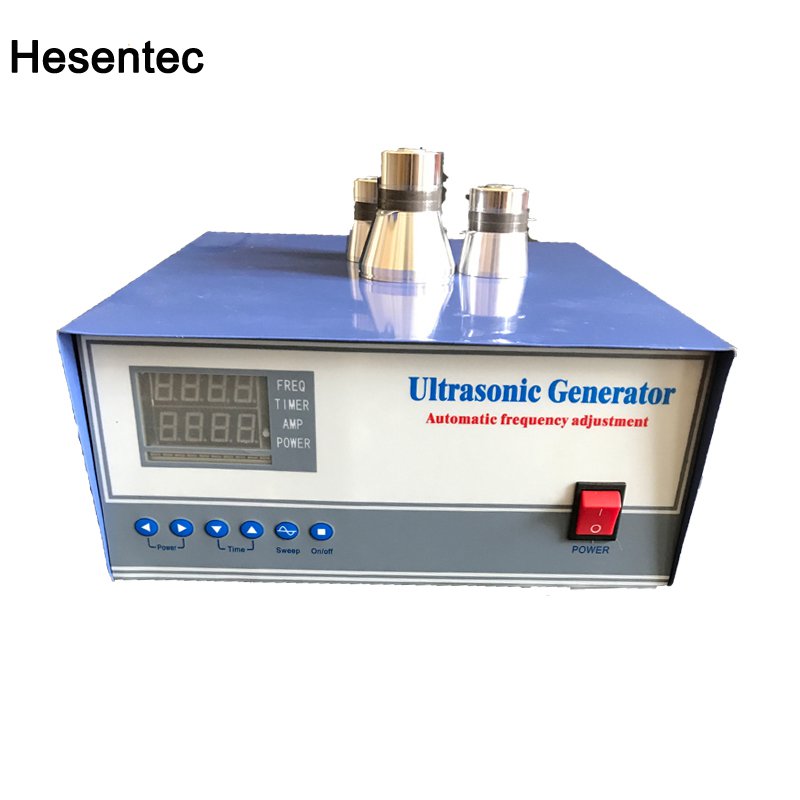

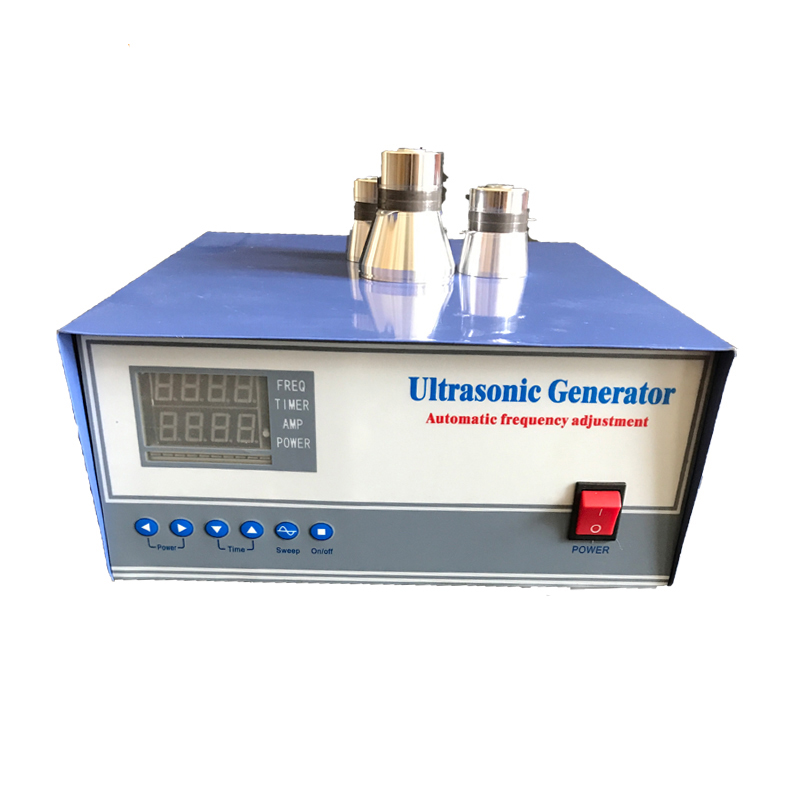

28khz ultrasonic generator for dishwasher

28khz ultrasonic generator for dishwasher Introduction

Ultrasonic Generators which adopts advanced high speed single chip microcomputer control technology and possess new circuit design theory,it is a new generation of multi-functional ultrasonic cleaning power.
The control box adopts high speed single chip microcomputer controlled digital frequency synthesis technology with half bridge circuit drive which is stable and low power loss.
Digital ultrasonic power is adjustable. Thus it is more flexible and more efficient.
Its complete protection function which include overheat alarm and over-current alarm make the work become more reliable.
Its accurate timer which calculate results has four numbers, guarantee the quality of your work.
The screen can display status of work mode,frequency or current according to your requirement.

The effect of ultrasonic cleaning is not directly proportional to (power * cleaning time). Sometimes it takes a small amount of power and takes a long time to remove dirt. If power reaches a certain value, dirt will be removed quickly. If the power is too high, the cavitation strength will be increased greatly, the cleaning effect is improved, but the more precise parts are also caused by the corrosion point, which is not worth the loss. Moreover, the cavitation at the bottom of the cylinder of the cleaning cylinder is serious and the water point corrosion is increased. Water soluble cleaning solution is easy to be corroded by water point. If the surface of the vibrating plate has been damaged, the corrosion is more serious under the strong power, so the ultrasonic power should be selected according to the actual use.

Type Power(W) Frequency (KHz) Transducer numbers Size
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE
AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE
All of machine are available for opening remote control function to connect with your own PLC system
HS-QXDY-300W 300W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable
3-6 300x360x150
HS-QXDY-600W 600W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable
6-12 300x360x150
HS-QXDY-900W 900W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable
9-18 300x360x150
HS-QXDY-1000W 1000W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable
10-20 300x360x150
HS-QXDY-1200W 1200W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable
12-24 300x360x150
HS-QXDY-1500W 1500W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable
15-30 300x360x150
HS-QXDY-1800W 1800W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable
18-36 300x360x150
HS-QXDY-2000W 2000W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable
20-40 300x360x150
HS-QXDY-2400W 2400W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable
24-48 300x360x150
HS-QXDY-3000W 3000W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable
50-60 300x360x150
High Frequency 300W-1200W 54KHZ,60KHZ,68KHZ,70KHZ,80KHZ,100KHZ,120KHZ,135KHZ
High Frequency 100W-300W 175-200KHZ
Above ultrasonic generator 110V-120V or 220V-240V are available,contact with us during your order with detail request
28khz ultrasonic generator for dishwasher
