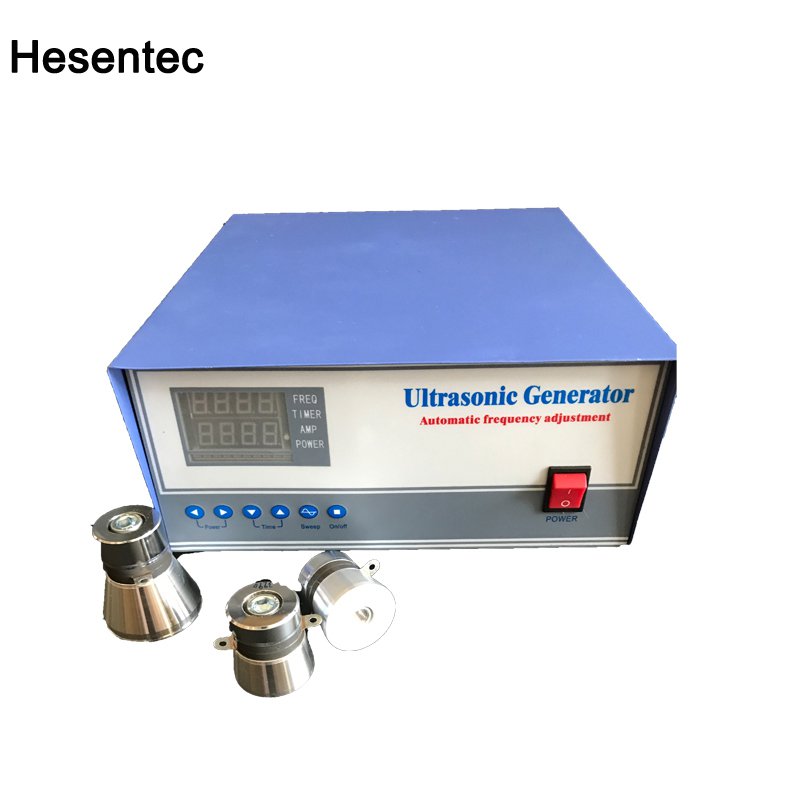

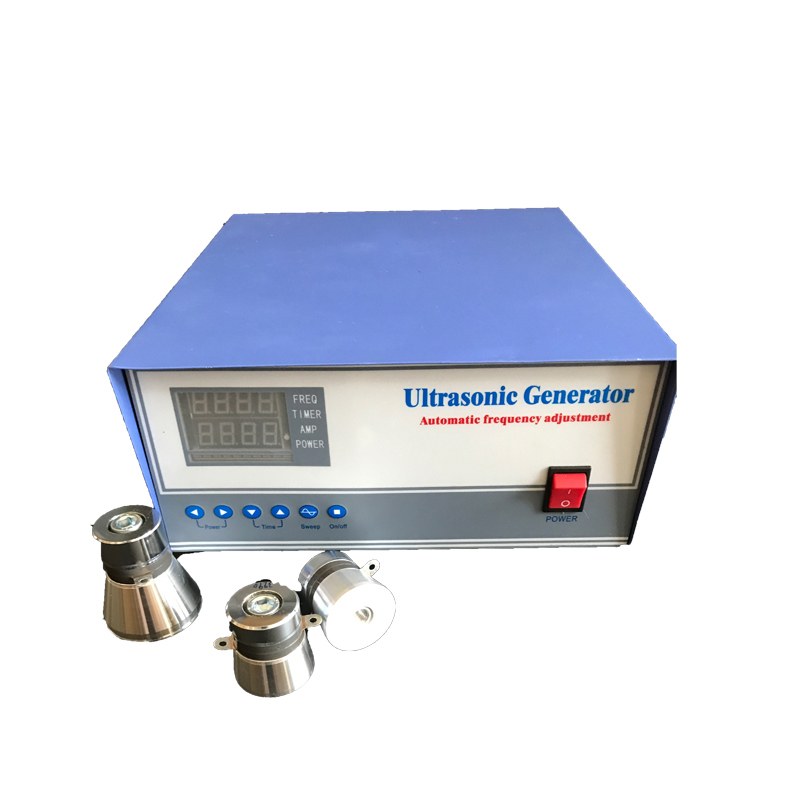

30khz ultrasonic generator dental

30khz ultrasonic generator dental Introduction

At low frequency, the time of pressure and tension of the liquid grows longer, so the time of the cavitation is long and the volume is long, and the impact force of the cavitation is proportional to the size of the cavitation bubble. So the lower the frequency, the stronger the cavitation.
The frequency of industrial cleaning is generally less than 60KHz, and the most used is between 20 and 40KHz. With the frequency of 20KHz, a relatively small number of cavitation bubbles can be obtained, but with large cavitation strength and noise, it can be used to clean the workpiece with high bonding strength between the surface of the large parts and the surface of the object. When the frequency of 40KHz is around the same sound pressure, the number of cavitation bubbles is large, but the cavitation intensity is low, the noise is small, and the penetration ability is strong. It is suitable for the workpiece with complex surface, blind hole, dirt and weak surface binding force.
Features:

It adopts international advanced figure pulse for driving; compared with traditional auto-excitation type control technology, it’s advantages like small in size, light in weight, powerful in power, stable and reliable in operation, continuous and adjustable in power and flexible in control have gained approval from many experts. Frequency scanning more ensured the machine can be at its best working state from the beginning to the end, which can express the potential of ultrasonic transducer to its maximum.
Frequency 28Khz - 130Khz adjustable
Power 1200W 0-100% adjustable
With timing function and PLC remote control
With over-current protection and output short-circuit protection

Type Power(W) Frequency (KHz) Transducer numbers Size
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE
AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE
All of machine are available for opening remote control function to connect with your own PLC system
HS-QXDY-300W 300W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable
3-6 300x360x150
HS-QXDY-600W 600W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable
6-12 300x360x150
HS-QXDY-900W 900W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable
9-18 300x360x150
HS-QXDY-1000W 1000W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable
10-20 300x360x150
HS-QXDY-1200W 1200W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable
12-24 300x360x150
HS-QXDY-1500W 1500W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable
15-30 300x360x150
HS-QXDY-1800W 1800W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable
18-36 300x360x150
HS-QXDY-2000W 2000W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable
20-40 300x360x150
HS-QXDY-2400W 2400W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable
24-48 300x360x150
HS-QXDY-3000W 3000W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable
50-60 300x360x150
High Frequency 300W-1200W 54KHZ,60KHZ,68KHZ,70KHZ,80KHZ,100KHZ,120KHZ,135KHZ
High Frequency 100W-300W 175-200KHZ
Above ultrasonic generator 110V-120V or 220V-240V are available,contact with us during your order with detail request
30khz ultrasonic generator dental
