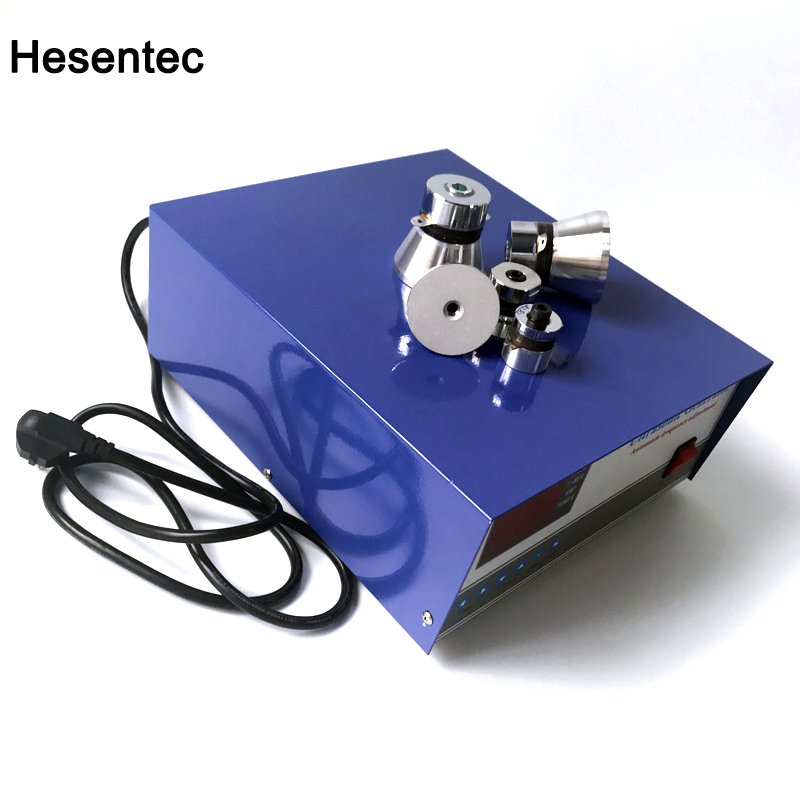

300W-3000W Digital Ultrasonic Piezoelectric Generator For Cleaner

The ultrasonic generator has the function of fine-tuning the frequency, the adjustment range is 2%, and the adjustment is slightly adjusted under different working conditions, so that the transducer is always working in the state, the conversion efficiency is achieved, and the effect can be achieved under different working conditions.

The ultrasonic generator has the function of power regulation, and the output power can be continuously adjusted from 10% to 100% to meet the requirements of various cleaning objects.

The ultrasonic generator has a frequency sweep function, and the ultrasonic frequency is reciprocally swept in a reasonable range during the cleaning process to drive the cleaning liquid to form a fine reflow, so that the workpiece dirt is quickly taken away from the workpiece surface while being ultrasonically peeled off, thereby improving the cleaning efficiency.

Type	Power(W)	Frequency (KHz)	Transducer numbers	Size
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE All of machine are available for opening remote control function to connect with your own PLC system
HS-QXDY-300W	300W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	3-6	300x360x150
HS-QXDY-600W	600W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	6-12	300x360x150
HS-QXDY-900W	900W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	9-18	300x360x150
HS-QXDY-1000W	1000W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	10-20	300x360x150
HS-QXDY-1200W	1200W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	12-24	300x360x150
HS-QXDY-1500W	1500W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	15-30	300x360x150
HS-QXDY-1800W	1800W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	18-36	300x360x150
HS-QXDY-2000W	2000W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	20-40	300x360x150
HS-QXDY-2400W	2400W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	24-48	300x360x150
HS-QXDY-3000W	3000W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	50-60	300x360x150
High Frequency	300W-1200W	54KHZ,60KHZ,68KHZ,70KHZ,80KHZ,100KHZ,120KHZ,135KHZ
High Frequency	100W-300W	175-200KHZ
Above ultrasonic generator 110V-120V or 220V-240V are available,contact with us during your order with detail request
