  • Ultrasonic Frequency Generator 20KHz-200KHz Ultrasonic Generator

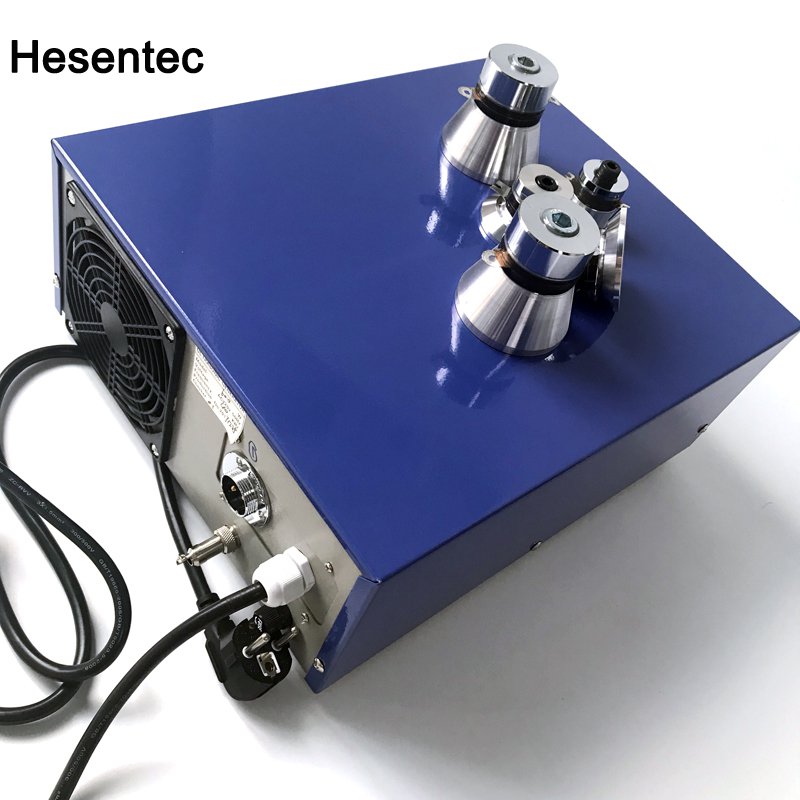

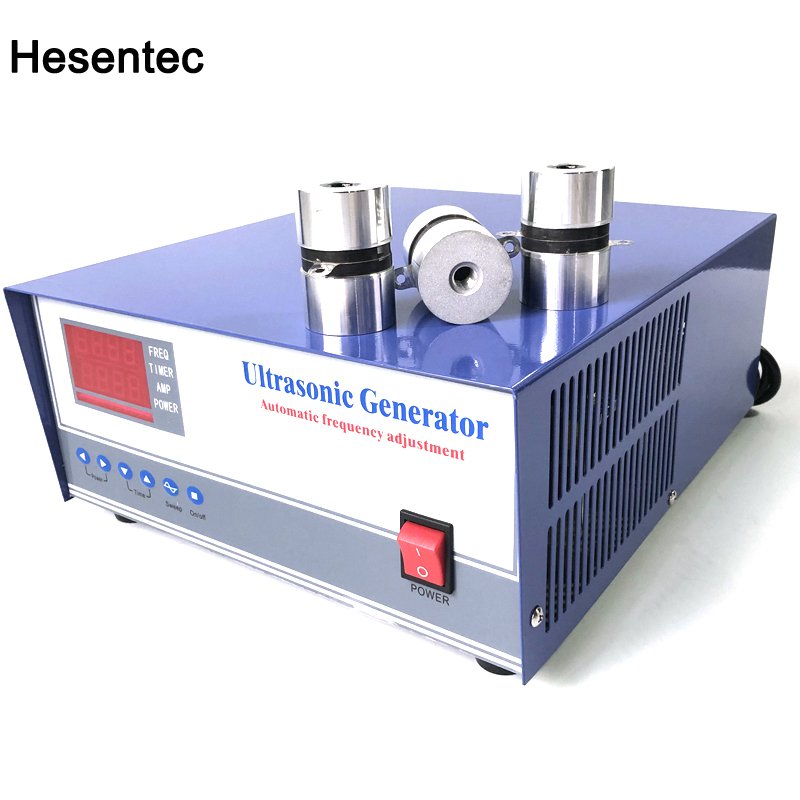

Ultrasonic Frequency Generator 20KHz-200KHz Ultrasonic Generator

Ultrasonic Frequency Generator 20KHz-200KHz Ultrasonic Generator Introduction

Ultrasonic Frequency Generator 20KHz-200KHz Ultrasonic Generator

The ultrasonic generator has a frequency sweep function. By sweeping the ultrasonic frequency within a reasonable range during the cleaning process, the cleaning liquid is driven to form a fine reflow, so that the workpiece dirt is quickly taken away from the workpiece surface while being ultrasonically peeled off, thereby improving the cleaning efficiency. . Original imported high-power tube drive, up to 95% power factor to ensure strong output power. For dirt with strong adhesion, it can be quickly removed. In the working state, the frequency chasing is realized in real time. Ensure that the generator can automatically track the frequency at any time when the transducer frequency changes due to changes in water temperature, number of workpieces, changes in cleaning agent, etc., to achieve the best working condition for matching the transducer frequency.
Cleaning effect: The ultrasonic cleaning density industry is the highest in the country, and the uniformity is the highest in the country, and the cleaning object has a dead angle.

Type Power(W) Frequency (KHz) Transducer numbers Size
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE
AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE
All of machine are available for opening remote control function to connect with your own PLC system
HS-QXDY-300W 300W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 3-6 300x360x150
HS-QXDY-600W 600W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 6-12 300x360x150
HS-QXDY-900W 900W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 9-18 300x360x150
HS-QXDY-1000W 1000W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 10-20 300x360x150
HS-QXDY-1200W 1200W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 12-24 300x360x150
HS-QXDY-1500W 1500W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 15-30 300x360x150
HS-QXDY-1800W 1800W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 18-36 300x360x150
HS-QXDY-2000W 2000W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 20-40 300x360x150
HS-QXDY-2400W 2400W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 24-48 300x360x150
HS-QXDY-3000W 3000W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 50-60 300x360x150
High Frequency 300W-1200W 54KHZ,60KHZ,68KHZ,70KHZ,80KHZ,100KHZ,120KHZ,135KHZ
High Frequency 100W-300W 175-200KHZ
Above ultrasonic generator 110V-120V or 220V-240V are available,contact with us during your order with detail request

Ultrasonic Frequency Generator 20KHz-200KHz Ultrasonic Generator
Ultrasonic Frequency Generator 20KHz-200KHz Ultrasonic Generator
