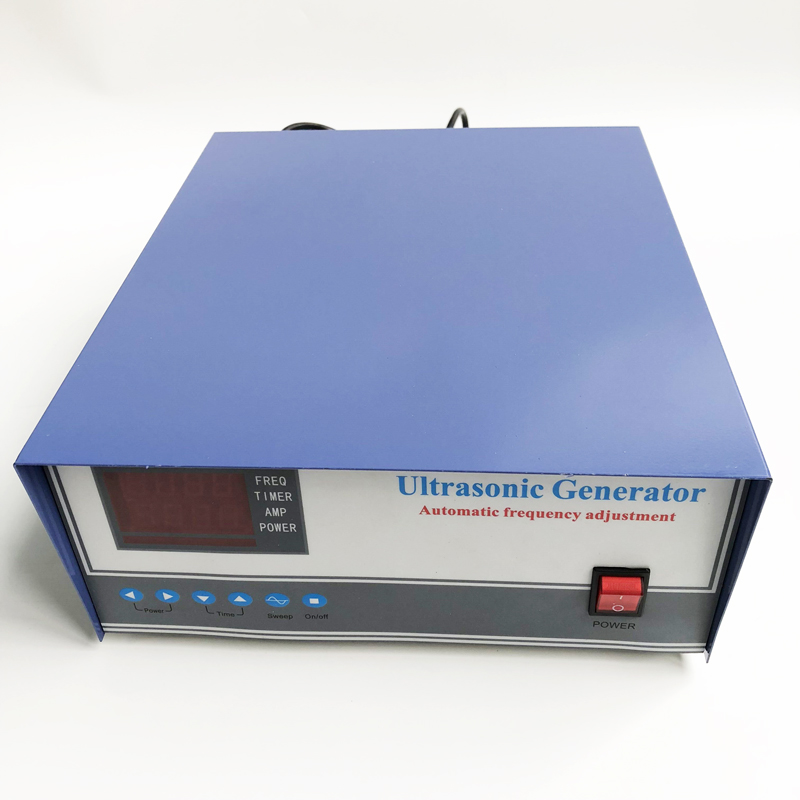

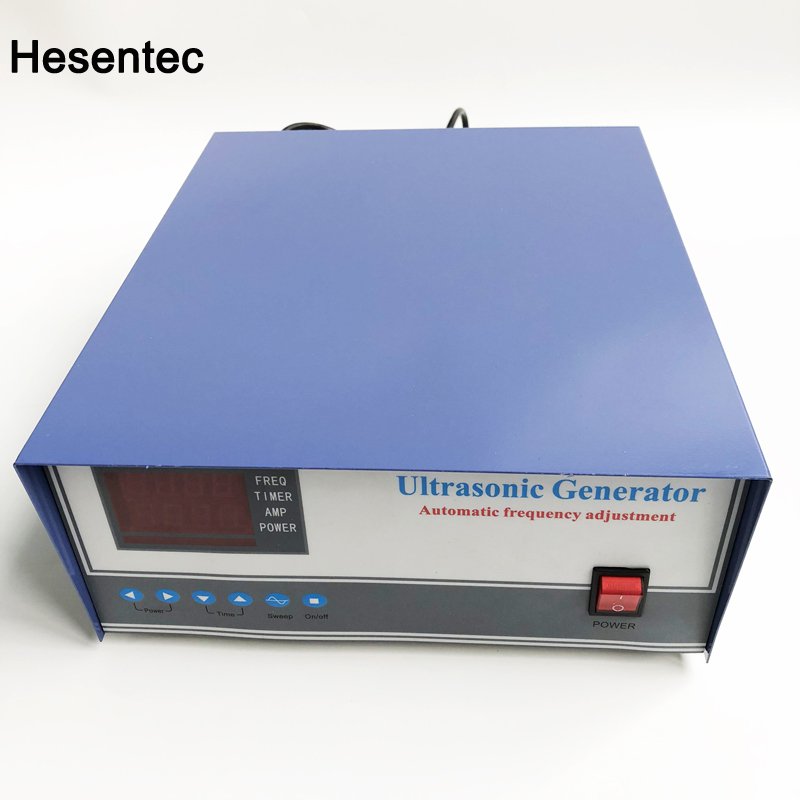

300W Digital Ultrasonic Generator For Ultrasonic Vibration Sensor
An automatic frequency tracking power ultrasonic generator, including a DC power supply (1), a pulse signal generating circuit (2), a switching power amplifier circuit (5) and a harmonic loop (6), is characterized by a A. resonant circuit (6) consisting of a matching transformer B and a transducer G with impedance conversion, electrical energy transmission and the three heavy distribution sense of distribution; B. The power sampling signal output by the resonant circuit (6) is connected to the phase comparison circuit (7) and the pulse signal generating circuit (2), which is converted to a mechanical oscillation of the same frequency by the piezoelectric inverse effect of the transducer.
The form of the audio longitudinal wave is radiated in the cleaning fluid. Due to the positive pressure and negative pressure alternating effects of the propagation of super audio longitudinal waves, there are numerous micro waves exceeding 1000 atmospheres.
The small bubbles are burst at any time, forming a slight partial high pressure bombardment on the surface of the cleaning material, so that the dirt on the surface and the crevice of the body is spalling quickly.
The "cavitation effect" characteristic of sound wave cleaning.
new ultrasonic generators adopt international leading high-frequency laser, which more stable and more intensive. Compared with the formers, it can clean more complete and faster. Coupled with the unique anti-corrosion technology, guarantee the using environment unlimited. Besides, adopt the imported international leading power tube drive, greatly enhance the stability of the product, its transferring rate reach above 95%.
Our service:
1.1and half years free maintenance, all lifetime maintenance service from us;
2. Rechangable within a month, Reply your enquiry in 24 working hours.
3. Experienced staffs answer all your questions in fluent English.
4. OEM is available if the quantity is large.
5. We assure our product of quality, with innovative design, industrial grade quality circuit board, advanced production line and strict quality control procedures, the failure rate is less than 0.01%, which is the lowest in this line.
20KHz Ultrasonic Cleaner Generator 1200W With Ultrasonic Cleaning Transducer
|
Type |
Power(W) |
Frequency (KHz) |
Transducer numbers |
Size |
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE
AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE
All of machine are available for opening remote control function to connect with your own PLC system |
|
HS-QXDY-300W |
300W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
3-6 |
300x360x150 |
|
HS-QXDY-600W |
600W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
6-12 |
300x360x150 |
|
HS-QXDY-900W |
900W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
9-18 |
300x360x150 |
|
HS-QXDY-1000W |
1000W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
10-20 |
300x360x150 |
|
HS-QXDY-1200W |
1200W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
12-24 |
300x360x150 |
|
HS-QXDY-1500W |
1500W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
15-30 |
300x360x150 |
|
HS-QXDY-1800W |
1800W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
18-36 |
300x360x150 |
|
HS-QXDY-2000W |
2000W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
20-40 |
300x360x150 |
|
HS-QXDY-2400W |
2400W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
24-48 |
300x360x150 |
|
HS-QXDY-3000W |
3000W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
50-60 |
300x360x150 |
|
High Frequency |
300W-1200W |
54KHZ,60KHZ,68KHZ,70KHZ,80KHZ,100KHZ,120KHZ,135KHZ |
|
High Frequency |
100W-300W |
175-200KHZ |
|
Above ultrasonic generator 110V-120V or 220V-240V are available,contact with us during your order with detail request |
