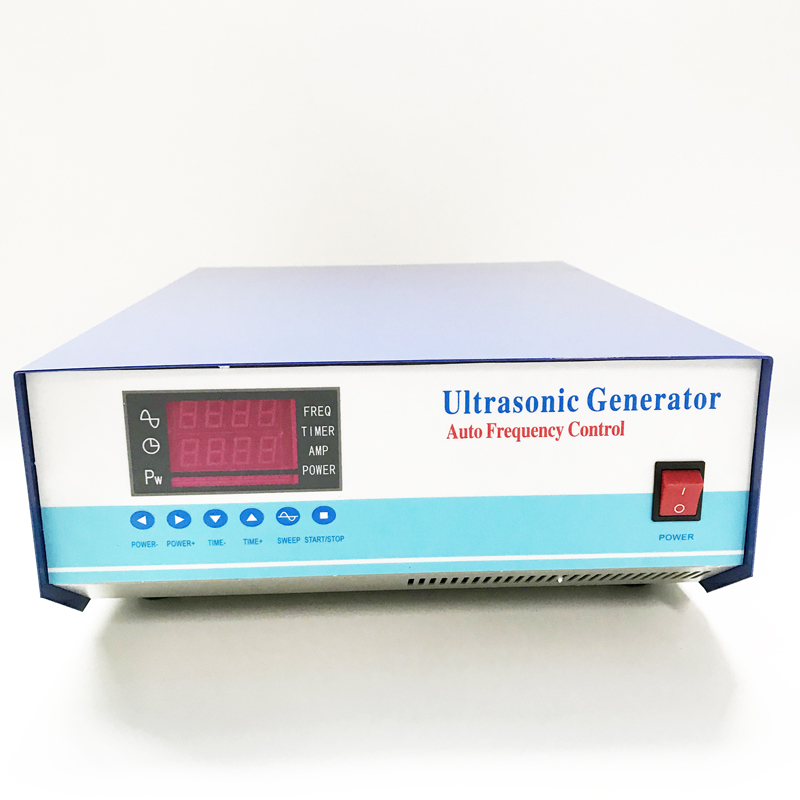

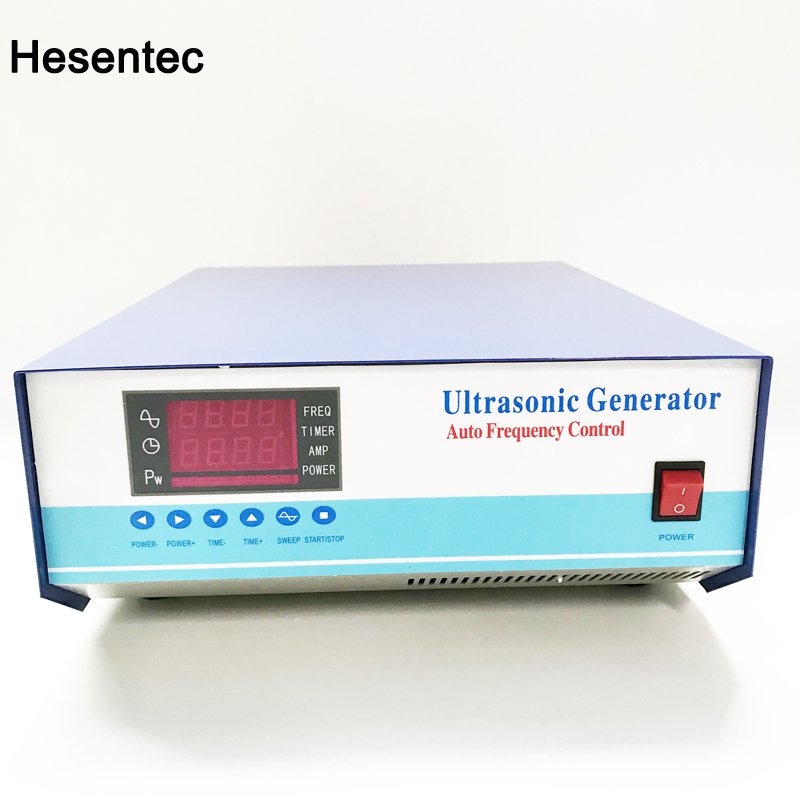

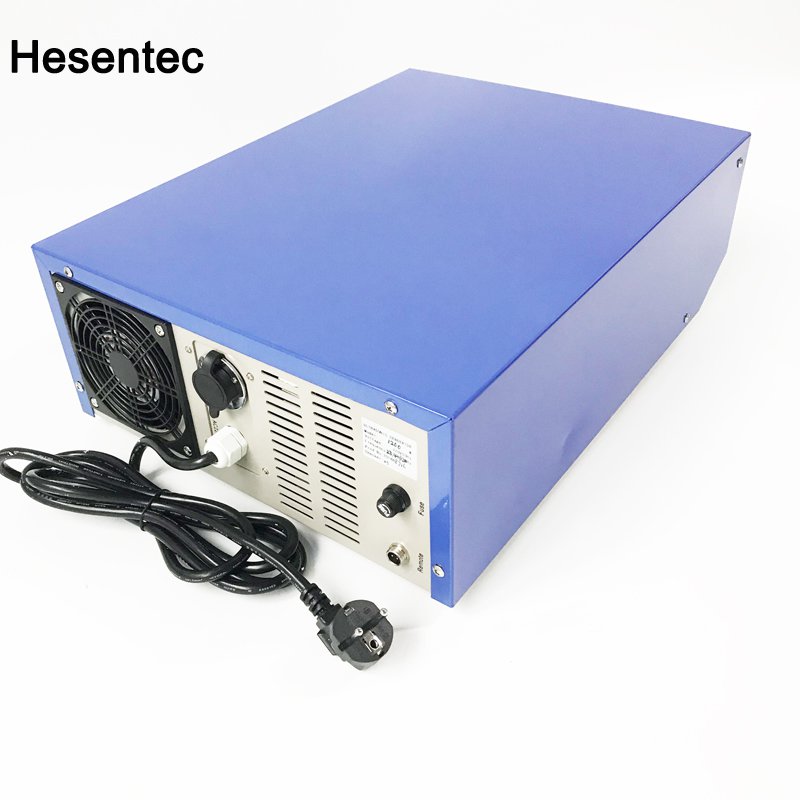

40K 80K 120K Hesen Multi Frequency Ultrasonic Cleaning Generator

40K 80K 120K Hesen Multi Frequency Ultrasonic Cleaning Generator

electrical signals generated by the ultrasonic generator are higher than the 28KHZ audio signals, and are transformed into mechanical oscillations of the same frequency through the piezoelectric inverse effect of transducers.
The form of the audio longitudinal wave is radiated in the cleaning fluid. Due to the positive pressure and negative pressure alternating effects of the propagation of super audio longitudinal waves, there are numerous micro waves exceeding 1000 atmospheres.
The small bubbles are burst at any time, forming a slight partial high pressure bombardment on the surface of the cleaning material, so that the dirt on the surface and the crevice of the body is spalling quickly.
The "cavitation effect" characteristic of sound wave cleaning.
Working voltage: 220V 10% rated power 600W 900W 1200W 1500W 1800W 2400W 2700W



MARKET
Yearly 30% Market share increased, One-to-one service
MACHINES' INTRODUCTION
Features
Full-bridge architecture, power adjustable
Ultrasonic frequency automatic tracking,
With corrosion proof function
Multiple protection circuit electrical box,
Independent of the triangular wave energy transfer circuit
Frequency digital display, the current stability
PLC remote control
Automatic matching in frequency, don't need debugging



35KHz High Efficiency Ultrasonic Cleaner Generator For Cleaning Metal Parts

Type	Power(W)	Frequency (KHz)	Transducer numbers	Size
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE All of machine are available for opening remote control function to connect with your own PLC system
HS-QXDY-300W	300W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	3-6	300x360x150
HS-QXDY-600W	600W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	6-12	300x360x150
HS-QXDY-900W	900W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	9-18	300x360x150
HS-QXDY-1000W	1000W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	10-20	300x360x150
HS-QXDY-1200W	1200W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	12-24	300x360x150
HS-QXDY-1500W	1500W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	15-30	300x360x150
HS-QXDY-1800W	1800W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	18-36	300x360x150
HS-QXDY-2000W	2000W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	20-40	300x360x150
HS-QXDY-2400W	2400W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	24-48	300x360x150
HS-QXDY-3000W	3000W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	50-60	300x360x150
High Frequency	300W-1200W	54KHZ,60KHZ,68KHZ,70KHZ,80KHZ,100KHZ,120KHZ,135KHZ
High Frequency	100W-300W	175-200KHZ
Above ultrasonic generator 110V-120V or 220V-240V are available,contact with us during your order with detail request
