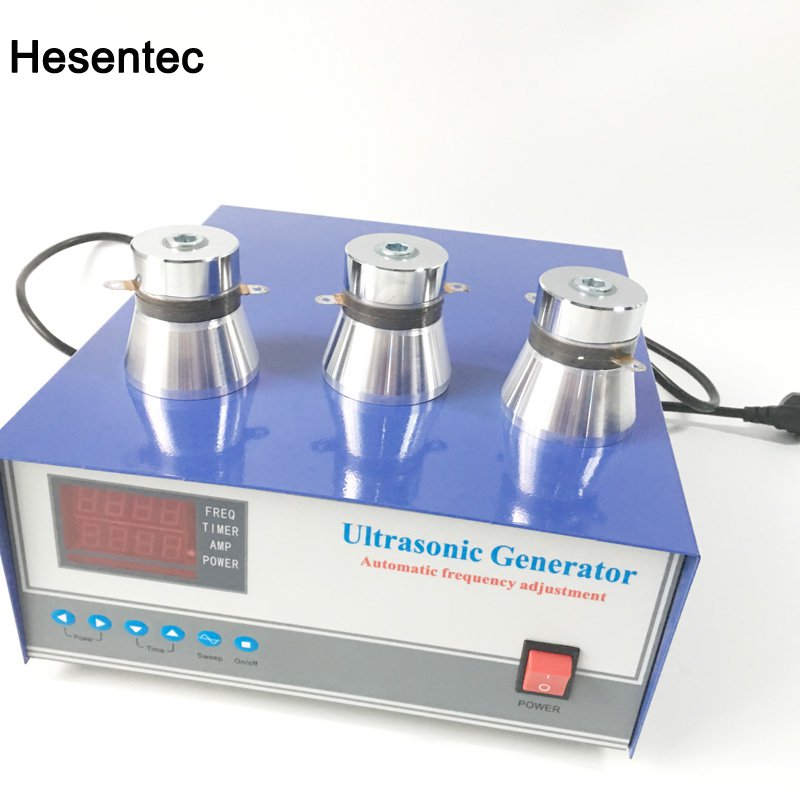

CE Ultrasonic Cleaner Generator Washing Machine 40KHz/28KHz
20khz/28khz/40khz ultrasonic generator with ultrasonic washing machine for industries
Please place the power supply in the dry and ventilated place. The distance between the rear part of the machine and the shield is more than 30 mm, so as to dissipate heat. In case of abnormal work, please contact the maintenance staff. Do not open the cover casually, in order to avoid danger. The power protection ground wire of the chassis must be well grounded in order to avoid the danger of accidental electric shock. (1) It has the function of sweeping frequency, even if the impact reflux cleaning is used, the intermittent and impact ultrasonic acceleration and shock wave will be produced in the cleaning solution, which can quickly clean the surface stains of the workpiece, but it is not suitable for long-term sweeping frequency cleaning.
(2) It has the functions of over-voltage, over-current and over-heat protection, which can protect the generator from burnout to the greatest extent.
(3) It has timing function and is convenient for manufacturers to achieve high-precision timing cleaning. The timing range is 0-59 minutes and 59 seconds, which saves labor costs.
(4) It has the function of digital display, which can display current and frequency. It can be switched on by holding down power or power +.
(5) With frequency adjustable function: a generator can adjust the use of multiple frequency bands, but the company engineers professionally declare: each frequency band chip program is different, inductance coil ratio is different, transformer diameter is different, need to be debugged and used under the guidance of the manufacturer, large-scale change of frequency will damage the machine.
|
Type |
Power(W) |
Frequency (KHz) |
Transducer numbers |
Size |
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE
AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE
All of machine are available for opening remote control function to connect with your own PLC system |
|
HS-QXDY-300W |
300W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
3-6 |
300x360x150 |
|
HS-QXDY-600W |
600W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
6-12 |
300x360x150 |
|
HS-QXDY-900W |
900W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
9-18 |
300x360x150 |
|
HS-QXDY-1000W |
1000W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
10-20 |
300x360x150 |
|
HS-QXDY-1200W |
1200W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
12-24 |
300x360x150 |
|
HS-QXDY-1500W |
1500W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
15-30 |
300x360x150 |
|
HS-QXDY-1800W |
1800W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
18-36 |
300x360x150 |
|
HS-QXDY-2000W |
2000W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
20-40 |
300x360x150 |
|
HS-QXDY-2400W |
2400W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
24-48 |
300x360x150 |
|
HS-QXDY-3000W |
3000W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
50-60 |
300x360x150 |
|
High Frequency |
300W-1200W |
54KHZ,60KHZ,68KHZ,70KHZ,80KHZ,100KHZ,120KHZ,135KHZ |
|
High Frequency |
100W-300W |
175-200KHZ |
|
Above ultrasonic generator 110V-120V or 220V-240V are available,contact with us during your order with detail request |
