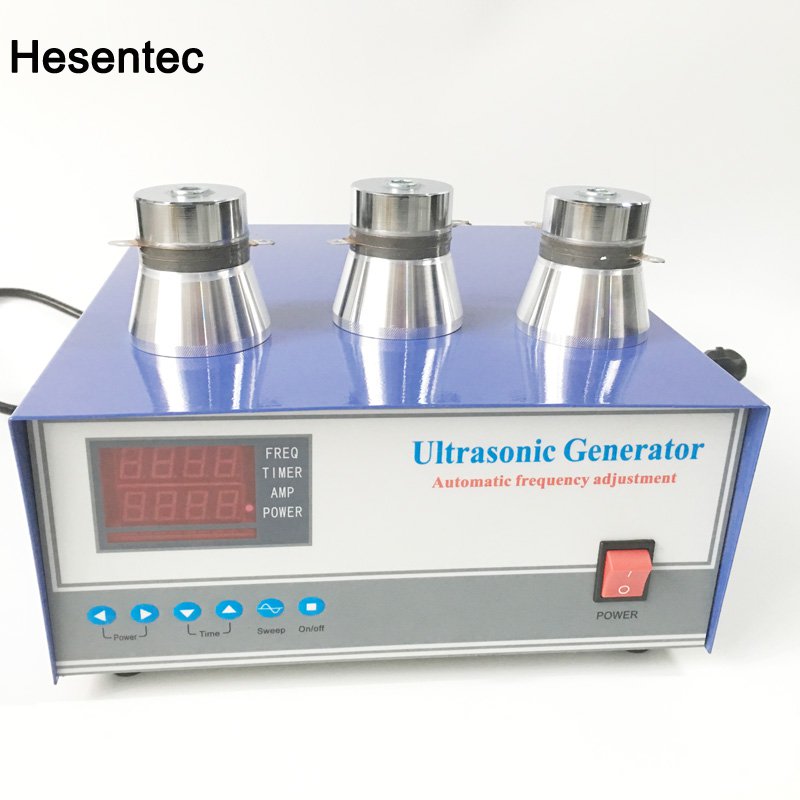

Lightweight Table Top Ultrasonic Cleaner Ultrasonic Cleaner 28K
25khz/28khz ultrasonic generator with ultrasonic washing machine manufacturers in india 1000W/2000W
Please place the power supply in the dry and ventilated place. The distance between the rear part of the machine and the shield is more than 30 mm, so as to dissipate heat. In case of abnormal work, please contact the maintenance staff. Do not open the cover casually, in order to avoid danger. The power protection ground wire of the chassis must be well grounded in order to avoid the danger of accidental electric shock. With advanced micro-computer control technology and brand-new circuit design concept, a new generation of special power source for multi-functional ultrasonic cleaning machine is introduced.
(1) The digital frequency synthesis technology controlled by a microcomputer is used in the source and control part of the signal generator.
(2) Digital ultrasonic power can be continuously adjusted and used more flexibly. Power is stronger and more efficient.
(3) It has perfect protection functions: overheating protection and overcurrent protection, which make the work more reliable.
(4) Four-bit timer, precise time control to seconds, to ensure the quality of your work.
(5) The "working state", "frequency" and "current" can be displayed as required.
(6) Providing external control interface to facilitate the connection with other control equipment
|
Type |
Power(W) |
Frequency (KHz) |
Transducer numbers |
Size |
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE
AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE
All of machine are available for opening remote control function to connect with your own PLC system |
|
HS-QXDY-300W |
300W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
3-6 |
300x360x150 |
|
HS-QXDY-600W |
600W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
6-12 |
300x360x150 |
|
HS-QXDY-900W |
900W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
9-18 |
300x360x150 |
|
HS-QXDY-1000W |
1000W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
10-20 |
300x360x150 |
|
HS-QXDY-1200W |
1200W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
12-24 |
300x360x150 |
|
HS-QXDY-1500W |
1500W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
15-30 |
300x360x150 |
|
HS-QXDY-1800W |
1800W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
18-36 |
300x360x150 |
|
HS-QXDY-2000W |
2000W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
20-40 |
300x360x150 |
|
HS-QXDY-2400W |
2400W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
24-48 |
300x360x150 |
|
HS-QXDY-3000W |
3000W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
50-60 |
300x360x150 |
|
High Frequency |
300W-1200W |
54KHZ,60KHZ,68KHZ,70KHZ,80KHZ,100KHZ,120KHZ,135KHZ |
|
High Frequency |
100W-300W |
175-200KHZ |
|
Above ultrasonic generator 110V-120V or 220V-240V are available,contact with us during your order with detail request |
