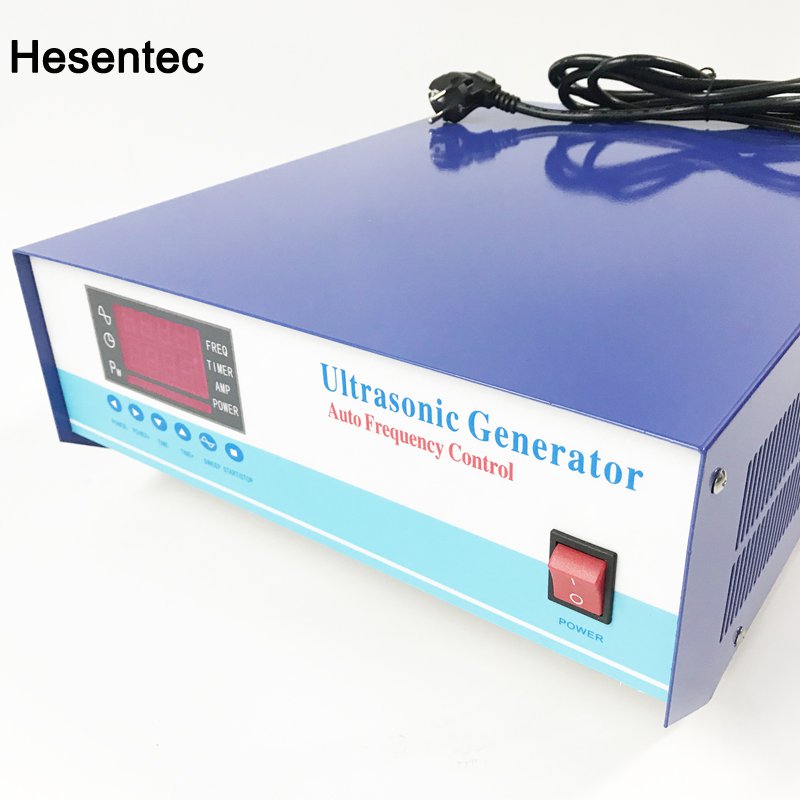

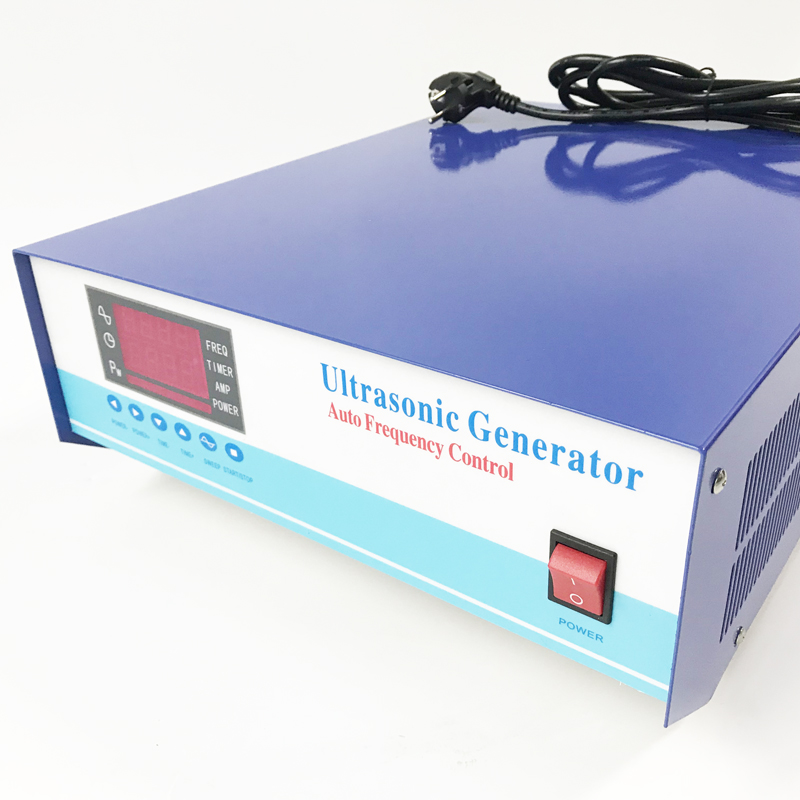

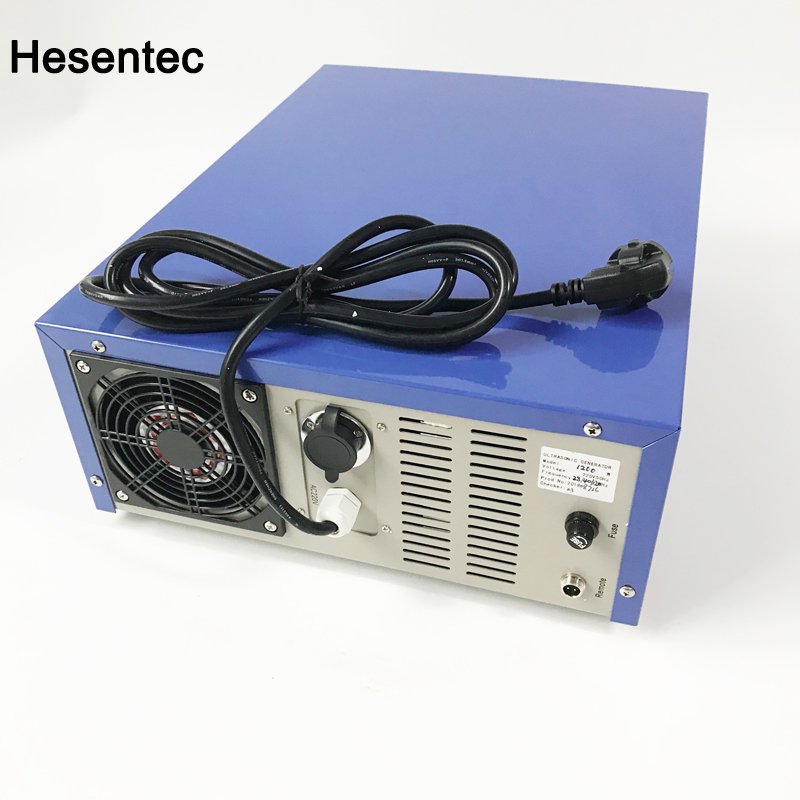

Multi Frequency Benchtop Ultrasonic Cleaner Generator 300W-1200W
1) Automatic frequency tracking and tuning without manual tuning. Automatic tracking of the best working condition.
2) Showing real-time frequency.
3) Protection for transducer faults, overheating and current over-loading.
4) The output power can be automatically adjusted according to the load.
5) Adapt to the transducers of a variety of parameters.
6) The working mode and parameters can be digitally freely set,
7) Automatic scanning and automatic tracking frequency with great working bandwidth.
8) Equipped with professional control system. Four modes for your choice: time mode, continuous mode, energy mode, broken mode.
Features:
It adopts international advanced figure pulse for driving; compared with traditional auto-excitation type control technology, it’s advantages like small in size, light in weight, powerful in power, stable and reliable in operation, continuous and adjustable in power and flexible in control have gained approval from many experts. Frequency scanning more ensured the machine can be at its best working state from the beginning to the end, which can express the potential of ultrasonic transducer to its maximum.
Frequency 28Khz - 130Khz adjustable
Power 1200W 0-100% adjustable
With timing function and PLC remote control
With over-current protection and output short-circuit protection
Dual Frequency Benchtop Ultrasonic Cleaner Generator 50W-1000W For Cleaning
|
Type |
Power(W) |
Frequency (KHz) |
Transducer numbers |
Size |
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE
AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE
All of machine are available for opening remote control function to connect with your own PLC system |
|
HS-QXDY-300W |
300W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
3-6 |
300x360x150 |
|
HS-QXDY-600W |
600W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
6-12 |
300x360x150 |
|
HS-QXDY-900W |
900W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
9-18 |
300x360x150 |
|
HS-QXDY-1000W |
1000W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
10-20 |
300x360x150 |
|
HS-QXDY-1200W |
1200W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
12-24 |
300x360x150 |
|
HS-QXDY-1500W |
1500W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
15-30 |
300x360x150 |
|
HS-QXDY-1800W |
1800W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
18-36 |
300x360x150 |
|
HS-QXDY-2000W |
2000W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
20-40 |
300x360x150 |
|
HS-QXDY-2400W |
2400W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
24-48 |
300x360x150 |
|
HS-QXDY-3000W |
3000W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
50-60 |
300x360x150 |
|
High Frequency |
300W-1200W |
54KHZ,60KHZ,68KHZ,70KHZ,80KHZ,100KHZ,120KHZ,135KHZ |
|
High Frequency |
100W-300W |
175-200KHZ |
|
Above ultrasonic generator 110V-120V or 220V-240V are available,contact with us during your order with detail request |
