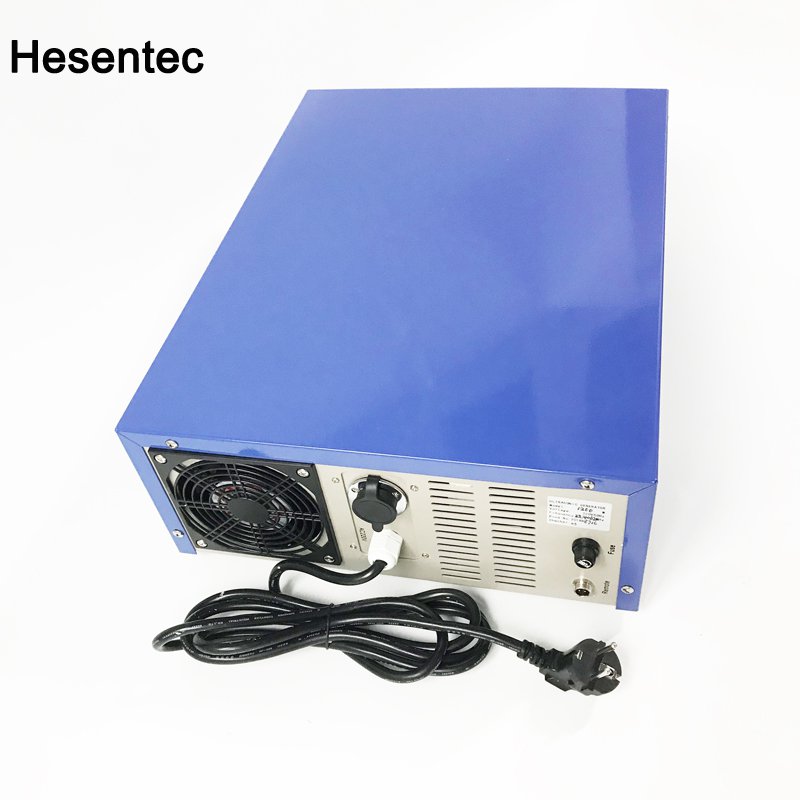

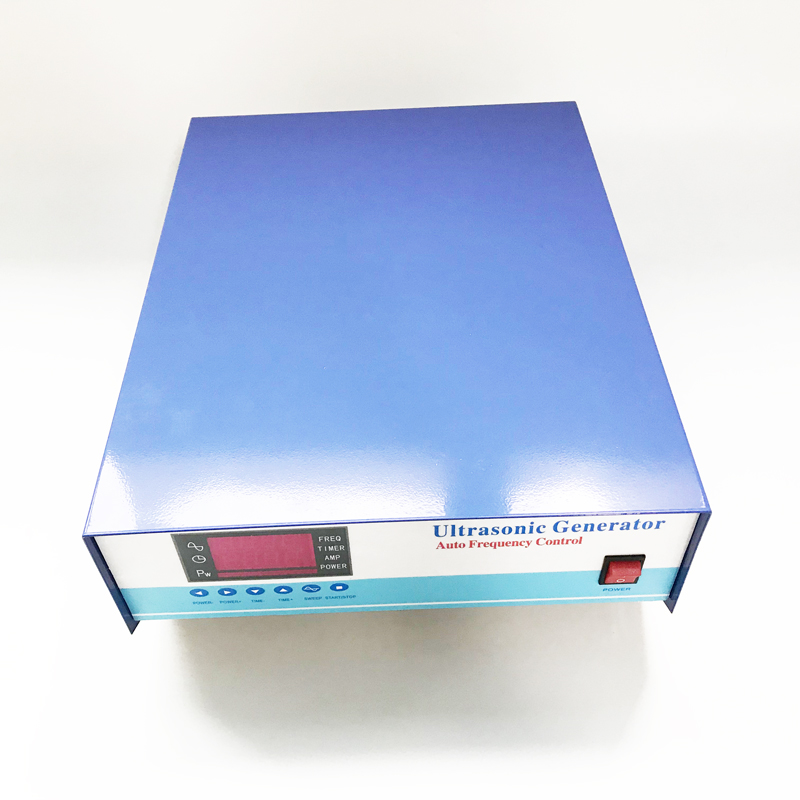

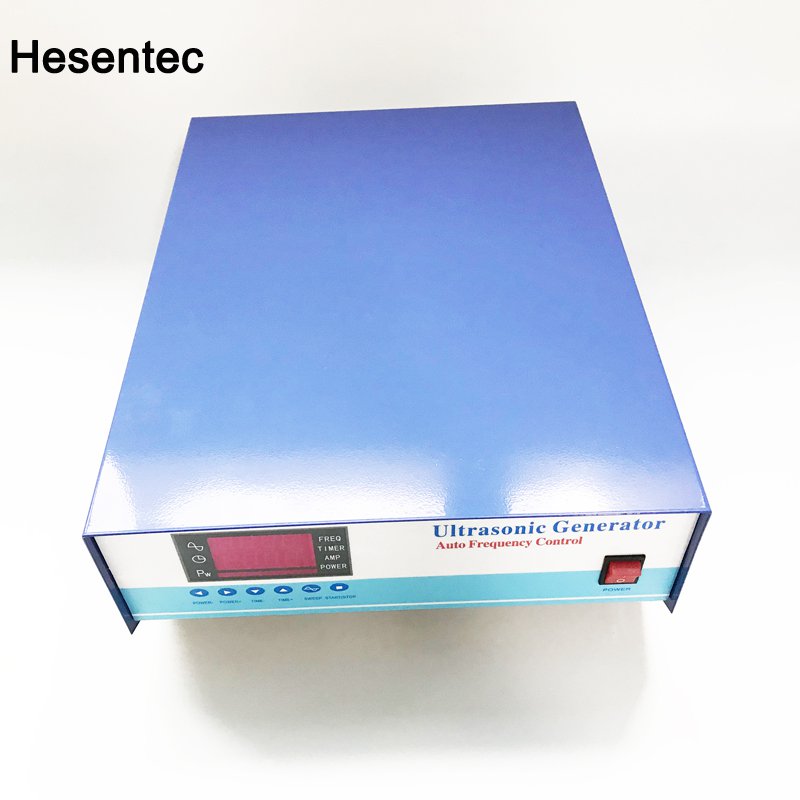

33KHz/40KHz Smart Multi Frequency Ultrasonic Cleaner Generator
Features
Full-bridge architecture, power adjustable
Ultrasonic frequency automatic tracking,
With corrosion proof function
Multiple protection circuit electrical box,
Independent of the triangular wave energy transfer circuit
Frequency digital display, the current stability
PLC remote control
Automatic matching in frequency, don't need debugging
With the development of modern electronic technology, especially microprocessor (uP) and signal processor (DSP), the function of ultrasonic generator is more and more powerful, but no matter how it changes, its core function should be as follows, but each part is different in technology. An ultrasonic generator generates a signal of a specific frequency, which can be either a sinusoidal signal or a pulse signal, at a specific frequency
The ultrasonic generator
The ultrasonic generator
It is the frequency of ultrasonic transducer. Usually the ultrasonic frequency used in ultrasonic equipment is 25KHz, 28KHz, 35KHz, 40KHz; 100KHz.
It is believed that the use area will gradually expand. A more perfect ultrasonic generator should also have feedback links, mainly providing two aspects of feedback signals:
The first is to provide the output power signal. We know that when the power supply (voltage) of the ultrasonic generator changes, the output power of the ultrasonic generator will also change. The power amplifier is adjusted by the power feedback signal, so that the power amplification is stable.
The second is to provide a frequency tracking signal. When the ultrasonic transducer works at the resonant frequency point, its efficiency is the highest, the operation is the most stable, and the resonant frequency point of the ultrasonic transducer will change due to assembly reasons and working aging, of course, the frequency of this change is only drift, the change is not very big, the frequency tracking signal can be. Control signal ultrasonic generator, so that the signal ultrasonic generator frequency within a certain range of tracking ultrasonic transducer resonance frequency point. Let the ultrasonic generator work in the best state.
Working voltage: 220V 10% rated power 300W 600W 900W 1200W 1500W 1800W 2400W 3000W
Working voltage: AC 220V/110V 50/60Hz ±10%
Working current: please note that the equipment can not work long time under the state of operation when its current is greater than the rated current.
Working environment: the temperature is 0℃- 40 ℃
Working humidity: 40%- 90%
Working frequency: from 17khz to 135khz
Time : 0-59 minutes and 59 seconds
High Power Ultrasonic Cleaner Generator 17KHz-200KHz For Cleaning Silver Jewelry
|
Type |
Power(W) |
Frequency (KHz) |
Transducer numbers |
Size |
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE
AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE
All of machine are available for opening remote control function to connect with your own PLC system |
|
HS-QXDY-300W |
300W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
3-6 |
300x360x150 |
|
HS-QXDY-600W |
600W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
6-12 |
300x360x150 |
|
HS-QXDY-900W |
900W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
9-18 |
300x360x150 |
|
HS-QXDY-1000W |
1000W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
10-20 |
300x360x150 |
|
HS-QXDY-1200W |
1200W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
12-24 |
300x360x150 |
|
HS-QXDY-1500W |
1500W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
15-30 |
300x360x150 |
|
HS-QXDY-1800W |
1800W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
18-36 |
300x360x150 |
|
HS-QXDY-2000W |
2000W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
20-40 |
300x360x150 |
|
HS-QXDY-2400W |
2400W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
24-48 |
300x360x150 |
|
HS-QXDY-3000W |
3000W |
17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
50-60 |
300x360x150 |
|
High Frequency |
300W-1200W |
54KHZ,60KHZ,68KHZ,70KHZ,80KHZ,100KHZ,120KHZ,135KHZ |
|
High Frequency |
100W-300W |
175-200KHZ |
|
Above ultrasonic generator 110V-120V or 220V-240V are available,contact with us during your order with detail request |
