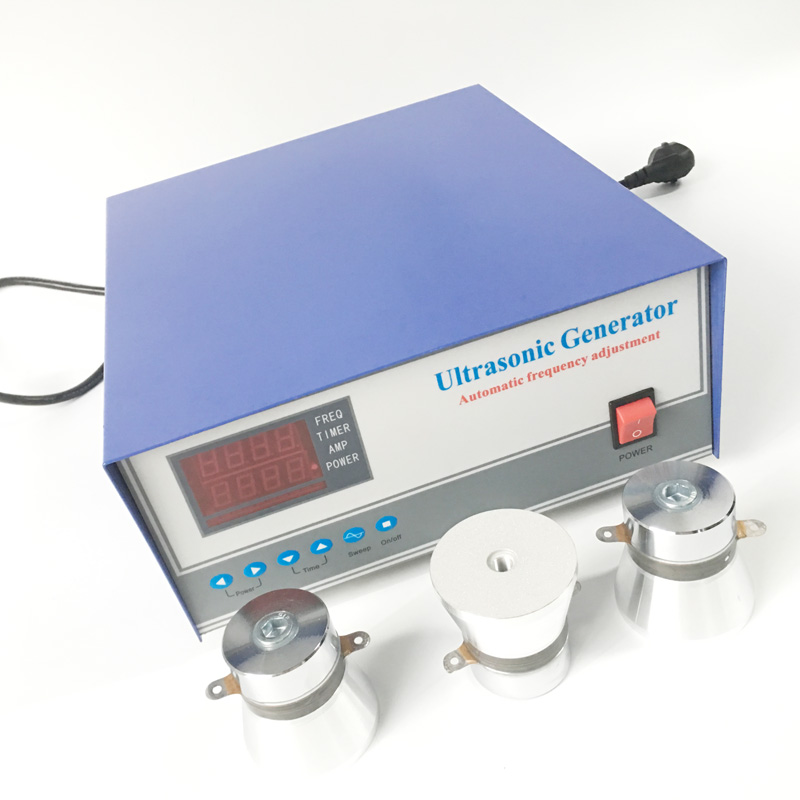

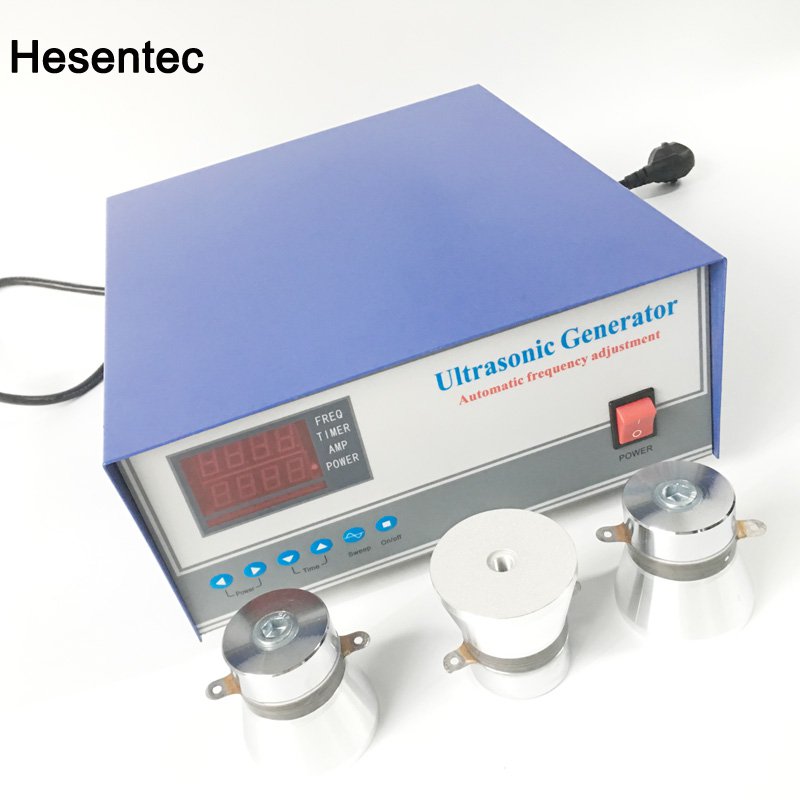

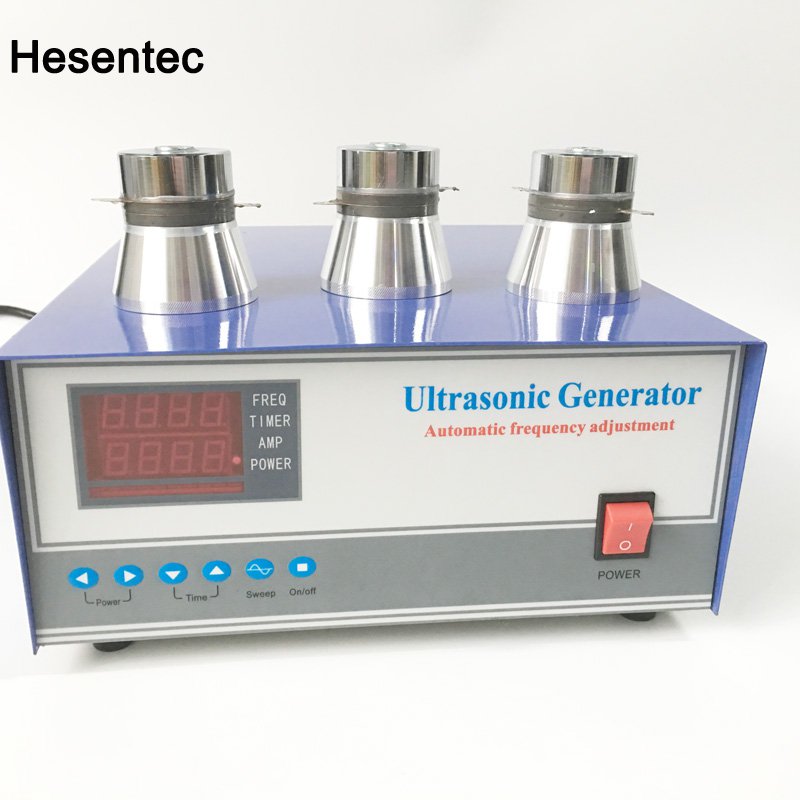

Power Adjustment Ultrasonic Cleaner Generator 40KHz 100/2000Watt

Power Adjustment Ultrasonic Cleaner Generator 40KHz 100/2000Watt Introduction

Power Adjustment Ultrasonic Cleaner Generator 40KHz 100/2000Watt

40khz/80khz/100khz ultrasonic generator for ultrasonic cleaning washing machine 100Watt/2000Watt

Instructions:

1. Place the machine in a ventilated and dry place, connect the power supply and output connector. When the power is turned on, the serial number of the product will be displayed in the display window.

2. Normal working mode: Turn on the power supply, display window or display "-OFF". If it is a timing number, press the "Increase Timing" or "Reduce Timing" button to make the display window display "-OFF", and then press "Start/Stop" to enter the normal working mode, and display "-ON-". In this mode, the display frequency or current can also be selected by the function conversion button. The "Start/Stop" switch directly controls the work of the machine.

3. Timing mode: When the power is turned on, the display window should display "XXXX". If the display is "-OFF" or the display is not the time you need, when the machine is in suspension state (if not, press the "Start/Stop" button to make the machine work in suspension state "OFF"), press the "Increase Timing" or "Reduce Timing" button to make the display window display the time you need, and then press the "Start/Stop" button. "Start/stop" machine will enter the timing mode, the display window shows the corresponding timing value "XXXX", and decreases in seconds. When the clock was reduced to zero, the machine stopped working and the display window reappeared the original set straight. To restart, press the Start/Stop button.

4. Power adjustment: In the working state, press the "Increase Power" or "Reduce Power" button to achieve the required state, the machine will save your power settings in about 10 seconds.

5. Sweeping mode of operation: By changing the frequency of a certain section of the power supply, the ultrasonic vibration can simulate the scouring effect, so as to strengthen the cleaning effect. However, this mode may cause damage to the parts, please use it as appropriate. 6. Use of remote control lines There is a remote control interface behind the machine. It is mainly used in automatic control equipment. It can flexibly control the output of ultrasound through the PLC or other equipment in the equipment, so as to avoid the damage to the equipment caused by frequent switching equipment power supply. When the remote control port is short, the ultrasound opens and the start and time adjustment buttons on the panel will be locked. When there are many controlled ultrasonic power supply in the same equipment, it is necessary to use multiple independent switch contacts.

Type	Power(W)	Frequency (KHz)	Transducer numbers	Size
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE All of machine are available for opening remote control function to connect with your own PLC system
HS-QXDY-300W	300W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	3-6	300x360x150
HS-QXDY-600W	600W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	6-12	300x360x150
HS-QXDY-900W	900W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	9-18	300x360x150
HS-QXDY-1000W	1000W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	10-20	300x360x150
HS-QXDY-1200W	1200W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	12-24	300x360x150
HS-QXDY-1500W	1500W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	15-30	300x360x150
HS-QXDY-1800W	1800W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	18-36	300x360x150
HS-QXDY-2000W	2000W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	20-40	300x360x150
HS-QXDY-2400W	2400W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	24-48	300x360x150
HS-QXDY-3000W	3000W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	50-60	300x360x150
High Frequency	300W-1200W	54KHZ,60KHZ,68KHZ,70KHZ,80KHZ,100KHZ,120KHZ,135KHZ
High Frequency	100W-300W	175-200KHZ
Above ultrasonic generator 110V-120V or 220V-240V are available,contact with us during your order with detail request
