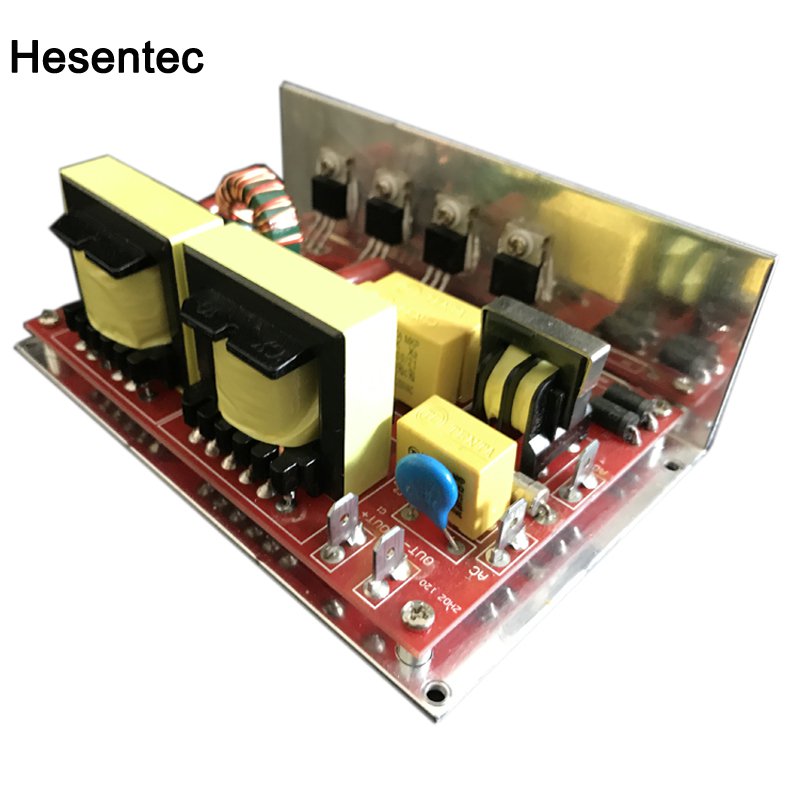

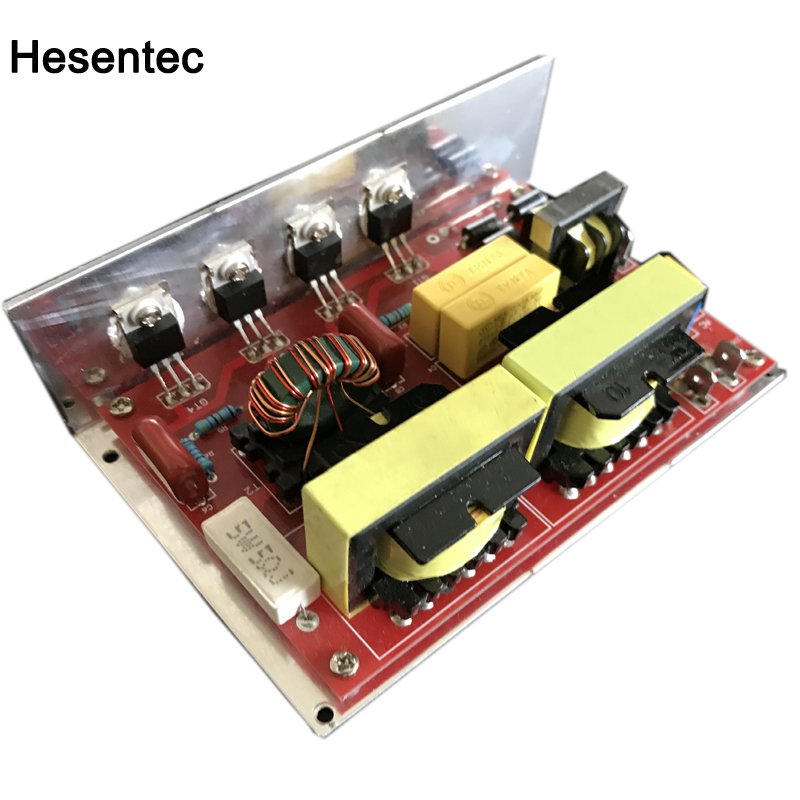

60W Small Power Ultrasonic PCB Generator Driver Circuit Board

60W Small Power Ultrasonic PCB Generator Driver Circuit Board

At the same time, it has perfect protective capacity: over-temperature protection and over-current protection for more reliable operation; a 4-bit timer for more accurate time control to the second. With digital power adjustment, it can meet different cleaning demands. It permits optional alteration in the working state, so the operation is freer. The complete appliance is based on a building block design. With  a computer fault location and display system, its operation and maintenance are more convenient.

Type	Frequency	Power	Dimension (mm)	Transducer numbers
HS-DLB50W	25khz,28khz,33khz,40khz	50W	132×85×45mm	1 piece
HS-DLB60W	25khz,28khz,33khz,40khz	60W	132×85×45mm	1 piece
HS-DLB100W	25khz,28khz,33khz,40khz	100W	132×85×45mm	1-2 pieces
HS-DLB120W	25khz,28khz,33khz,40khz	120W	132×85×45mm	1-2 pieces
HS-DLB150W	25khz,28khz,33khz,40khz	150W	132×85×45mm	1-3 pieces
