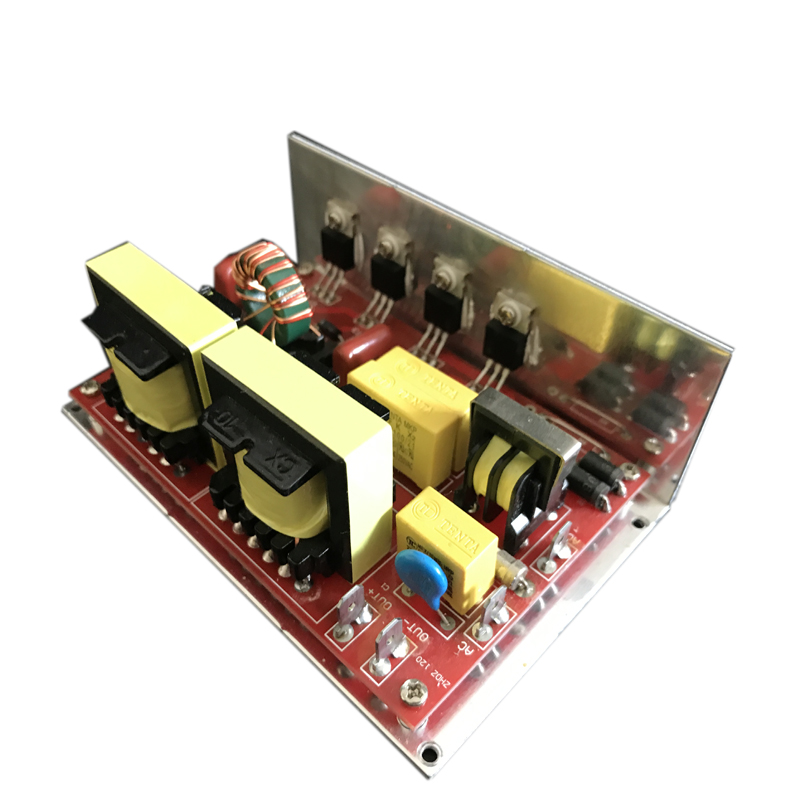

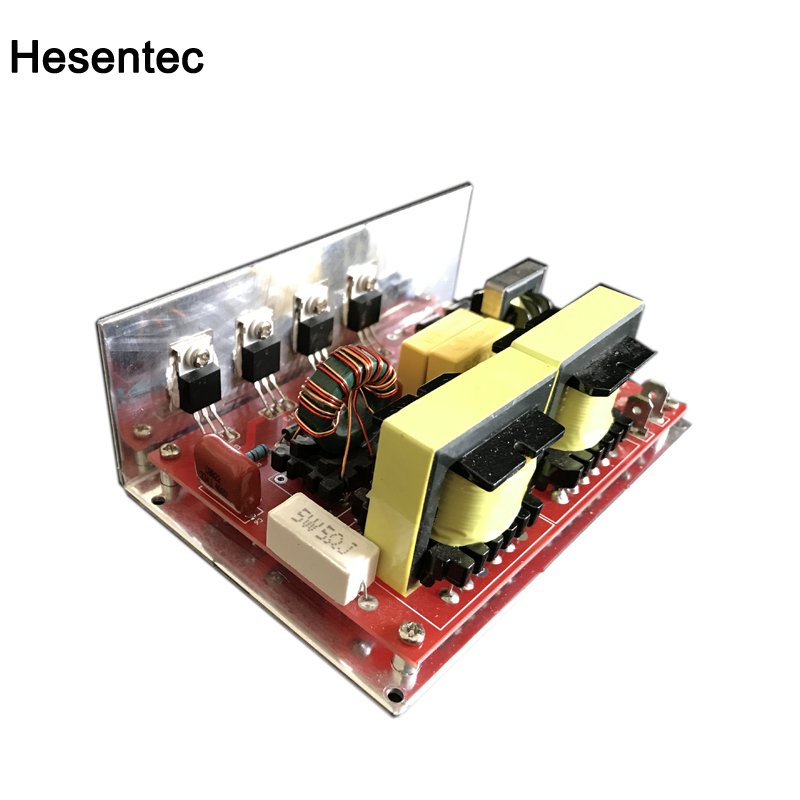

28KHz Piezoceramic Ultrasonic Transducer PCB generator Circuit

28KHz Piezoceramic Ultrasonic Transducer PCB generator Circuit

samll power ultrasonic PCB generator circuit board based on ultrasonic cleaning workpiece, the ultrasonic generator PCB are allowing the particles attached to the workpiece, oil and other mechanical vibration with the ultrasound off or dissolved or emulsified and so on, to achieve the purpose of cleaning the workpiece.

Type	Frequency	Power	Dimension (mm)	Transducer numbers
HS-DLB50W	25khz,28khz,33khz,40khz	50W	132×85×45mm	1 piece
HS-DLB60W	25khz,28khz,33khz,40khz	60W	132×85×45mm	1 piece
HS-DLB100W	25khz,28khz,33khz,40khz	100W	132×85×45mm	1-2 pieces
HS-DLB120W	25khz,28khz,33khz,40khz	120W	132×85×45mm	1-2 pieces
HS-DLB150W	25khz,28khz,33khz,40khz	150W	132×85×45mm	1-3 pieces
