Location：Home > Ultrasonic Transducer > Ultrasonic PCB generator > PCB Generator Vibration For Driver Ultrasonic Transducer 600W
  • PCB Generator Vibration For Driver Ultrasonic Transducer 600W

PCB Generator Vibration For Driver Ultrasonic Transducer 600W

PCB Generator Vibration For Driver Ultrasonic Transducer 600W Introduction

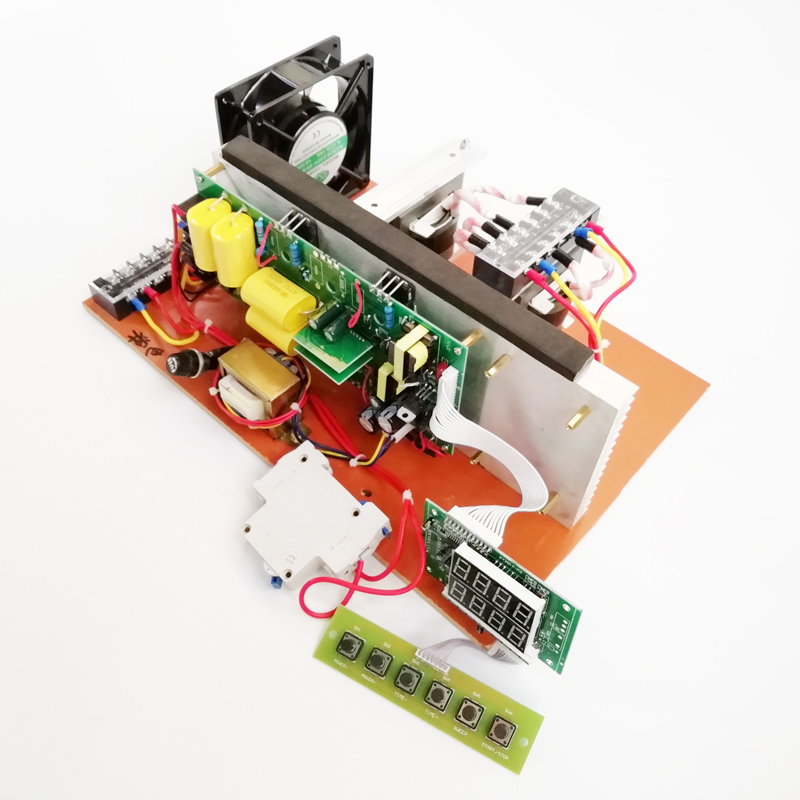

PCB Generator Vibration For Driver Ultrasonic Transducer 600W

Main technical index of PCB generator vibration：

Operating voltage：220V      10%

Working current: Please note that the equipment can not run over the rated current for a long time

Rated power 600W 900W 1200W 1500W 1800W 2000W

Rated current 2.5A 3.5A 4.5A 5A-5.5A 6A-6.5A 6.5A-7A

Ambient temperature：0-45℃

 Relative humidity：40%-90%

working frequency：160KHz below

Power control range：0-100%

by manual 16 grade, automatic 32-level power adjustment

Machine overheating protection：65℃

Dimensions：H x W x L = 130 x 270 x 380


Type Frequency Power Dimension
(mm)
HS-MBJ300 17khz,20khz,25khz,28khz,33khz,40khz,48khz ,Frequency is adjustable 300W 380*260*130mm
HS-MBJ600 17khz,20khz,25khz,28khz,33khz,40khz,48khz ,Frequency is adjustable 600W 380*260*130mm
HS-MBJ900 17khz,20khz,25khz,28khz,33khz,40khz,48khz ,Frequency is adjustable 900W 380*260*130mm
HS-MBJ1000 17khz,20khz,25khz,28khz,33khz,40khz,48khz ,Frequency is adjustable 1000W 380*260*130mm
HS-MBJ1200 17khz,20khz,25khz,28khz,33khz,40khz,48khz ,Frequency is adjustable 1200W 380*260*130mm
HS-MBJ1300 17khz,20khz,25khz,28khz,33khz,40khz,48khz ,Frequency is adjustable 1300W 380*260*130mm
HS-MBJ1500 17khz,20khz,25khz,28khz,33khz,40khz,48khz ,Frequency is adjustable 1500W 380*260*130mm
HS-MBJ1800 17khz,20khz,25khz,28khz,33khz,40khz,48khz ,Frequency is adjustable 1800W 380*260*130mm
HS-MBJ2000 17khz,20khz,25khz,28khz,33khz,40khz,48khz ,Frequency is adjustable 2000W 380*260*130mm
HS-MBJ2400 17khz,20khz,25khz,28khz,33khz,40khz,48khz ,Frequency is adjustable 2400W 380*260*130mm
HS-MBJ2500 17khz,20khz,25khz,28khz,33khz,40khz,48khz ,Frequency is adjustable 2500W 380*260*130mm
HS-MBJ2600 17khz,20khz,25khz,28khz,33khz,40khz,48khz ,Frequency is adjustable 2600W 380*260*130mm
HS-MBJ2800 17khz,20khz,25khz,28khz,33khz,40khz,48khz ,Frequency is adjustable 2800W 380*260*130mm
HS-MBJ3000 17khz,20khz,25khz,28khz,33khz,40khz,48khz ,Frequency is adjustable 3000W 380*260*130mm
 Ultrasonic PCB generator could to 3000W,welcome send the enquire
600W-3000W Ultrasonic PCB frequency adjustable,with display board
Above ultrasonic PCB generator 110V-120V or 220V-240V are available,contact with us during your order with detail request


PCB Generator Vibration For Driver Ultrasonic Transducer 600W
PCB Generator Vibration For Driver Ultrasonic Transducer 600W
