Ultrasonic Transducer Driving Frequency Cleaning Generator 900W

Ultrasonic Transducer Driving Frequency Cleaning Generator 900W Introduction

Ultrasonic Transducer Driving Frequency Cleaning Generator 900W

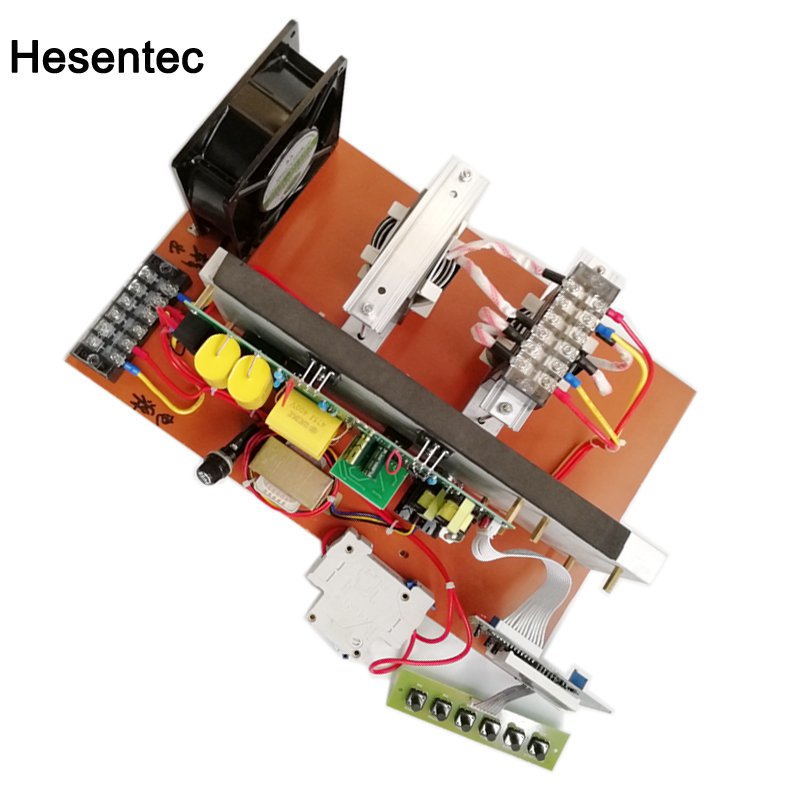

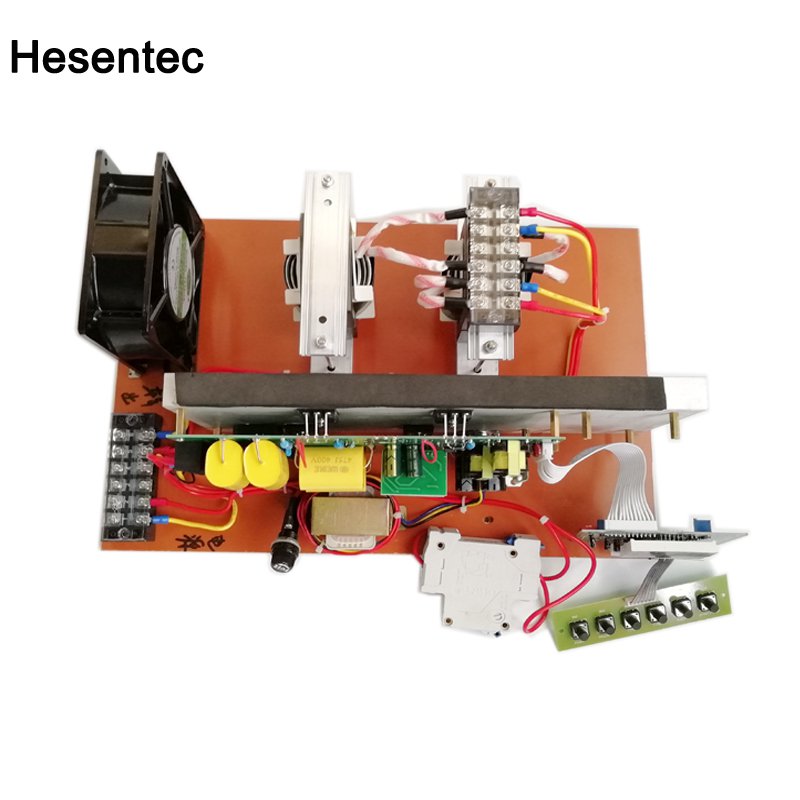

description of ultrasonic transducer driving frequency cleaning generator PCB board：

1. display window: display work frequency, current size, power level, working condition and fault condition.(Start / stop: control ultrasonic start and stop, automatic check after long press 2 seconds.)
1． constant current / sweep frequency: set constant current value and switch frequency sweep status [factory mode confirm this entry to next item].
2． plus: time plus time (setting the display time "XX.XX").
3． time minus: time timed minus (set display "ON/OFF").
4． Power Plus: increase the output power (set the display current "XX.XA").
5． power subtraction: reduce output power (set the display frequency "FX.XX").
power switch: control the 220V voltage.
Note: in this note, "X" is shown in the content, and others are letters. Following same.


Type Frequency Power Dimension
(mm)
HS-MBJ300 17khz,20khz,25khz,28khz,33khz,40khz,48khz ,Frequency is adjustable 300W 380*260*130mm
HS-MBJ600 17khz,20khz,25khz,28khz,33khz,40khz,48khz ,Frequency is adjustable 600W 380*260*130mm
HS-MBJ900 17khz,20khz,25khz,28khz,33khz,40khz,48khz ,Frequency is adjustable 900W 380*260*130mm
HS-MBJ1000 17khz,20khz,25khz,28khz,33khz,40khz,48khz ,Frequency is adjustable 1000W 380*260*130mm
HS-MBJ1200 17khz,20khz,25khz,28khz,33khz,40khz,48khz ,Frequency is adjustable 1200W 380*260*130mm
HS-MBJ1300 17khz,20khz,25khz,28khz,33khz,40khz,48khz ,Frequency is adjustable 1300W 380*260*130mm
HS-MBJ1500 17khz,20khz,25khz,28khz,33khz,40khz,48khz ,Frequency is adjustable 1500W 380*260*130mm
HS-MBJ1800 17khz,20khz,25khz,28khz,33khz,40khz,48khz ,Frequency is adjustable 1800W 380*260*130mm
HS-MBJ2000 17khz,20khz,25khz,28khz,33khz,40khz,48khz ,Frequency is adjustable 2000W 380*260*130mm
HS-MBJ2400 17khz,20khz,25khz,28khz,33khz,40khz,48khz ,Frequency is adjustable 2400W 380*260*130mm
HS-MBJ2500 17khz,20khz,25khz,28khz,33khz,40khz,48khz ,Frequency is adjustable 2500W 380*260*130mm
HS-MBJ2600 17khz,20khz,25khz,28khz,33khz,40khz,48khz ,Frequency is adjustable 2600W 380*260*130mm
HS-MBJ2800 17khz,20khz,25khz,28khz,33khz,40khz,48khz ,Frequency is adjustable 2800W 380*260*130mm
HS-MBJ3000 17khz,20khz,25khz,28khz,33khz,40khz,48khz ,Frequency is adjustable 3000W 380*260*130mm
 Ultrasonic PCB generator could to 3000W,welcome send the enquire
600W-3000W Ultrasonic PCB frequency adjustable,with display board
Above ultrasonic PCB generator 110V-120V or 220V-240V are available,contact with us during your order with detail request

Ultrasonic Transducer Driving Frequency Cleaning Generator 900W
Ultrasonic Transducer Driving Frequency Cleaning Generator 900W
