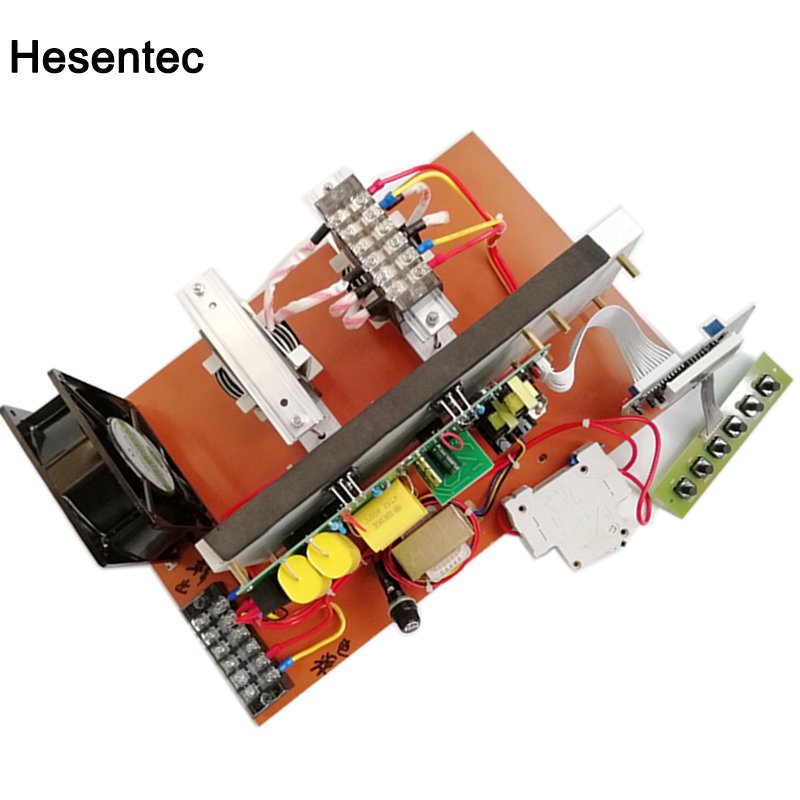

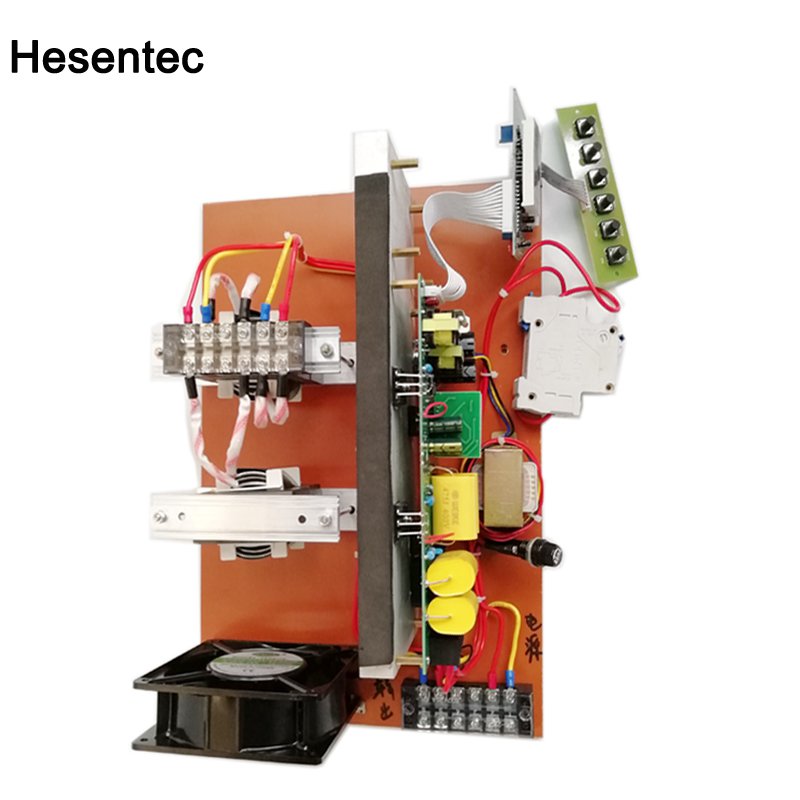

Ultrasonic Control Circuit Board For Ultrasonic Transducer 40KHz

Ultrasonic Control Circuit Board For Ultrasonic Transducer 40KHz Introduction

Ultrasonic Control Circuit Board For Ultrasonic Transducer 40KHz

Instructions of Ultrasonic Control Circuit Board:
* users should debug the power supply after the lotion reaches the level and temperature of the work
* before user debugging, make sure that the nominal frequency and power of the power are consistent with the nominal frequency and power of the head

Fault alarm:
The display window shows "ErrX", indicating that the machine is out of order. Please contact our maintenance personnel to deal with it.
"Err2": for over temperature faults, the internal temperature of the power is over 65 degrees centigrade. "Err5": for overcurrent faults.

Type Frequency Power Dimension
(mm)
HS-MBJ300 17khz,20khz,25khz,28khz,33khz,40khz,48khz ,Frequency is adjustable 300W 380*260*130mm
HS-MBJ600 17khz,20khz,25khz,28khz,33khz,40khz,48khz ,Frequency is adjustable 600W 380*260*130mm
HS-MBJ900 17khz,20khz,25khz,28khz,33khz,40khz,48khz ,Frequency is adjustable 900W 380*260*130mm
HS-MBJ1000 17khz,20khz,25khz,28khz,33khz,40khz,48khz ,Frequency is adjustable 1000W 380*260*130mm
HS-MBJ1200 17khz,20khz,25khz,28khz,33khz,40khz,48khz ,Frequency is adjustable 1200W 380*260*130mm
HS-MBJ1300 17khz,20khz,25khz,28khz,33khz,40khz,48khz ,Frequency is adjustable 1300W 380*260*130mm
HS-MBJ1500 17khz,20khz,25khz,28khz,33khz,40khz,48khz ,Frequency is adjustable 1500W 380*260*130mm
HS-MBJ1800 17khz,20khz,25khz,28khz,33khz,40khz,48khz ,Frequency is adjustable 1800W 380*260*130mm
HS-MBJ2000 17khz,20khz,25khz,28khz,33khz,40khz,48khz ,Frequency is adjustable 2000W 380*260*130mm
HS-MBJ2400 17khz,20khz,25khz,28khz,33khz,40khz,48khz ,Frequency is adjustable 2400W 380*260*130mm
HS-MBJ2500 17khz,20khz,25khz,28khz,33khz,40khz,48khz ,Frequency is adjustable 2500W 380*260*130mm
HS-MBJ2600 17khz,20khz,25khz,28khz,33khz,40khz,48khz ,Frequency is adjustable 2600W 380*260*130mm
HS-MBJ2800 17khz,20khz,25khz,28khz,33khz,40khz,48khz ,Frequency is adjustable 2800W 380*260*130mm
HS-MBJ3000 17khz,20khz,25khz,28khz,33khz,40khz,48khz ,Frequency is adjustable 3000W 380*260*130mm
 Ultrasonic PCB generator could to 3000W,welcome send the enquire
600W-3000W Ultrasonic PCB frequency adjustable,with display board
Above ultrasonic PCB generator 110V-120V or 220V-240V are available,contact with us during your order with detail request


Ultrasonic Control Circuit Board For Ultrasonic Transducer 40KHz
Ultrasonic Control Circuit Board For Ultrasonic Transducer 40KHz
