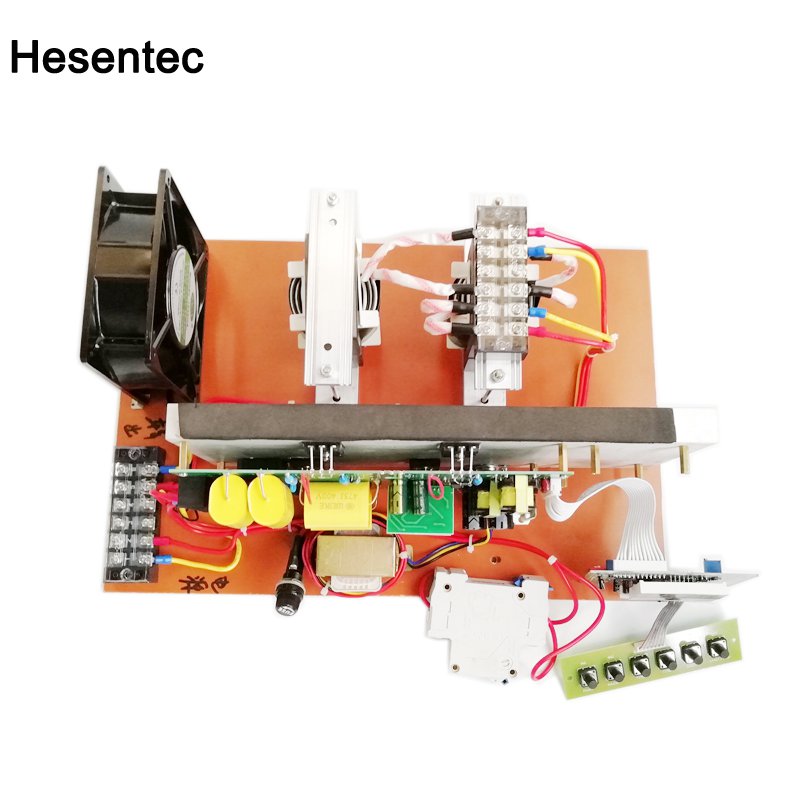

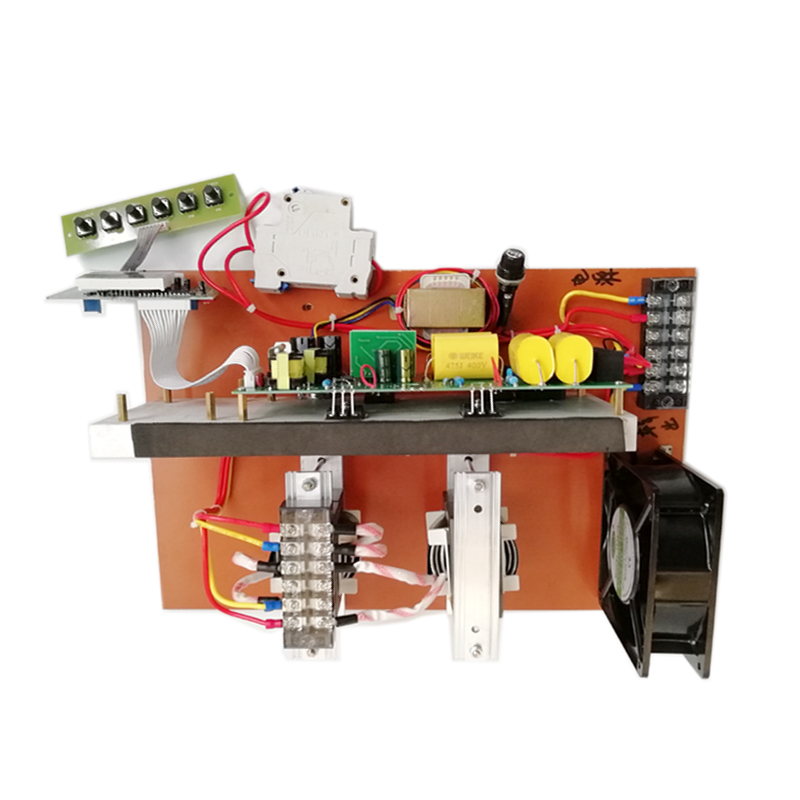

Ultrasonic Transducer Driver For High Power PCB Generator 2400W
User mode and factory mode Description of High Power PCB Generator:
1． the power supply for users to use and manufacturers debugging convenient, set up two modes of work. They are "user mode" and "factory mode"". The choice of two modes is accomplished by the switch on the back of the control panel, as shown in fig.:
2． There is a switch in the diagram that corresponds to the user mode (UE) and the factory mode (FC)". When the switch is to the (UE) end, turn on "user mode" to the (FC) end - mode factory mode".
3． User mode is the mode that is available to the user. In the user mode, you can use the power of the general function.
"Factory mode" is the mode provided to the factory. After booting, you need to input various power parameters before the factory. the above method needs to open the shell to be able to adjust the switch, sometimes this kind of debugging will not be convenient, because the dismounting casing ratio
More troublesome. Therefore, the power supply also provides a "user mode", without opening the shell, you can enter the "factory model" approach. This method can adjust the inductance at the same time, and the power supply can be debugged without the shell.
The operation step is:
Press the constant current / sweep frequency button before turning on the power, and then turn on the power. The power supply shows "-FAC" for three seconds, as shown in fig..
When the power shows "-FAC", press the "power reduction" button to enter the factory mode"
Note: the general user will enter the factory mode operation under the guidance of the manufacturer.
|
Type |
Frequency |
Power |
Dimension
(mm) |
|
HS-MBJ300 |
17khz,20khz,25khz,28khz,33khz,40khz,48khz ,Frequency is adjustable |
300W |
380*260*130mm |
|
HS-MBJ600 |
17khz,20khz,25khz,28khz,33khz,40khz,48khz ,Frequency is adjustable |
600W |
380*260*130mm |
|
HS-MBJ900 |
17khz,20khz,25khz,28khz,33khz,40khz,48khz ,Frequency is adjustable |
900W |
380*260*130mm |
|
HS-MBJ1000 |
17khz,20khz,25khz,28khz,33khz,40khz,48khz ,Frequency is adjustable |
1000W |
380*260*130mm |
|
HS-MBJ1200 |
17khz,20khz,25khz,28khz,33khz,40khz,48khz ,Frequency is adjustable |
1200W |
380*260*130mm |
|
HS-MBJ1300 |
17khz,20khz,25khz,28khz,33khz,40khz,48khz ,Frequency is adjustable |
1300W |
380*260*130mm |
|
HS-MBJ1500 |
17khz,20khz,25khz,28khz,33khz,40khz,48khz ,Frequency is adjustable |
1500W |
380*260*130mm |
|
HS-MBJ1800 |
17khz,20khz,25khz,28khz,33khz,40khz,48khz ,Frequency is adjustable |
1800W |
380*260*130mm |
|
HS-MBJ2000 |
17khz,20khz,25khz,28khz,33khz,40khz,48khz ,Frequency is adjustable |
2000W |
380*260*130mm |
|
HS-MBJ2400 |
17khz,20khz,25khz,28khz,33khz,40khz,48khz ,Frequency is adjustable |
2400W |
380*260*130mm |
|
HS-MBJ2500 |
17khz,20khz,25khz,28khz,33khz,40khz,48khz ,Frequency is adjustable |
2500W |
380*260*130mm |
|
HS-MBJ2600 |
17khz,20khz,25khz,28khz,33khz,40khz,48khz ,Frequency is adjustable |
2600W |
380*260*130mm |
|
HS-MBJ2800 |
17khz,20khz,25khz,28khz,33khz,40khz,48khz ,Frequency is adjustable |
2800W |
380*260*130mm |
|
HS-MBJ3000 |
17khz,20khz,25khz,28khz,33khz,40khz,48khz ,Frequency is adjustable |
3000W |
380*260*130mm |
Ultrasonic PCB generator could to 3000W,welcome send the enquire
600W-3000W Ultrasonic PCB frequency adjustable,with display board
Above ultrasonic PCB generator 110V-120V or 220V-240V are available,contact with us during your order with detail request
|
