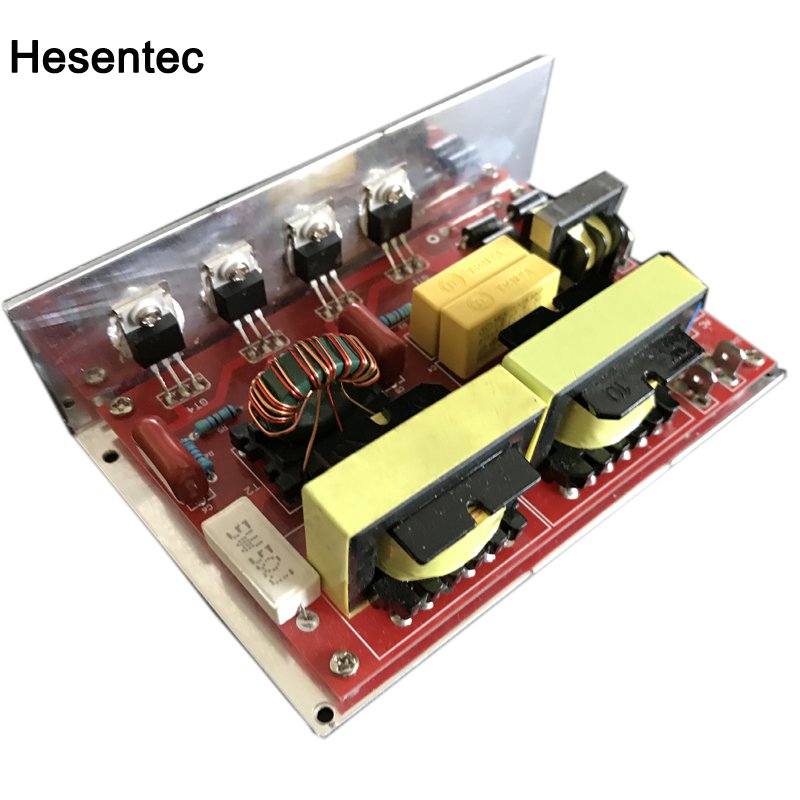

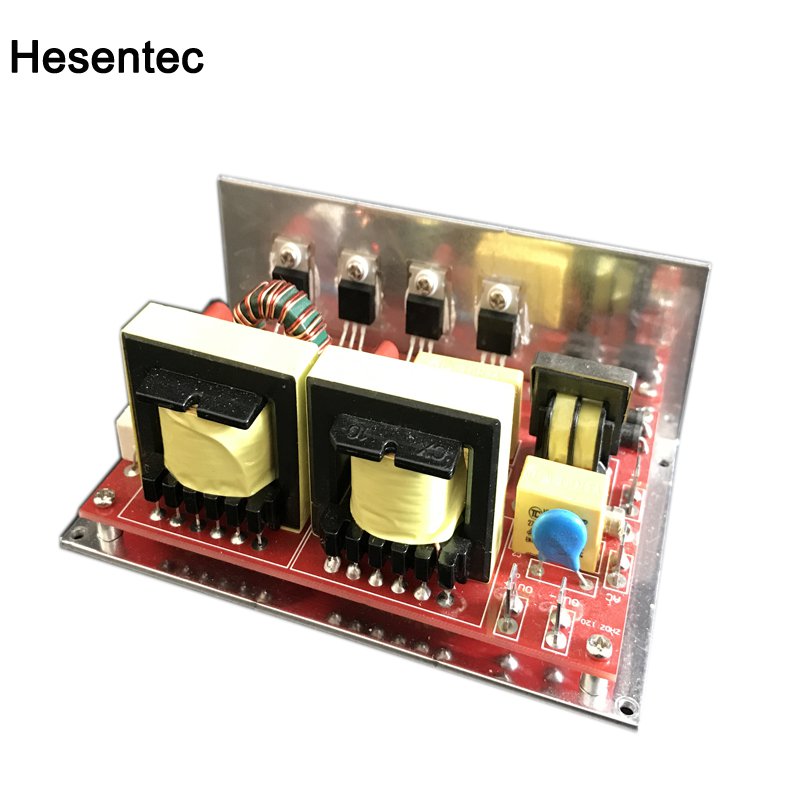

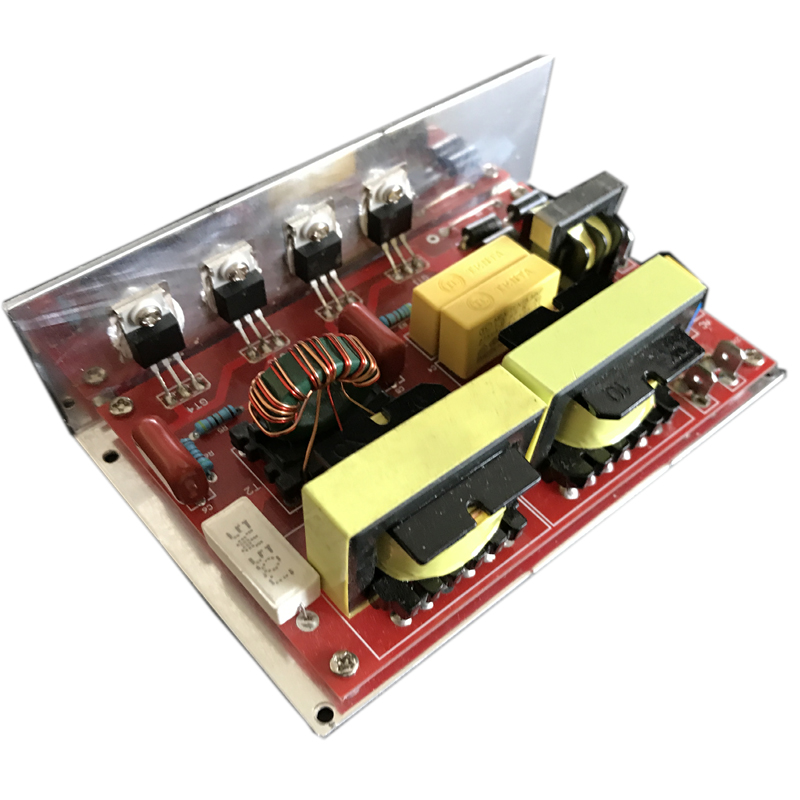

Ultrasonic Transducer Driver 40KHz Ultrasonic PCB Generator Board

Ultrasonic Transducer Driver 40KHz Ultrasonic PCB Generator Board

Ultrasonic Cleaning Equipment Ultrasonic parts of divided into two parts; one ultrasonic transducer, said ultrasonic vibration (or head); the other is the ultrasonic PCB generator, ultrasonic transducer is the ultrasonic PCB generator is converted to electrical signals provided by the mechanical vibration.

Type	Frequency	Power	Dimension (mm)	Transducer numbers
HS-DLB50W	25khz,28khz,33khz,40khz	50W	132×85×45mm	1 piece
HS-DLB60W	25khz,28khz,33khz,40khz	60W	132×85×45mm	1 piece
HS-DLB100W	25khz,28khz,33khz,40khz	100W	132×85×45mm	1-2 pieces
HS-DLB120W	25khz,28khz,33khz,40khz	120W	132×85×45mm	1-2 pieces
HS-DLB150W	25khz,28khz,33khz,40khz	150W	132×85×45mm	1-3 pieces
