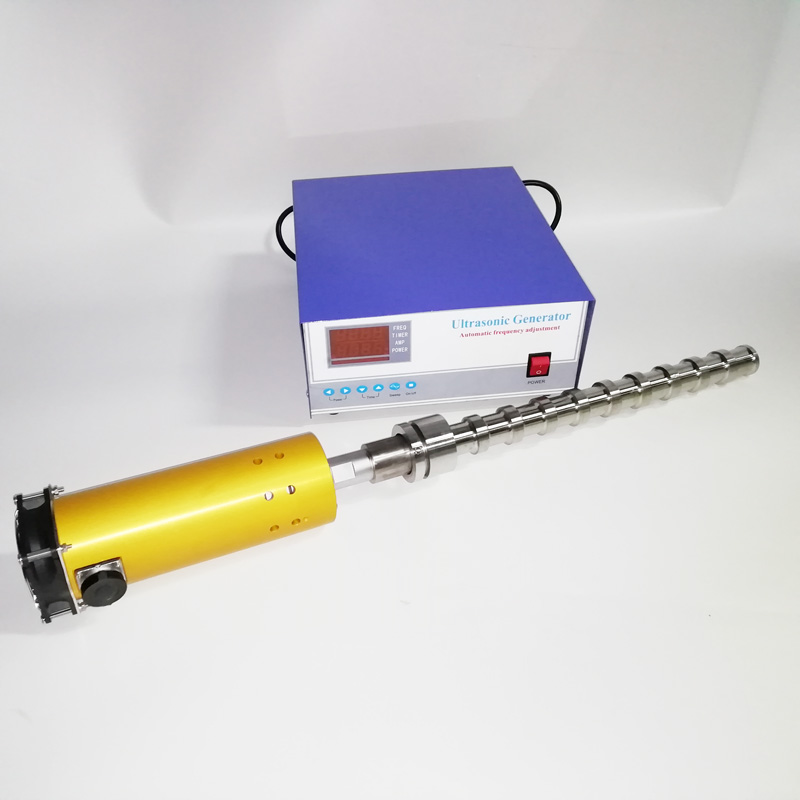

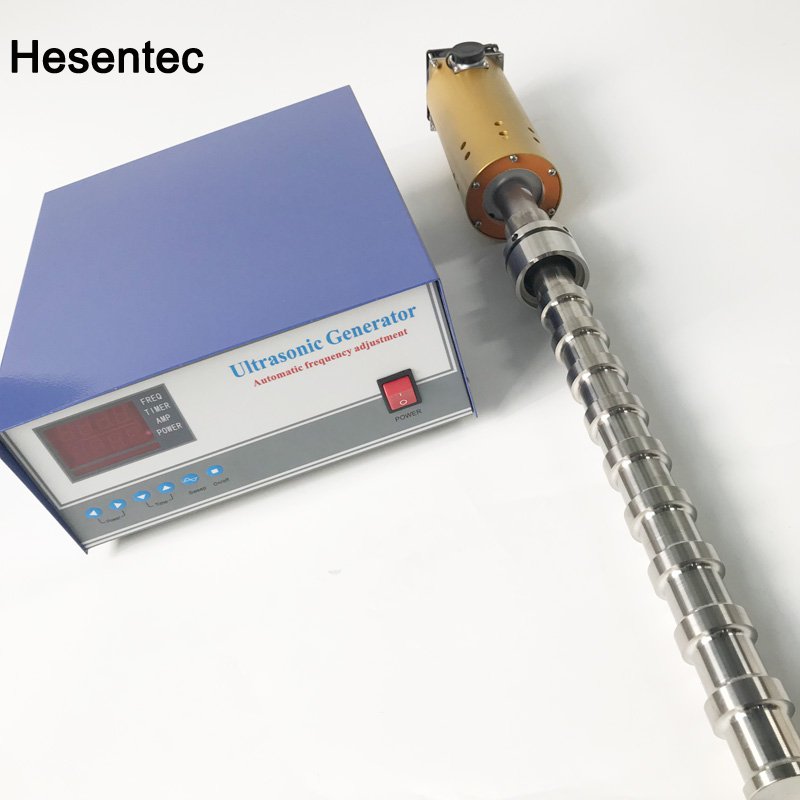

20KHz 2000W Hesen Ultrasonic Reator For Biodiesel

20KHz 2000W Hesen Ultrasonic Reator For Biodiesel

ultrasonic irradiation biodiesel for ultrasonic extraction biodiesel 20khz 1000Watt power



Vibrating rod performance index:

1. Cavitation occurs around the homogeneous vibrating rod, and the ultrasonic energy is distributed around the groove or cylinder very evenly, thus achieving the ideal cleaning effect.

2. The power output of the vibrating rod of Jiayin ultrasonic emulsifier is not affected by the load changes such as liquid level, tank capacity and temperature difference, and the power output is stable and uniform.

3. The service life of the vibration rod of the 20KHz ultrasonic mixer is more than 1.5 times longer than that of the traditional ultrasonic vibration plate.

4. The circular tube design can make the vibrating rod conveniently installed in any position in the groove.

5. Ensure complete sealing and waterproof.


Tubular Equipment Type	Frequency (KHz)	Ultrasound Output(W)	Total Length (mm)	Diameter (mm)	Static Capacity (pF±10%)
HS-ZDB1000W	20	1000	500	Φ50-55	68000
HS-ZDB1500W	20	1500	850	Φ50-55	68000
HS-ZDB2000W	20	2000	1100	Φ50-55	132000
