20KHz Ultrasonic Cavitation Reactor Biodiesel For Petroleum/Food
ultrasonic reator for biodiesel
Equipment features:
Focused full power series can be applied to both laboratory and industrial acoustic chemical treatment to meet the requirements of all users. It has the following characteristics:
1. Ultrasound power density is very high, it can deal with liquid which can not be treated by low power density.
2. Multiple frequencies are available to solve the problem of sound processing in various industries.
3. Accelerating reaction can greatly shorten the original process time.
4. Increasing extraction rate, increasing utilization rate of raw materials and saving resources
5. Reducing Energy Consumption
6. Save Catalysts
7. Breaking macromolecular chains
8. Low Investment and Easy Installation
9. Suitable for application in high pressure, high temperature, toxic and explosive environment
II. Basic Principles
Mechanical action - introducing ultrasonic wave into chemical reaction system, ultrasonic wave can make substance move violently, produce one-way force to accelerate the transfer and diffusion of substance, can replace mechanical stirring, can make substance peel off the surface, so as to renew the interface.
Cavitation - In some cases, the generation of ultrasonic effect is related to the mechanism of cavitation. Acoustic cavitation refers to a series of dynamic processes of small bubbles (holes) existing in liquid under the action of acoustic wave: oscillation, expansion, contraction and even collapse. At the cavitation site, the local state of the liquid changes greatly, resulting in extreme high temperatures and pressures.
III. Application Areas:
Sonochemistry can be applied to almost all chemical reactions, such as extraction and separation, synthesis and degradation, biodiesel production, microbial control, degradation of toxic organic pollutants, biodegradation treatment, biocell comminution, dispersion, condensation, purification, sewage treatment, scale prevention and descaling, etc.

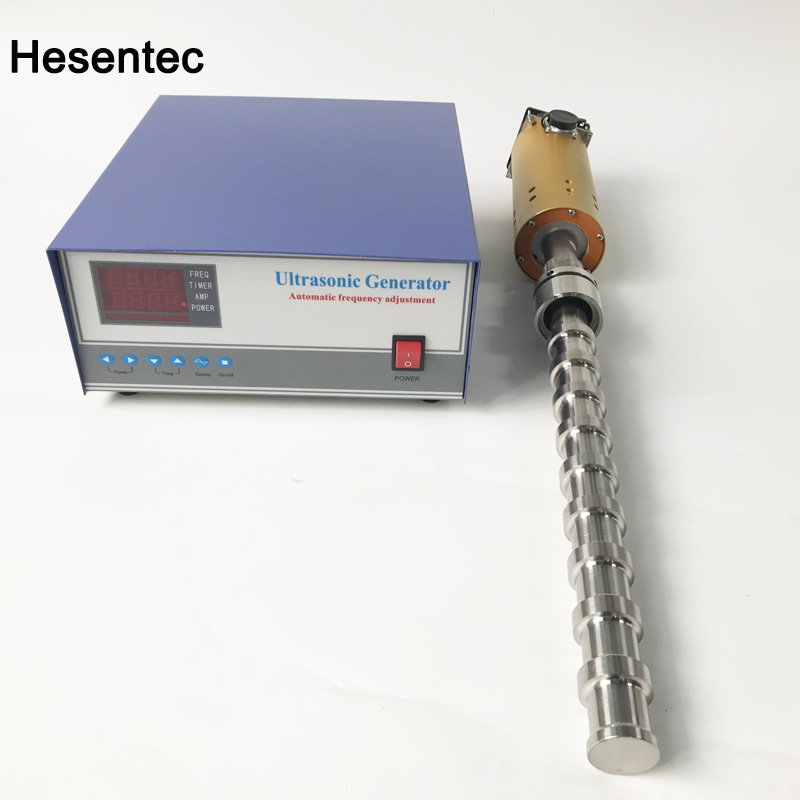

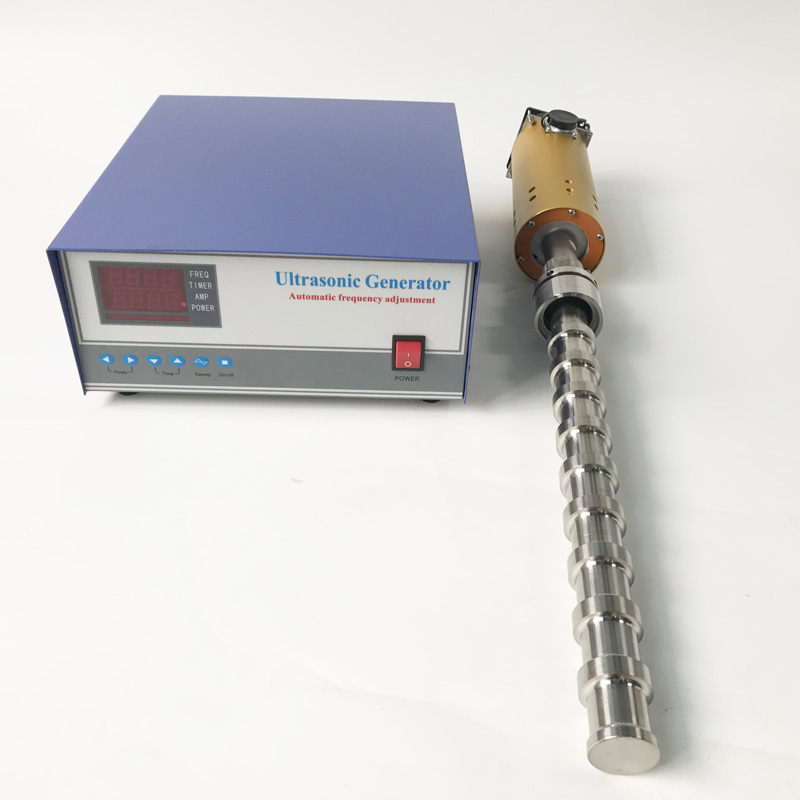

Fourth, basic configuration: vibrator (transducer, horn, transmitter), aluminium alloy shell, flange, drive power supply 1.
Tubular Equipment
Type |
Frequency
(KHz) |
Ultrasound
Output(W) |
Total Length
(mm) |
Diameter
(mm) |
Static Capacity
(pF±10%) |
|
HS-ZDB1000W |
20 |
1000 |
500 |
Φ50-55 |
68000 |
|
HS-ZDB1500W |
20 |
1500 |
850 |
Φ50-55 |
68000 |
|
HS-ZDB2000W |
20 |
2000 |
1100 |
Φ50-55 |
132000 |
