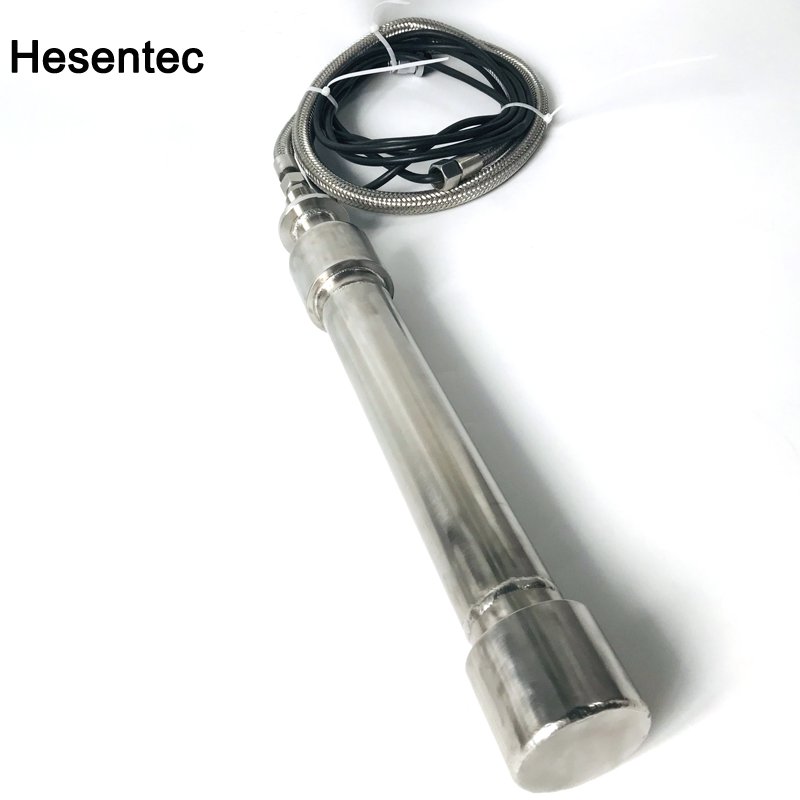

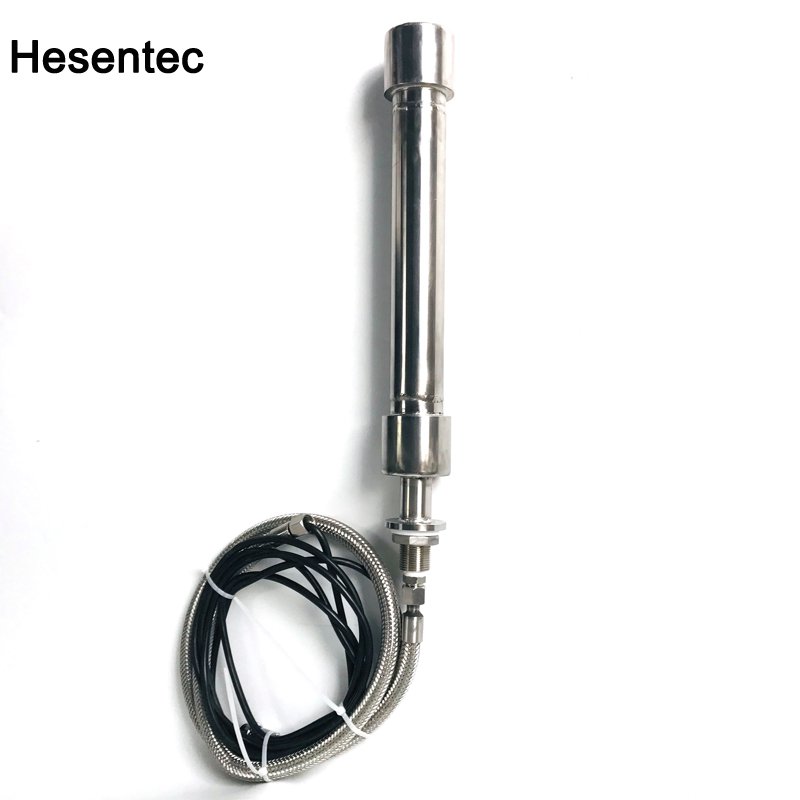

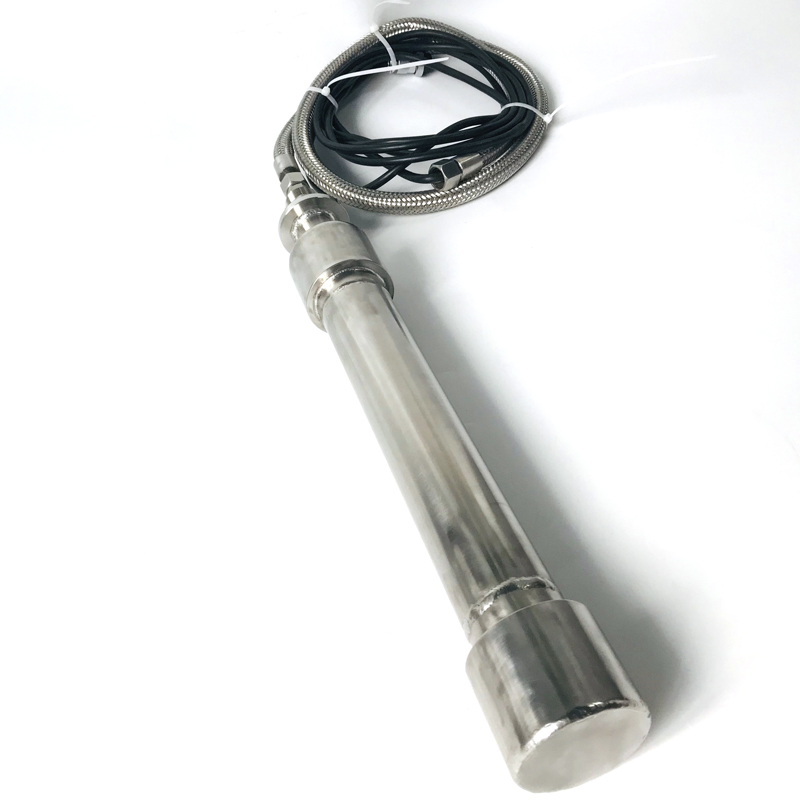

25-27KHz Immersible Rods Portable Tubular Ultrasound Transducer

25-27KHz Immersible Rods Portable Tubular Ultrasound Transducer

Biodiesel Ultrasound transducer is mainly composed of ultrasonic transducer, ultrasonic amplitude changer, ultrasonic tool head and ultrasonic driving power supply. Ultrasound vibrating rod is also called ultrasonic acoustical chemical treatment rod, ultrasonic extraction rod, ultrasonic crushing rod, ultrasonic separating rod, ultrasonic stirring rod, ultrasonic emulsifying rod, ultrasonic homogenizing rod or ultrasonic vibrating rod.
Widely used in biochemical, food, chemical fiber, pharmaceutical, chemical refining, vacuum ultrasound and other industries, greatly improve the speed of emulsification, decomposition, stirring, catalysis and other reactions, thereby reducing the manufacturing costs of related industries and their products.

Tubular Equipment Type	Frequency (KHz)	Ultrasound Output(W)	Total Length (mm)	Diameter (mm)	Static Capacity (pF±10%)
HS-GSZDB1000W	25-27	1000	500	Φ50-55	68000
HS-GSZDB1500W	25-27	1500	850	Φ50-55	68000
HS-GSZDB2000W	25-27	2000	1100	Φ50-55	132000
