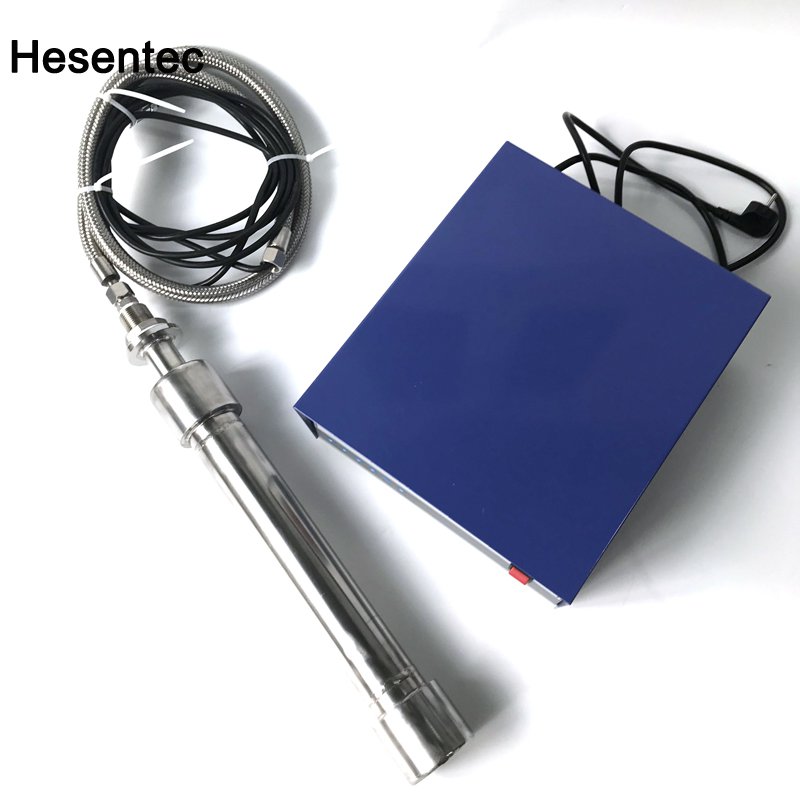

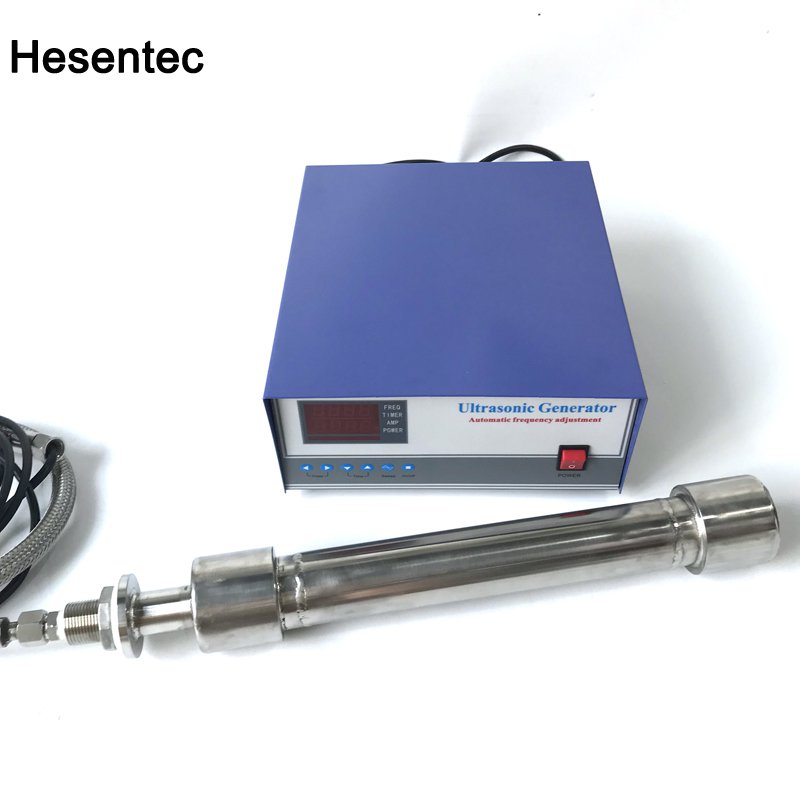

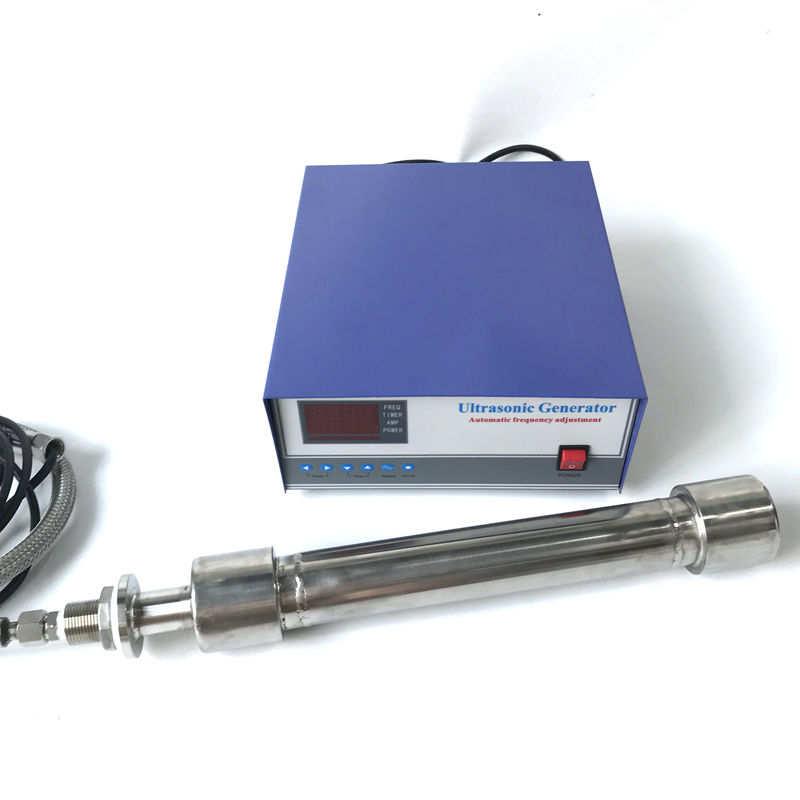

Immersion Ultrasonic Transducer Industrial Cleaner Tube Rods 27K

Immersion Ultrasonic Transducer Industrial Cleaner Tube Rods 27K

Ultrasound tubular bar is an instrument that converts electric energy into sound energy through transducer. This energy is transformed into dense small bubbles through liquid medium. These small bubbles burst rapidly and produce energy like small bombs, thus playing the role of breaking up cells and other substances. The working principle of the ultrasonic rod is based on the cavitation effect of ultrasound in the liquid. The transducer generates high-intensity shear force through the horn in the liquid at the top of the tool head to form high-frequency alternating water pressure, which causes the cavity to expand and explode and smash the cells. On the other hand, due to the intense disturbance of ultrasonic wave in liquid, the particles will produce a great acceleration, which will collide with each other or with the wall and break up.


Tubular Equipment Type	Frequency (KHz)	Ultrasound Output(W)	Total Length (mm)	Diameter (mm)	Static Capacity (pF±10%)
HS-GSZDB1000W	25-27	1000	500	Φ50-55	68000
HS-GSZDB1500W	25-27	1500	850	Φ50-55	68000
HS-GSZDB2000W	25-27	2000	1100	Φ50-55	132000
