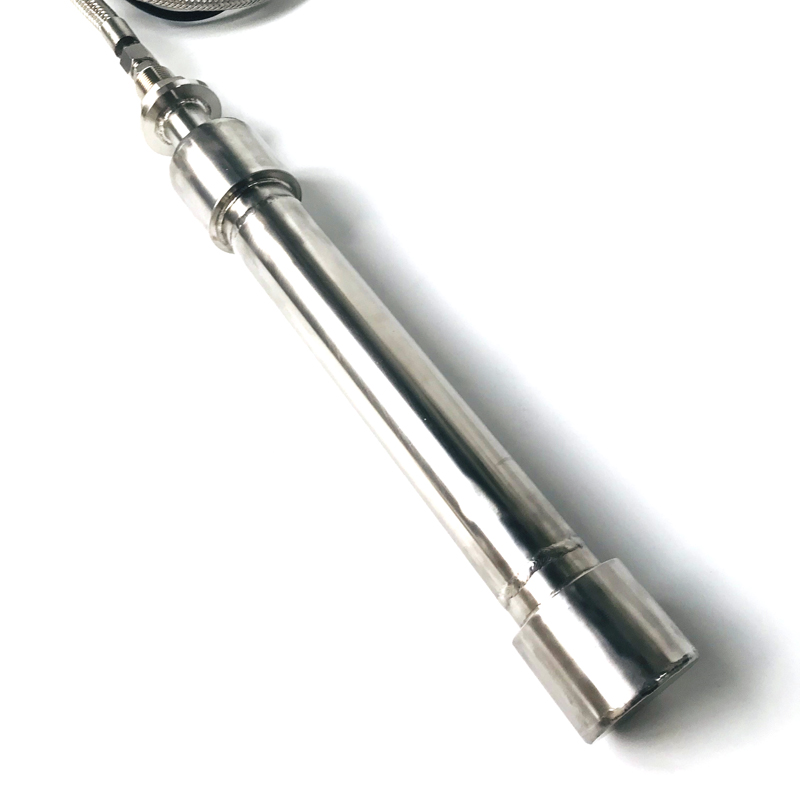

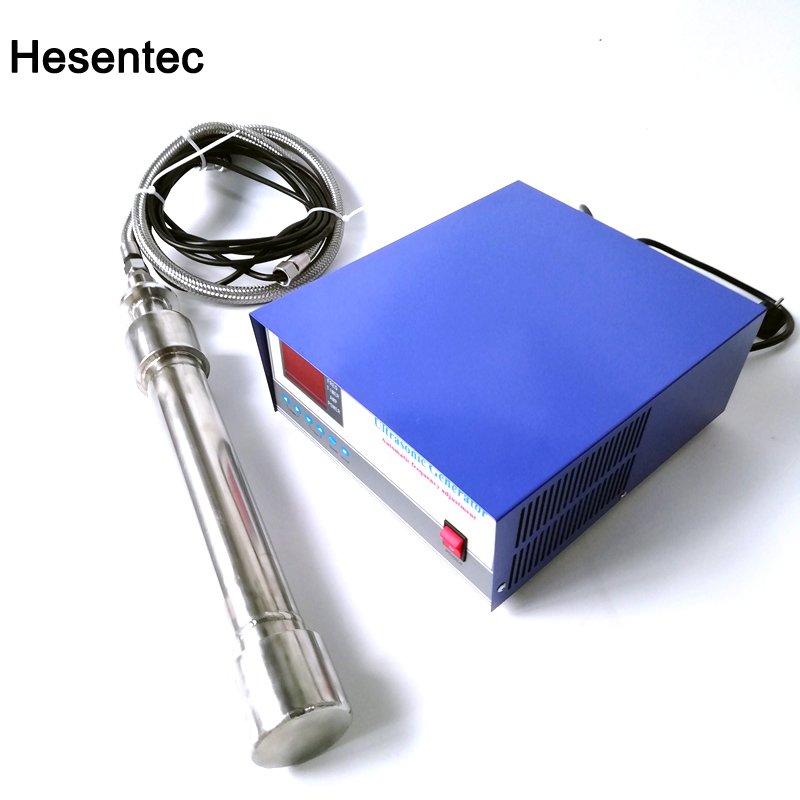

25KHz Fully Immersible Ultrasonic Tubular Transducer Cleaner Rod

25KHz Fully Immersible Ultrasonic Tubular Transducer Cleaner Rod

The amplitude of ultrasonic cleaning tubular rod is between the ultrasonic cleaning machine and the processor, so the direction of use is flexible. Ultrasound tubular stick can be used for cleaning any grooved body, can be placed freely in any position of the groove, and occupies a very small volume space, can be very flexible to use. Ultrasound is a well-known cleaning application, such as surface, partial cleaning. The intensity of ultrasonic wave used in dispersive application is much higher than that of typical ultrasonic cleaning. When the wet part of the ultrasonic device is designed to be cleaned, the ultrasonic vibration can be used to assist in washing and cleaning.

Tubular Equipment Type	Frequency (KHz)	Ultrasound Output(W)	Total Length (mm)	Diameter (mm)	Static Capacity (pF±10%)
HS-GSZDB1000W	25-27	1000	500	Φ50-55	68000
HS-GSZDB1500W	25-27	1500	850	Φ50-55	68000
HS-GSZDB2000W	25-27	2000	1100	Φ50-55	132000
