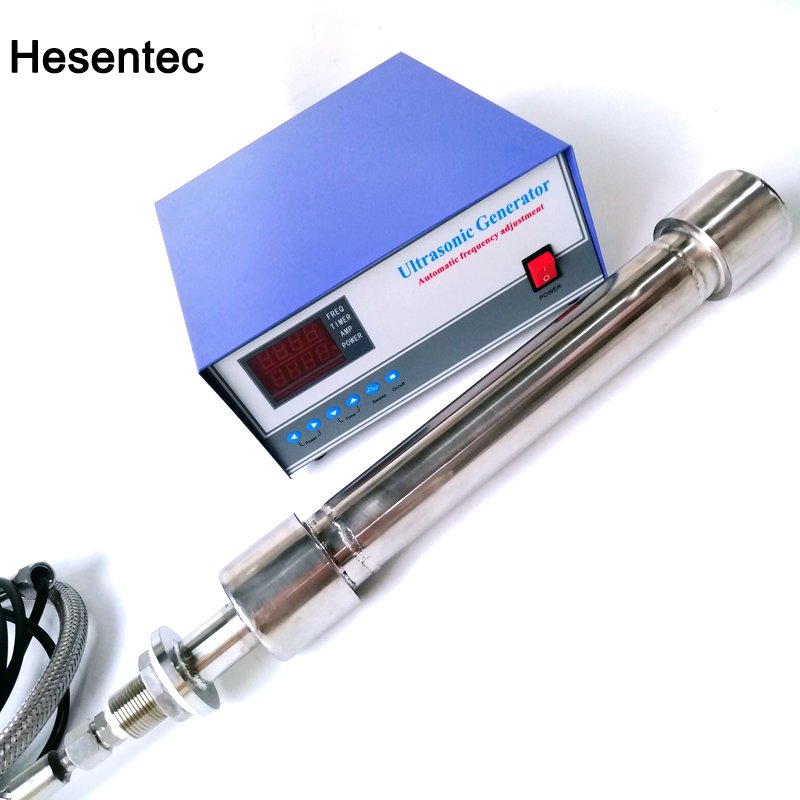

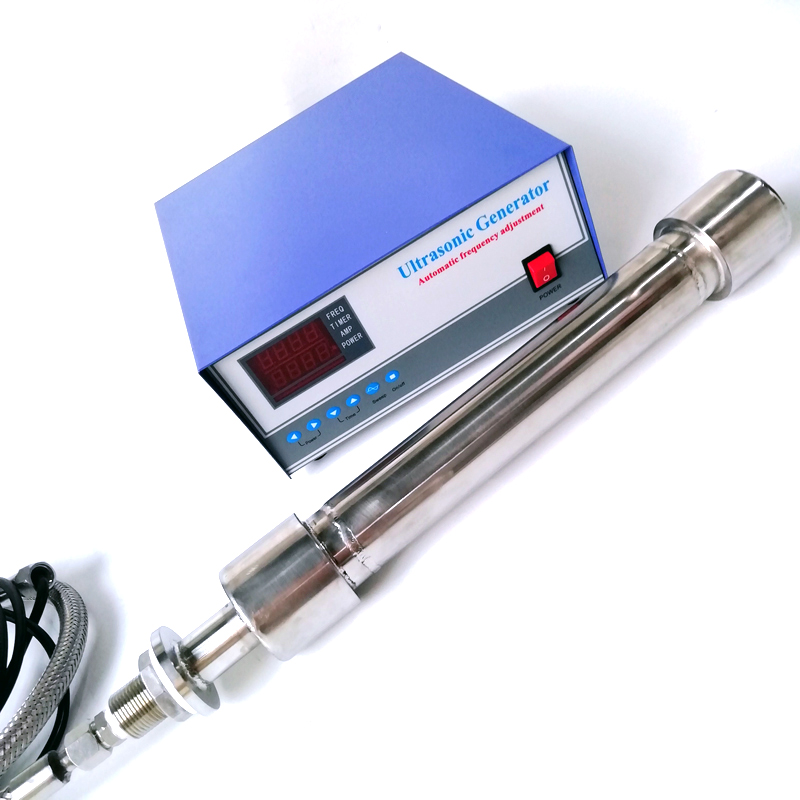

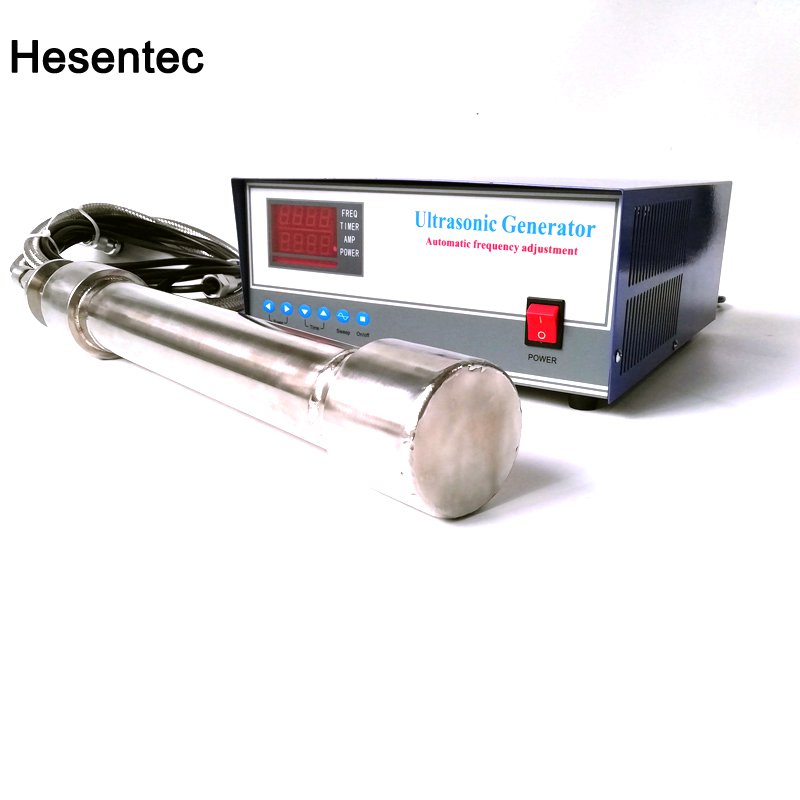

Immersion tubular Equipment Industrial Cleaner Shock Stick 27KHz

Immersion tubular Equipment Industrial Cleaner Shock Stick 27KHz

The working principle of the ultrasonic vibrating rod is based on the cavitation effect of ultrasound in the liquid. The transducer generates high-intensity shear force through the horn in the liquid at the top of the tool head to form high-frequency alternating water pressure, which causes the cavity to expand and explode and smash the cells. On the other hand, due to the intense disturbance of ultrasonic wave in liquid, the particles will produce a great acceleration, which will collide with each other or with the wall and break up. The role of power ultrasound in liquids is dispersion effect. The dispersion of ultrasound in liquids mainly depends on the ultrasonic cavitation of liquids.

Tubular Equipment Type	Frequency (KHz)	Ultrasound Output(W)	Total Length (mm)	Diameter (mm)	Static Capacity (pF±10%)
HS-GSZDB1000W	25-27	1000	500	Φ50-55	68000
HS-GSZDB1500W	25-27	1500	850	Φ50-55	68000
HS-GSZDB2000W	25-27	2000	1100	Φ50-55	132000
