Ultrasonic Vibrating Rod With Generator Carbon Fiber Diffusion

2000W Ultrasonic Vibrating Rod With Generator Carbon Fiber Diffusion

Application areas:
      Sonochemistry can be applied to almost all chemical reactions such as extraction and separation, synthesis and degradation, biodiesel production, microbial treatment, degradation of toxic organic pollutants, biodegradation, biological cell comminution, dispersion, coacervation, purification and wastewater treatment. Anti-scaling and descaling areas and so on.

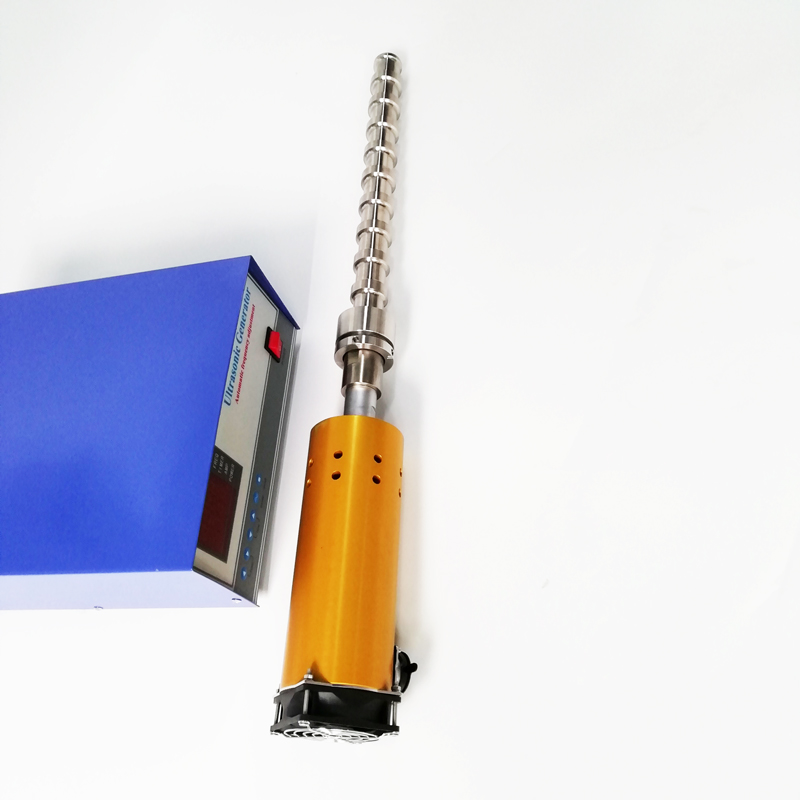

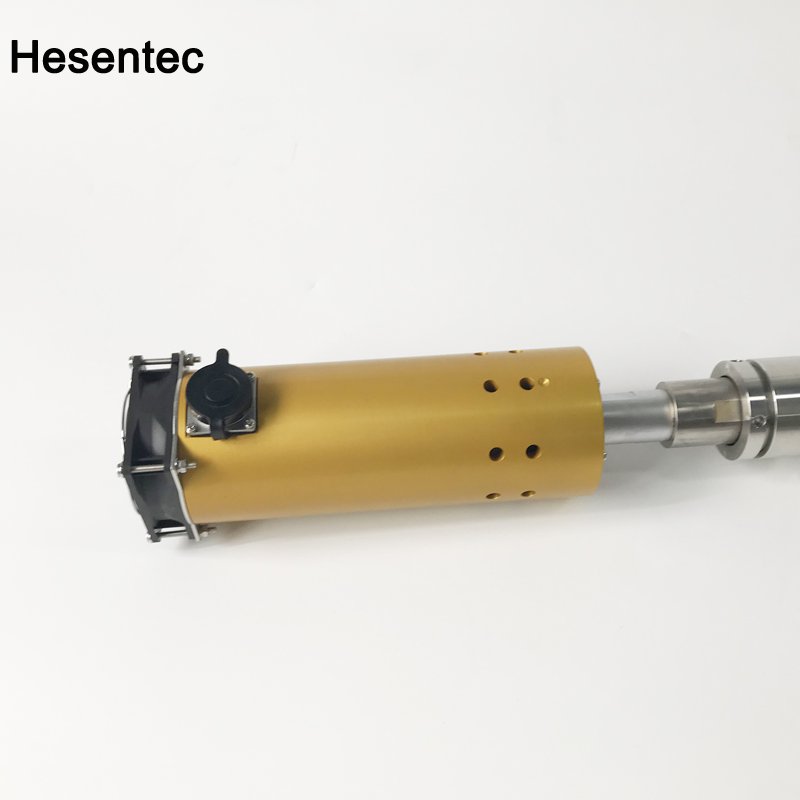

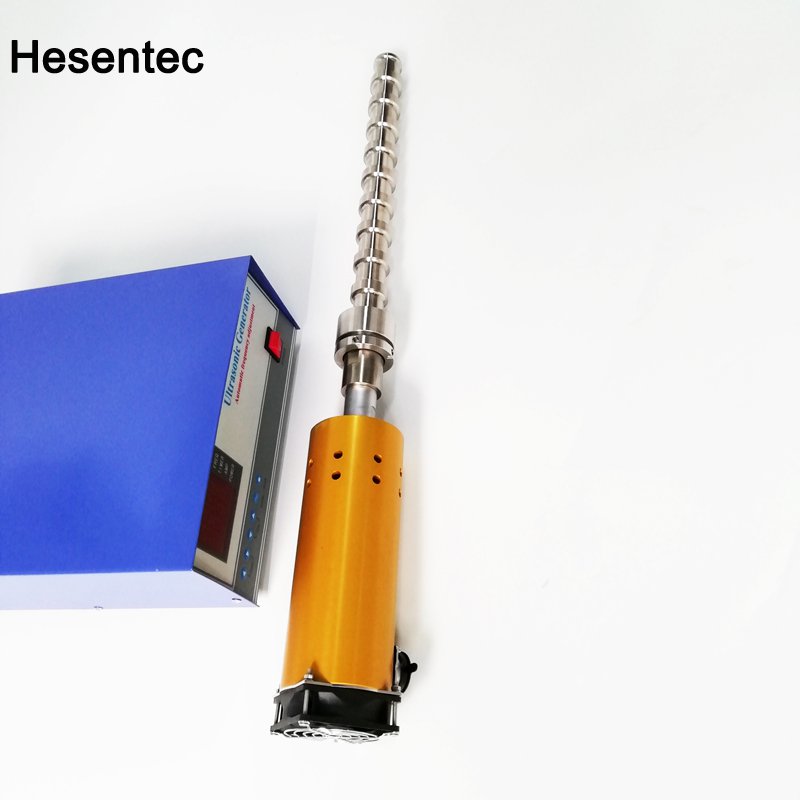

Basic configuration: vibrator (transducer, horn, emitter), aluminum alloy casing, flange, and one drive power supply.
This product can be customized according to the actual use of the customer, and the requirements can be customized:
High power box power: 2000 watts
Tool launcher frequency: 20KHz
Input voltage: 110V-240V; 50HZ-60HZ
Length of the launch head below the flange: custom made; bracket length: 50cm or customized
Housing: aluminum alloy case or plastic case, fan can be installed on the top of the case, and the case can be equipped with cooling holes.
Power adjustment mode: continuous or split type, adjustment range 60%-100%
Customizing the launching head: According to the various liquids, gels, corrosive conditions and reactor size requirements to be processed, the material is: titanium alloy.

Tubular Equipment Type	Frequency (KHz)	Ultrasound Output(W)	Total Length (mm)	Diameter (mm)	Static Capacity (pF±10%)
HS-ZDB1000W	20	1000	500	Φ50-55	68000
HS-ZDB1500W	20	1500	850	Φ50-55	68000
HS-ZDB2000W	20	2000	1100	Φ50-55	132000
