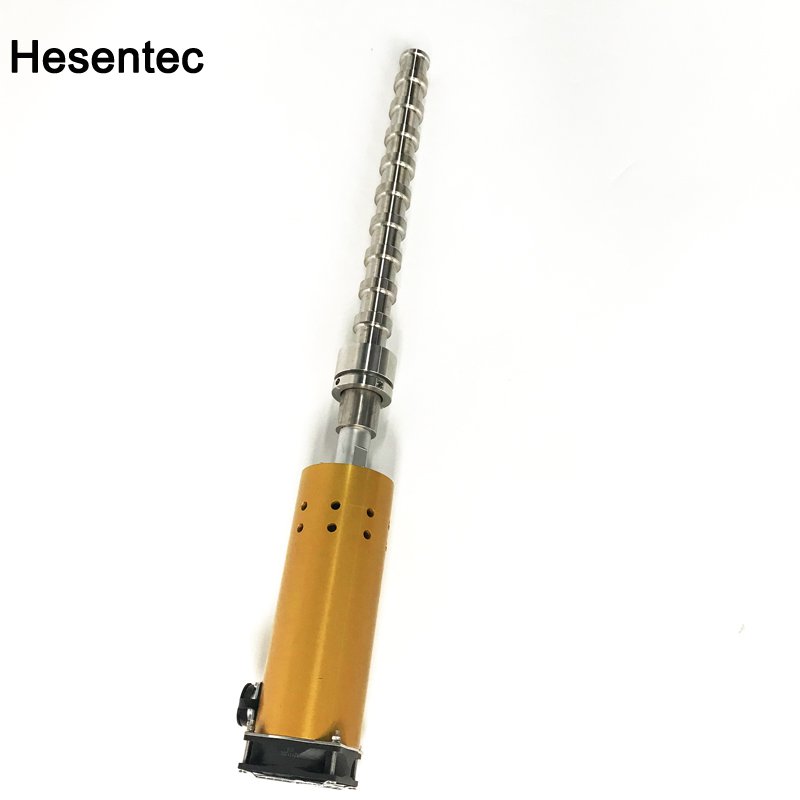

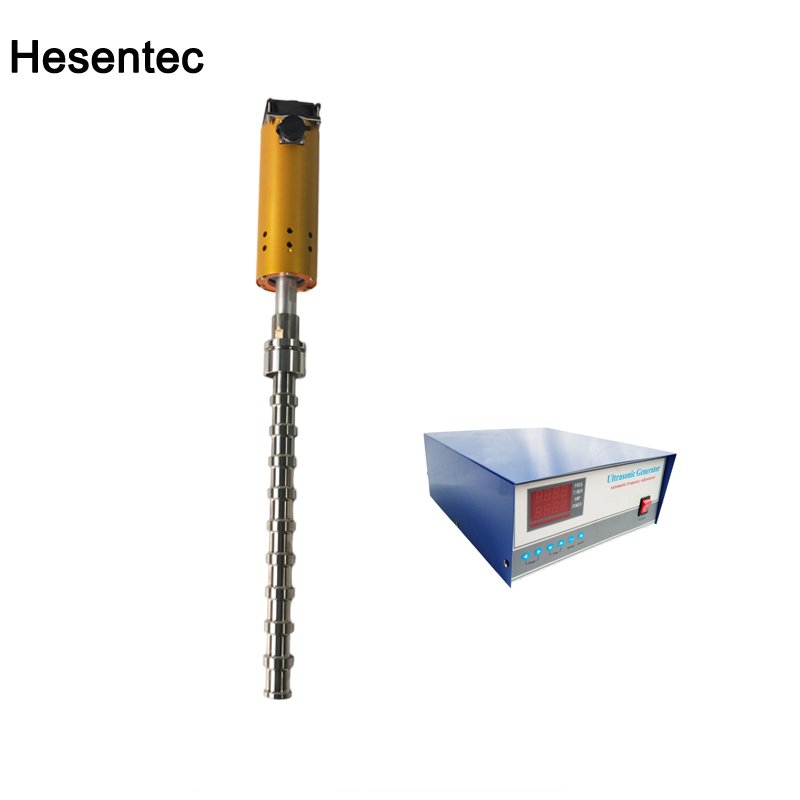

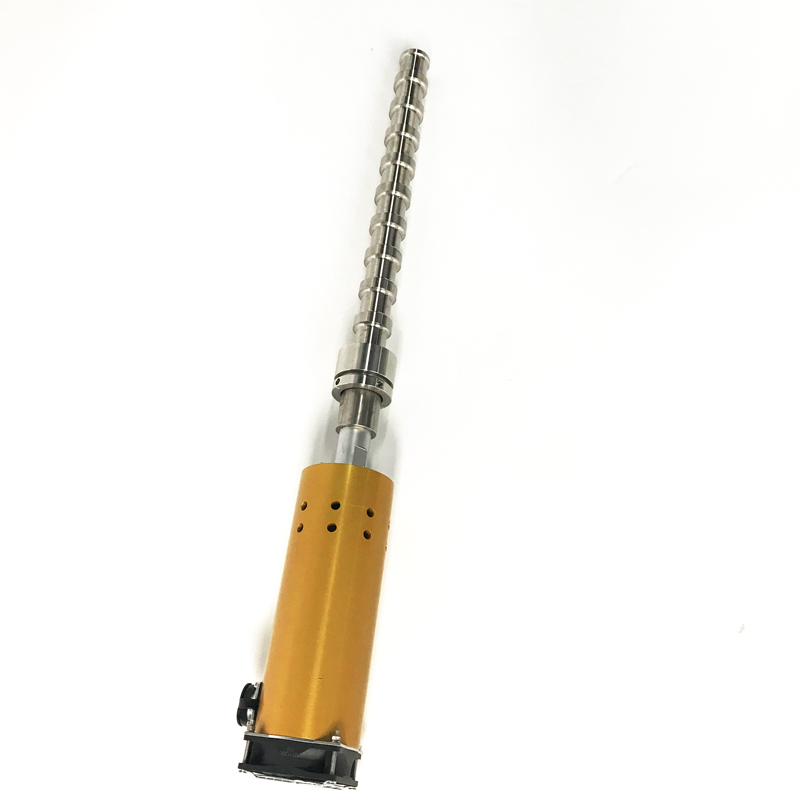

20KHz 2000W Immersuble Ultrasonic Cleaning Vibrating Rod

20KHz 2000W Immersuble Ultrasonic Cleaning Vibrating Rod

An important application of ultrasonic dispersion is the ability to disperse and depolymerize solids in a liquid. Ultrasonic cavitation produces high shear forces that break up the particle agglomerates into individual dispersed particles.
A common method of preparing powders into liquids, such as paints, inks, shampoos, beverages or polishing media. Individual particles are combined by various physical and chemical attractive forces (including van der Waals forces and liquid surface tension), and are more pronounced for higher viscosity liquids such as polymers or resins. This attraction must be overcome to depolymerize and disperse the particles into the liquid medium. The application of mechanical stress can disrupt the agglomeration of the particles while the liquid is pressed between the particles. The powder is typically dispersed in a liquid using different techniques. This includes high pressure homogenizers, agitator bead mills, jet impact mills and rotor-stator mixers.

Tubular Equipment Type	Frequency (KHz)	Ultrasound Output(W)	Total Length (mm)	Diameter (mm)	Static Capacity (pF±10%)
HS-ZDB1000W	20	1000	500	Φ50-55	68000
HS-ZDB1500W	20	1500	850	Φ50-55	68000
HS-ZDB2000W	20	2000	1100	Φ50-55	132000
