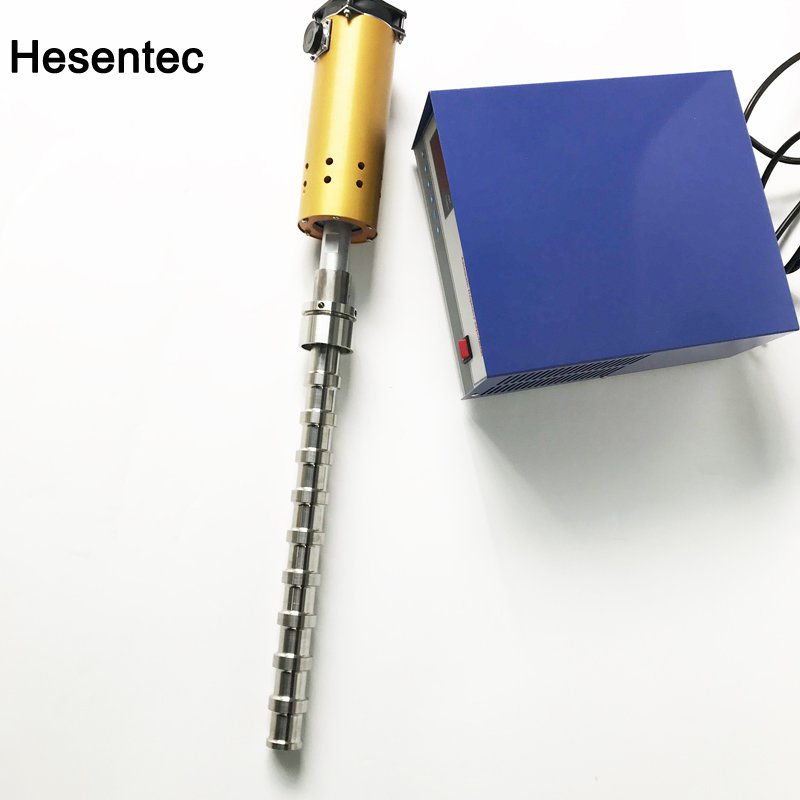

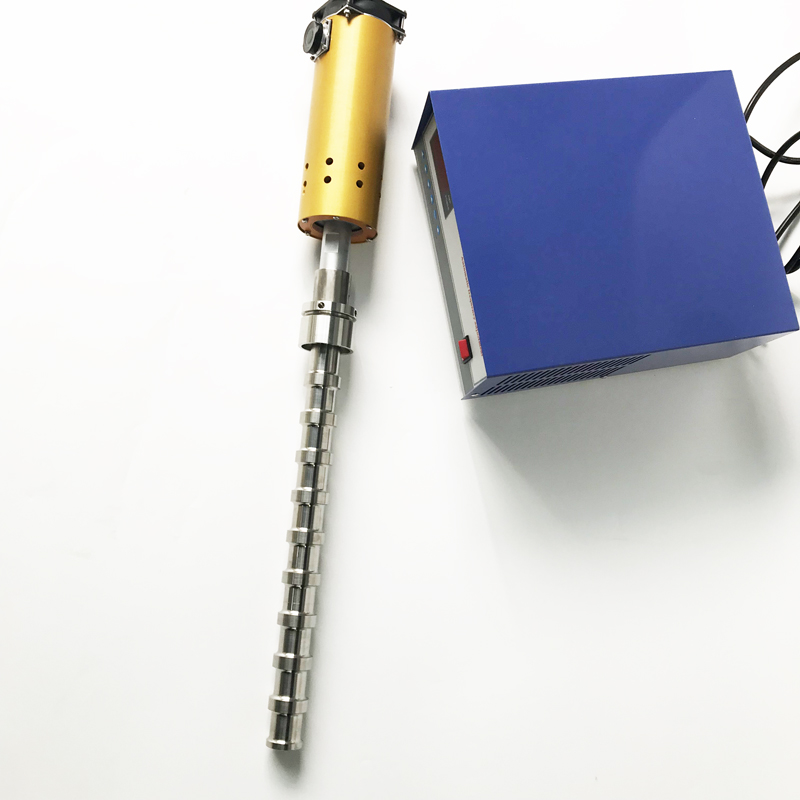

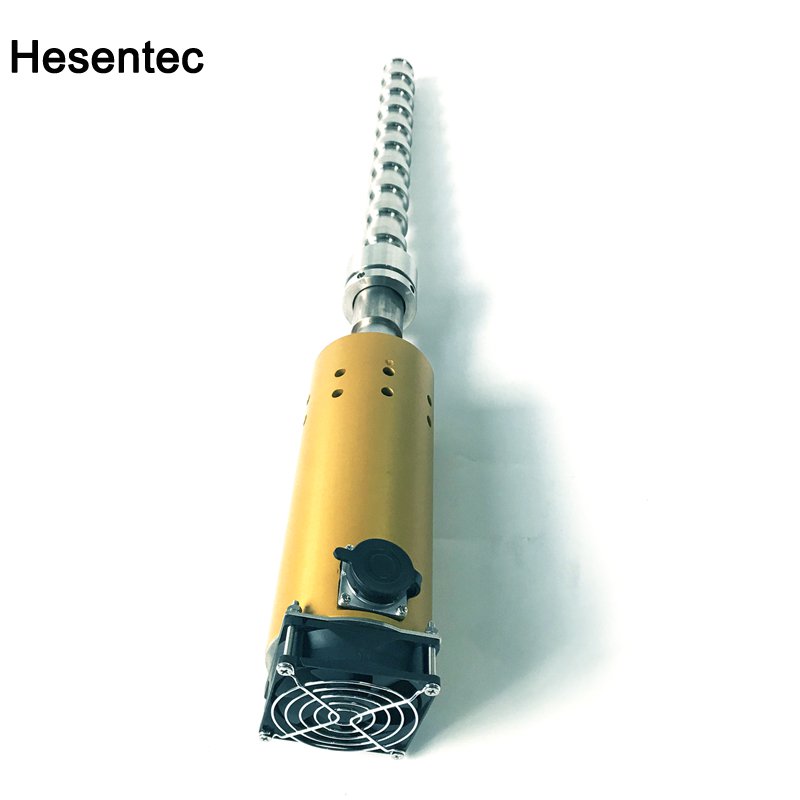

Ultrasound Cleaning Rod Ultrasonic Liquid Processor 28KHz 500W

Ultrasound Cleaning Rod Ultrasonic Liquid Processor 28KHz 500W

Ultrasonic vibrators are also called ultrasonic sonication rods, ultrasonic extraction rods, ultrasonic pulverizing rods, ultrasonic separation rods, ultrasonic stirring rods, ultrasonic emulsification rods, ultrasonic homogenizing rods or ultrasonic vibrating rods, etc., depending on their application range and field. . It is mainly composed of ultrasonic transducer, ultrasonic variable amplitude , ultrasonic tool head and ultrasonic driving power source. Compared with the traditional ultrasonic vibration plate, the ultrasonic vibration rod has the characteristics of wider application range and longer service life. Industrial applications in the use of ultrasonic vibrating rods for dispersion, extraction, cleaning, chemical reactions, water treatment, etc., is a very mature and widely used technology.
1. The equipment upgrade is simple, no need to change the customer's existing production equipment and process 2. The focus design, the energy density is large, the output and efficiency can be obviously improved, the ultrasonic energy conversion rate is up to 80% or more. 3. Ultrasonic numerical control is used. Power supply, full digital circuit control, strong anti-interference ability 4, frequency and power can be monitored in real time, power is continuously adjustable, with automatic alarm protection function, easy to operate; 5, ultrasonic vibrating rod round tube design, easy to install, through standard method Lanpan docking installation reduces costs and saves energy; 6. The equipment can be used in various working environments such as high temperature, high pressure and high viscosity, and can be customized according to customer requirements, or can be used in combination to increase radiation. Area, increase the output 7. The power output of the ultrasonic vibrating bar is not affected by the liquid level, the tank volume and the temperature difference, etc. The power output is stable and uniform; 8. The ultrasonic vibrating rod is more than 10 times the service life of the traditional ultrasonic vibrating plate. The ultrasonic vibrating rod is sealed and waterproof, and it is safe to use. 10, the use of tubular vibrating rods in non-acid liquids below 40 degrees; solid vibrating rods can be used in any high temperature, high pressure and high viscosity, but the effective length will not exceed 700mm.

Tubular Equipment Type	Frequency (KHz)	Ultrasound Output(W)	Total Length (mm)	Diameter (mm)	Static Capacity (pF±10%)
HS-ZDB1000W	20	1000	500	Φ50-55	68000
HS-ZDB1500W	20	1500	850	Φ50-55	68000
HS-ZDB2000W	20	2000	1100	Φ50-55	132000
