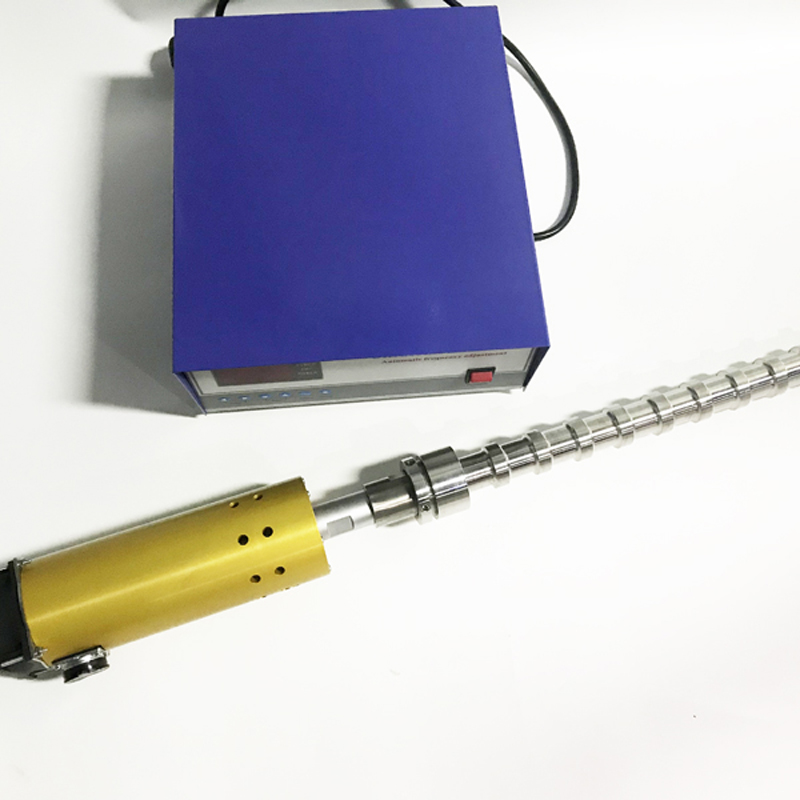

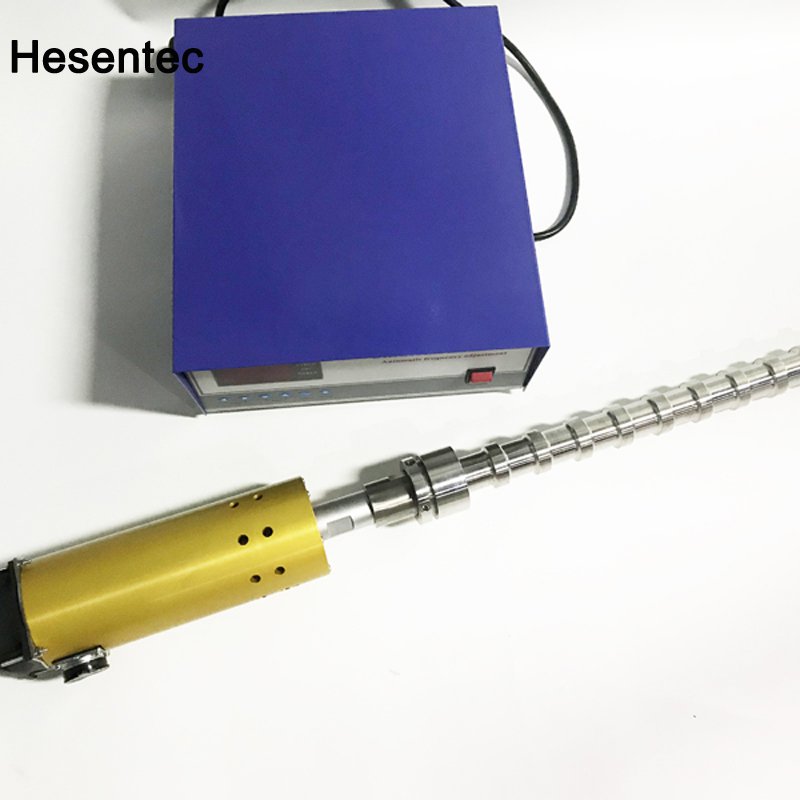

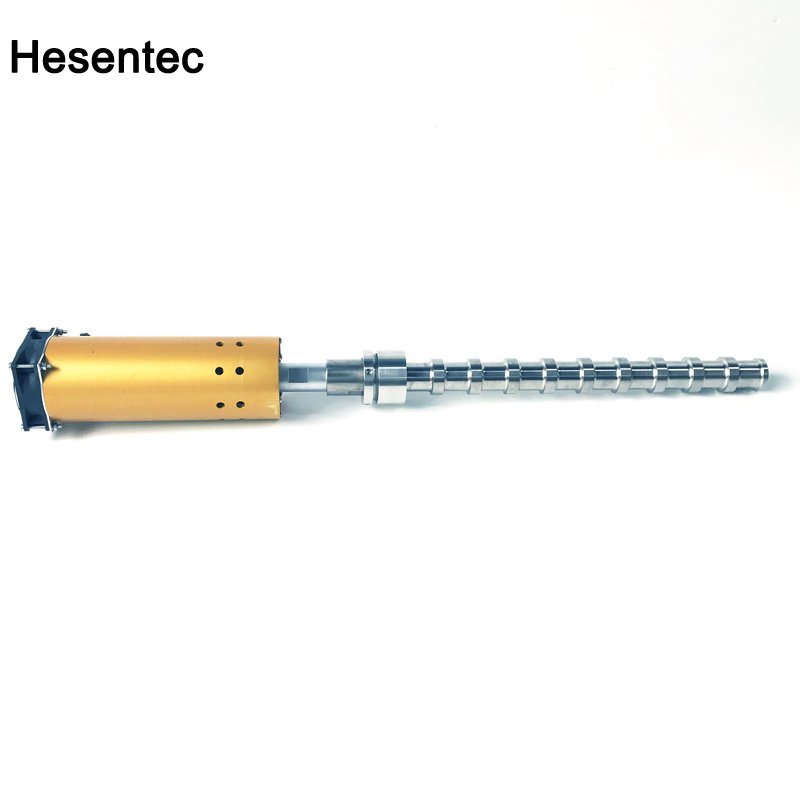

2000W High Power Ultrasonic Cleaning Vibration Rod For Biodiesel

2000W High Power Ultrasonic Cleaning Vibration Rod For Biodiesel

Ultrasonic reactors use ultrasonic vibrating rods for dispersion, extraction, cleaning, chemical reaction/water treatment, etc. in industrial applications. Applications include biochemistry, laboratory research, chemicals, biodiesel, water treatment, food and cosmetics, and graphite. A new material, pharmaceutical and other industries.
Ultrasonic reactor concentrating ultrasonic probe concentrates energy, and can obtain strong sound intensity on the end face of ultrasonic radiation. Due to the energy of horn, the density of sound energy is greatly improved; the reaction can be accurately designed according to the density of sound energy. The emitting end face of the probe is generally designed to be detachable, so that the probe of the appropriate size of the end face can be selected at any time according to the required sound intensity. At the same time, when the probe is severely corroded by cavitation, only the end portion needs to be replaced without having to replace the price. Expensive whole vibration rod.

Tubular Equipment Type	Frequency (KHz)	Ultrasound Output(W)	Total Length (mm)	Diameter (mm)	Static Capacity (pF±10%)
HS-ZDB1000W	20	1000	500	Φ50-55	68000
HS-ZDB1500W	20	1500	850	Φ50-55	68000
HS-ZDB2000W	20	2000	1100	Φ50-55	132000
