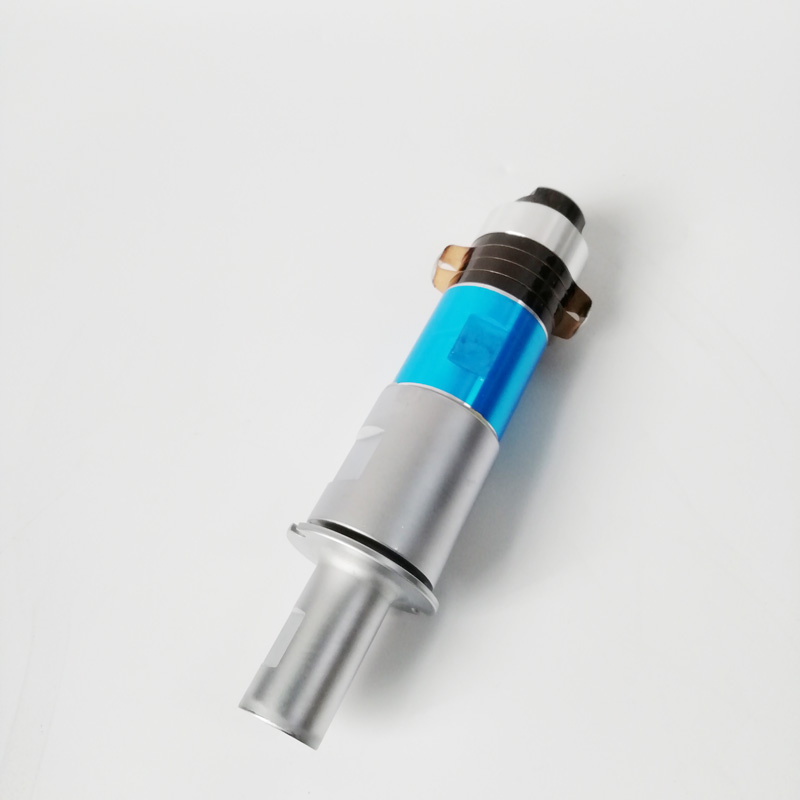

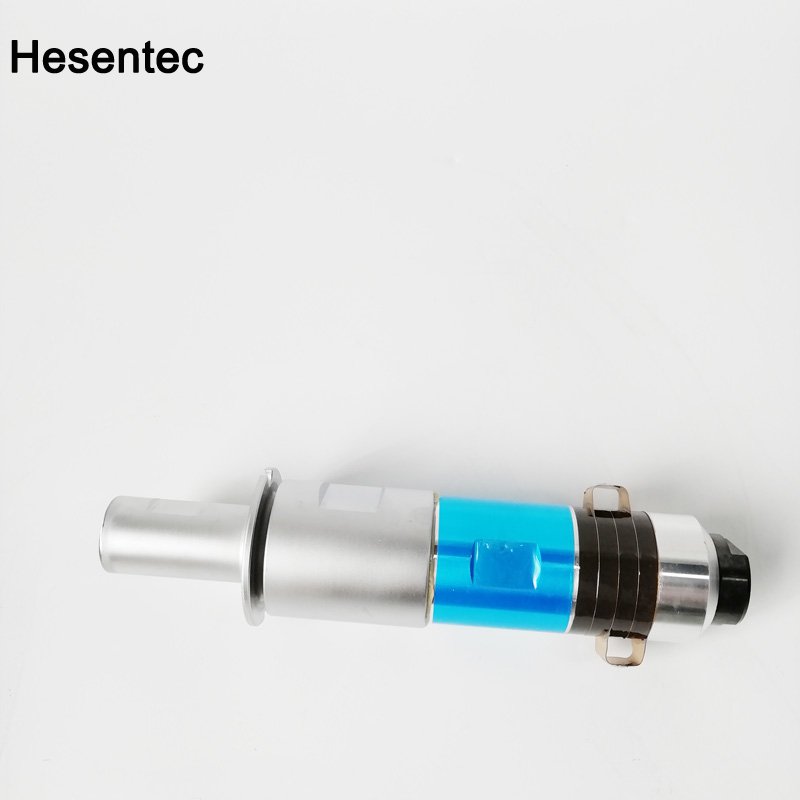

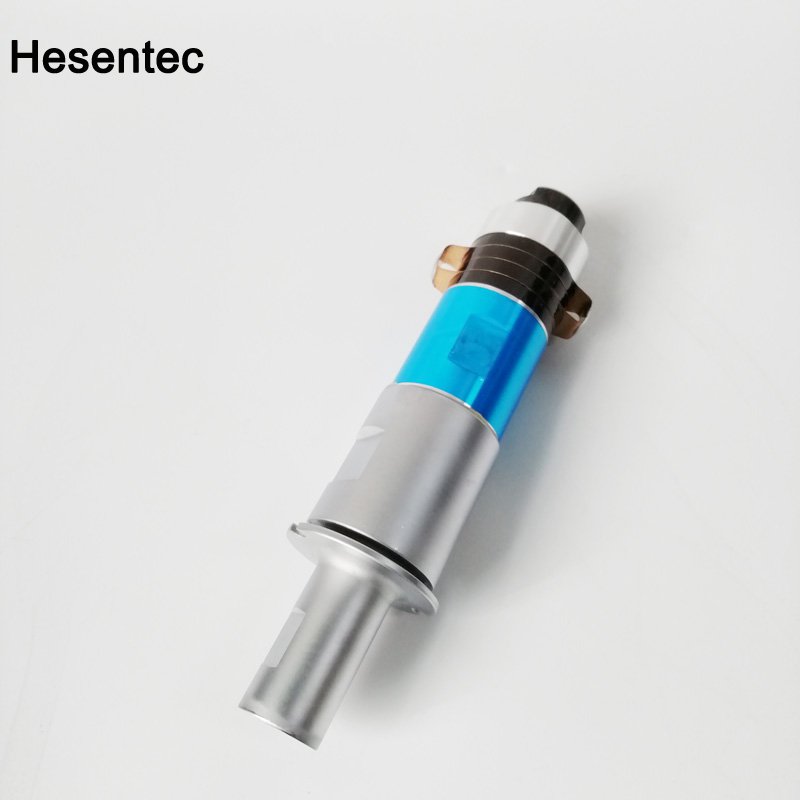

1500W Hesentec Ultrasonic Sealing Transducer For Welding Machine

1500W Hesentec Ultrasonic Sealing Transducer For Welding Machine Introduction

1500W Hesentec Ultrasonic Sealing Transducer For Welding Machine

Ultrasonic plastic welding machine transmits ultrasonic waves through the welding head to the plastic processing parts, so that the two plastic joint surfaces are subjected to intense friction by the action of ultrasonic waves, and the friction heat melts the plastic joint surface to complete the gluing. The technology has the advantages of high speed, strong weld seam, etc., and more importantly, it can automate the production and processing of plastic products. Ultrasonic plastic welding machine can be used for plastic welding, embedding, forming, riveting, spot welding, cutting, sewing and other operations. As long as the welding head is changed, it can be used in a variety of applications.

Type Full-length(mm) Joint Bolt(mm) Frequency(KHz) Resonance Impedance(Ω) Capacity(pF) Input Power
(W)
HS-HJHNQ152500 P8 153 M20×1.5 15 15 13000 2500
HS-HJHNQ152000 P8 167 M20×1.5 15 10 9500 2000
HS-HJHNQ151500 P4 171 M18×1.5 15 12 12500 1500
HS-HJHNQ151800 P4 118 M20×1.5 20 15 15000 1800
HS-HJHNQ202000 P8 128 M18×1 20 10 11000 2000
HS-HJHNQ202000 P8 124 M18×1.5 20 12 10000 1500
HS-HJHNQ20700 P8 112 1/2-20 UNF 20 15 9000 700
HS-HJHNQ20900 P8 133 1/2-20 UNF 20 15 10000 900
HS-HJHNQ20600 P8 121 M18×1.5 20 15 6000 600
HS-HJHNQ30500 P8 77 M10×1.5 30 5 5500 500
HS-HJHNQ28200 P4 92.1 M10×1 28 20 3000 200
HS-HJHNQ28100 P8 91 M8×1 28 25 2200 100
HS-HJHNQ28250 P8 94 1/2-20 UNF 28 20 4000 250
HS-HJHNQ202000 P8 128 1/2-20 UNF 20 10 20000 2000
HS-HJHNQ201500 P8 124 1/2-20 UNF 20 10 16000 1500
HS-HJHNQ201300 P8 128 1/2-20 UNF 20 10 12500 1300
HS-HJHNQ201500 P8 132 1/2-20 UNF 20 10 11000 1500
HS-HJHNQ20900 P8 123 1/2-20 UNF 20 10 9500 900
HS-HJHNQ152000 P4 171 M18×1.5 15 12 10000 2000
HS-HJHNQ35100 P8 71 M8×1 35 25 2200 100
HS-HJHNQ38100 P8 66 M8×1.25 38 40 1200 100
HS-HJHNQ38200 P4 65 M8×1 38 14 3300 200

1500W Hesentec Ultrasonic Sealing Transducer For Welding Machine
1500W Hesentec Ultrasonic Sealing Transducer For Welding Machine
