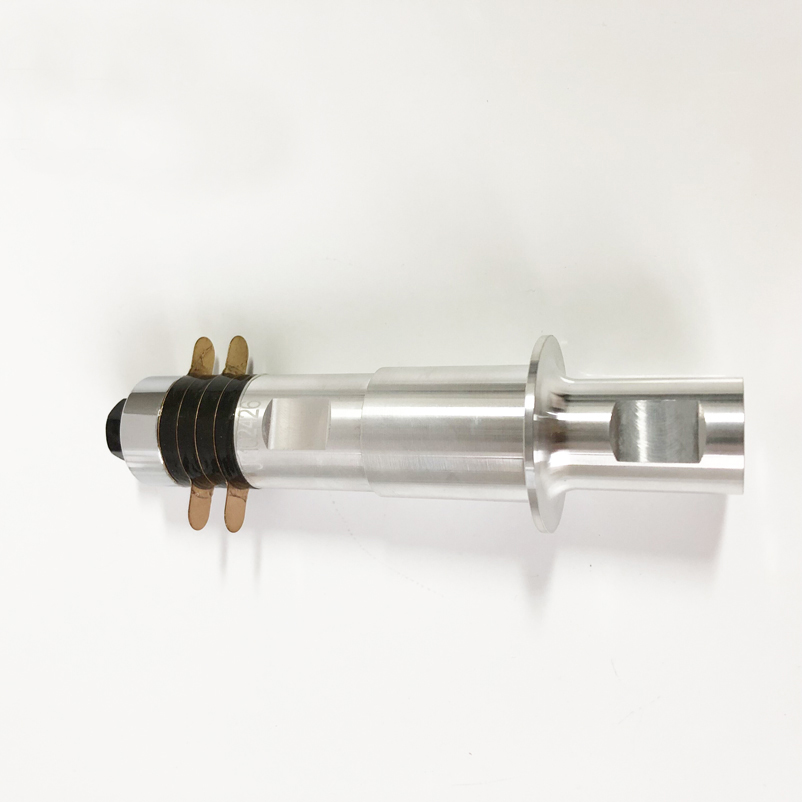

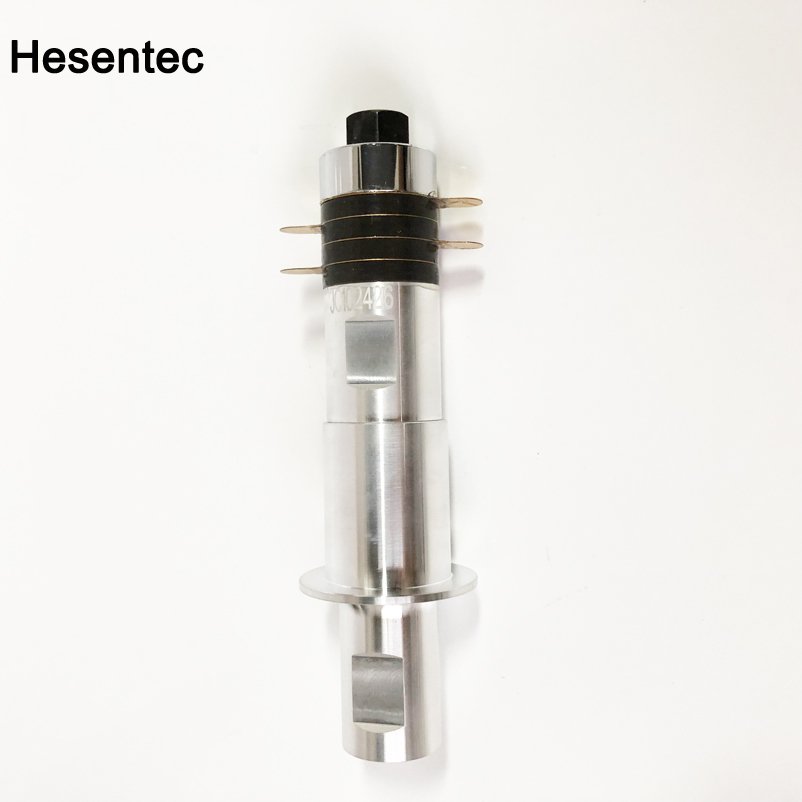

20KHz 500W Hesentec Ultrasonic Welding Transducer With Horn Introduction

20KHz 500W Hesentec Ultrasonic Welding Transducer With Horn

The working principle of ultrasonic welding transducer:
     In summarizing the types of ultrasonic welding machine transducers, let us first understand the working principle of ultrasonic transducers: ultrasonic transducers are composed of sandwich components made of lead zirconate titanate piezoelectric ceramic materials, usually non-woven fabrics. There will be a set of ultrasonic transducers at the ultrasonic welding head of the slitting machine, the non-woven slitting machine and the non-woven shearing machine. The main function of the ultrasonic transducer is to realize the energy conversion of acoustic energy, electrical energy and mechanical energy.
The role of ultrasonic welding transducers:
    The effect of ultrasonic transducer on non-woven slitting machine, non-woven slitting machine and non-woven shearing machine is mainly reflected in energy conversion. The ultrasonic energy is mainly concentrated by ultrasonic transducer and then converted into ultrasonic mold. And welding head.

Type Full-length(mm) Joint Bolt(mm) Frequency(KHz) Resonance Impedance(Ω) Capacity(pF) Input Power
(W)
HS-HJHNQ152500 P8 153 M20×1.5 15 15 13000 2500
HS-HJHNQ152000 P8 167 M20×1.5 15 10 9500 2000
HS-HJHNQ151500 P4 171 M18×1.5 15 12 12500 1500
HS-HJHNQ151800 P4 118 M20×1.5 20 15 15000 1800
HS-HJHNQ202000 P8 128 M18×1 20 10 11000 2000
HS-HJHNQ202000 P8 124 M18×1.5 20 12 10000 1500
HS-HJHNQ20700 P8 112 1/2-20 UNF 20 15 9000 700
HS-HJHNQ20900 P8 133 1/2-20 UNF 20 15 10000 900
HS-HJHNQ20600 P8 121 M18×1.5 20 15 6000 600
HS-HJHNQ30500 P8 77 M10×1.5 30 5 5500 500
HS-HJHNQ28200 P4 92.1 M10×1 28 20 3000 200
HS-HJHNQ28100 P8 91 M8×1 28 25 2200 100
HS-HJHNQ28250 P8 94 1/2-20 UNF 28 20 4000 250
HS-HJHNQ202000 P8 128 1/2-20 UNF 20 10 20000 2000
HS-HJHNQ201500 P8 124 1/2-20 UNF 20 10 16000 1500
HS-HJHNQ201300 P8 128 1/2-20 UNF 20 10 12500 1300
HS-HJHNQ201500 P8 132 1/2-20 UNF 20 10 11000 1500
HS-HJHNQ20900 P8 123 1/2-20 UNF 20 10 9500 900
HS-HJHNQ152000 P4 171 M18×1.5 15 12 10000 2000
HS-HJHNQ35100 P8 71 M8×1 35 25 2200 100
HS-HJHNQ38100 P8 66 M8×1.25 38 40 1200 100
HS-HJHNQ38200 P4 65 M8×1 38 14 3300 200
