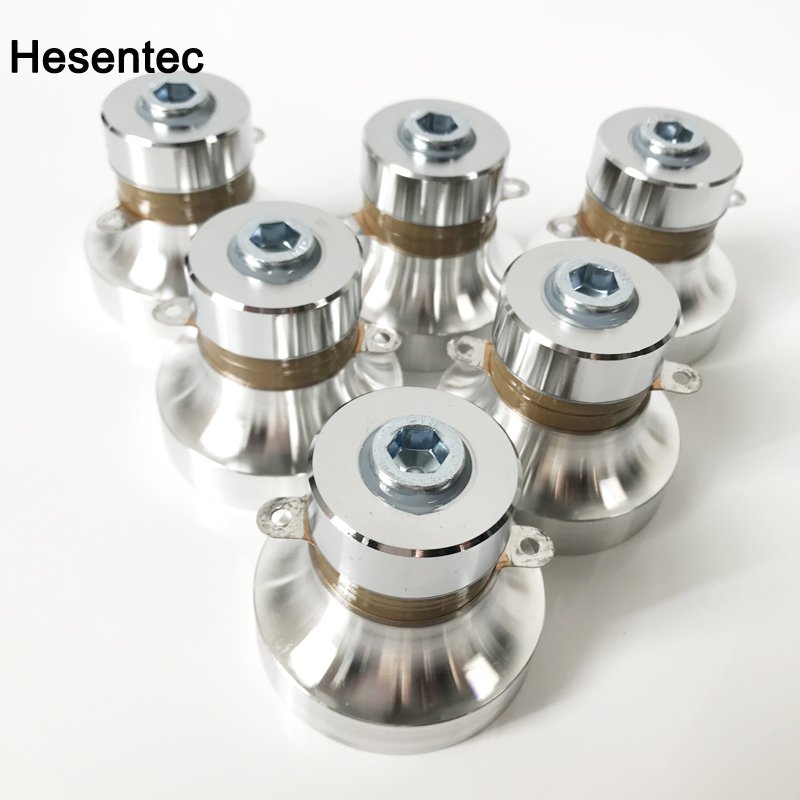

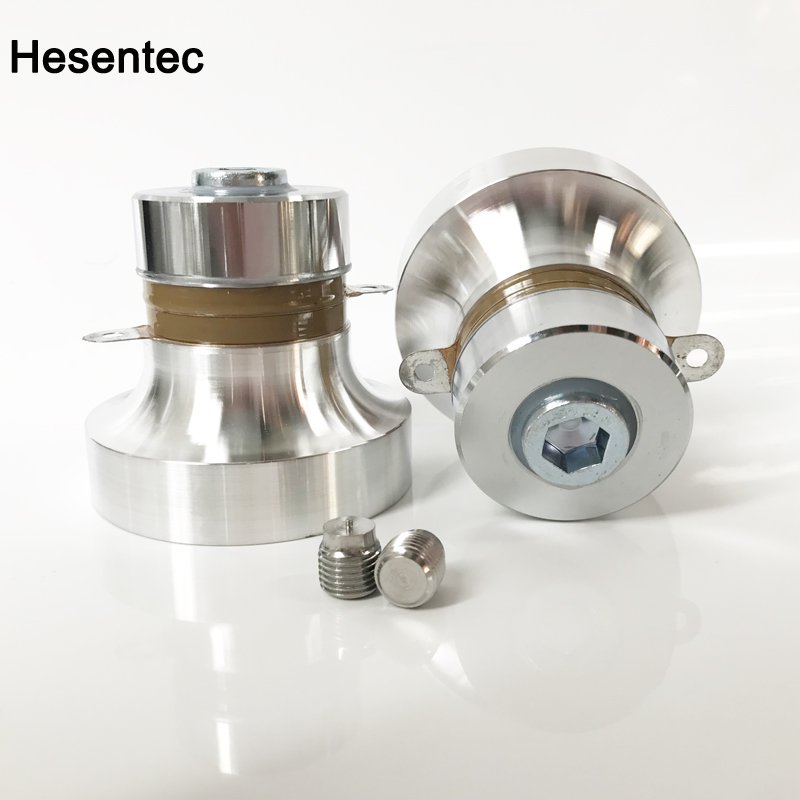

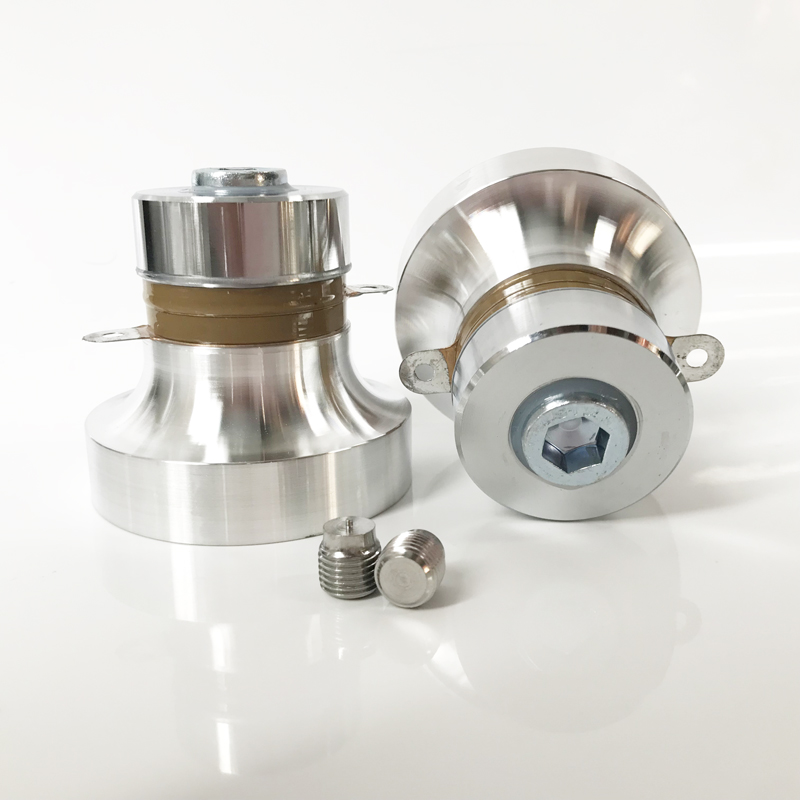

  • 28K 40K Hesentec Dual Frequency Ultrasonic Vibration Transducer

28K 40K Hesentec Dual Frequency Ultrasonic Vibration Transducer

28K 40K Hesentec Dual Frequency Ultrasonic Vibration Transducer Introduction

28KHz 40KHz Hesentec Dual Frequency Ultrasonic Vibration Transducer

The principle of ultrasonic cleaning transducer:

1. Cleaning different product layout has different requirements, such as the degree of oil contamination, the degree of difficulty in cleaning, the level of cleaning requirements, the design of cleaning process, all require targeted choices.
2. The arrangement of oscillators is not the more the more dense the better, the appropriate is the best.

Features:

1. Low heat
2. Good thermal stability
3. Frequency and static capacitance consistency strong.
4. Resonance impedance is low.
5. The average length of life.
6. It can be widely used in a variety of ultrasonic cleaning equipment.
7. High performance: mechanical Q value, high vibration efficiency, high amplitude

Payment Terms:Prepaid by Bank, T/T and West Union, ect.


Technical support: All our products adopt advanced technology, produce product with advanced system, all worker are experienced and skillful.

Model Frequency Capacitance Resonance Impedance    Size  Power  Insulation resistance
（KHz） （pF） （Ω）  Radiation Head*Height (mm) （W） (2500VDC)
HS-8SE-3828/40 28/40±1.0 3800±10% ≤30Ω 65*70 60w ≥100MΩ
HS-8SS-2540/130 40/130±2.0 3100±10% ≤30Ω 25*58 20w ≥100MΩ
HS-4SS-3840/68 38/66±2.0 4800±10% ≤20Ω 50*65 50w ≥100MΩ
HS-4SS-3840/80/130 38/79/128±2.0 4200±10% ≤25Ω 40*54 60w ≥100MΩ
HS-4SS-3840/60/80 38/65/84±2.0 4800±10% ≤25Ω 40*54 60w ≥100MΩ
HS-8SH-5020/40/60 20/40/60±2.0 5200±10% ≤25Ω 78*94 120w ≥100MΩ
HS-4SS-3840/100/160 38/100/160±2.0 4800±10% ≤25Ω 40*57 60w ≥100MΩ


28K 40K Hesentec Dual Frequency Ultrasonic Vibration Transducer
28K 40K Hesentec Dual Frequency Ultrasonic Vibration Transducer
