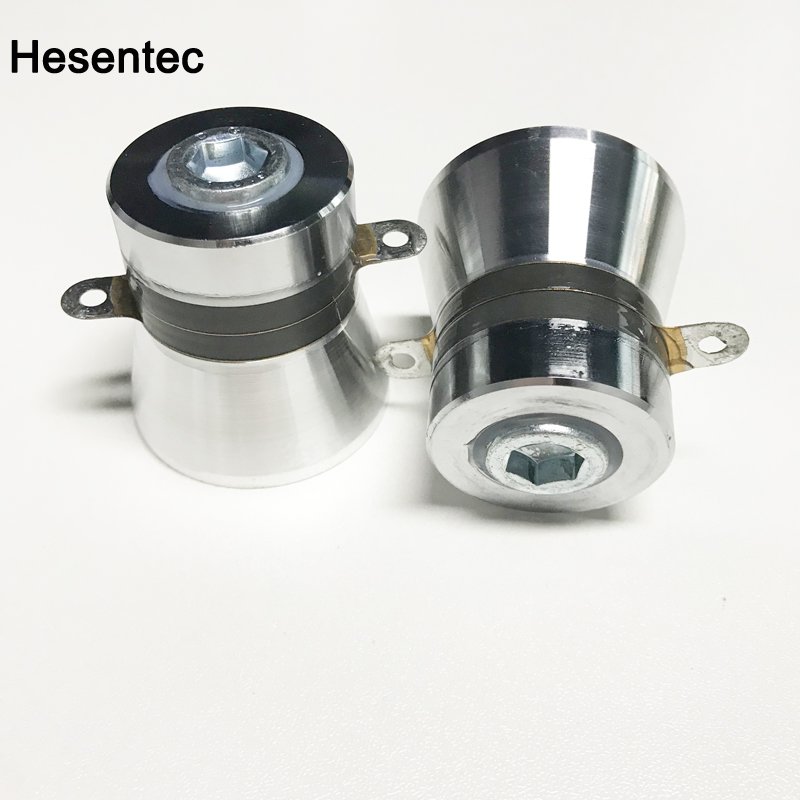

  • 40KHz/50W Hesentec Ultrasonic Vibration Transducer

40KHz/50W Hesentec Ultrasonic Vibration Transducer

40KHz/50W Hesentec Ultrasonic Vibration Transducer Introduction

40KHz/50W Hesentec Ultrasonic Vibration Transducer

Ultrasonic vibration transducer features:
1. High performance: high mechanical Q value, high conversion efficiency and high quality; 2. Ultrasonic vibration transducer, large amplitude, excellent performance; 3. Ultrasonic vibration transducer, heat resistance: piezoelectric ceramic material has Good heat resistance, can expand the operating temperature range, high Q value, low resonance impedance, low heat generation; 4. Ultrasonic vibration transducer products have a clean appearance and no rust. No obvious depression or scratches.

Model Frequency   Capacitance Resonance Impedance    Size  Power  Insulation resistance
（KHz） （pF） （Ω）  Radiation Head*Height (mm) （W） (2500VDC)
HS-8SH-3825 25±0.8 3800±10% ≤20Ω 59*80 60w ≥100MΩ
HS-8SH-3828 28±0.5 3800±10% ≤20Ω 59*68 60w ≥100MΩ
HS-8SH-3833 33±0.5 3800±10% ≤20Ω 48*61 60w ≥100MΩ
HS-8SH-3840 40±0.5 3800±10% ≤20Ω 48*51 60w ≥100MΩ
HS-8SH-4520 21.5±0.8 5600±10% ≤20Ω 67*92 100w ≥100MΩ
HS-8SH-4528 28±0.5 5600±10% ≤20Ω 67*68 100w ≥100MΩ
HS-8SH-5028 28±0.5 7200±10% ≤20Ω 67*68 120w ≥100MΩ
HS-4SS-3528 28 ±0.5 4000±10% ≤20Ω 45*79 50w ≥100MΩ
HS-4AH-3540 40 ±1.0 4000±10% ≤20Ω 45*55 50w ≥100MΩ
HS-4SH-3825 25±0.8 4800±10% ≤20Ω 59*80 60w ≥100MΩ
HS-4SH-3828 28±0.5 4800±10% ≤20Ω 59*68 60w ≥100MΩ
HS-4SS-3833 33±0.5 4800±10% ≤20Ω 48*62 60w ≥100MΩ
HS-4SH-3840 40±0.5 4800±10% ≤20Ω 48*51 60w ≥100MΩ
HS-4SH-4520 22±0.5 7600±10% ≤20Ω 67*92 100w ≥100MΩ
HS-4SH-4525 25±0.5 7600±10% ≤20Ω 67*76 100w ≥100MΩ
HS-4SH-4528 28±0.5 7600±10% ≤20Ω 67*68 100w ≥100MΩ
HS-4SH-4540 40±0.5 7600±10% ≤20Ω 55*53 100w ≥100MΩ
HS-4SH-5028 28±0.5 9600±10% ≤20Ω 67*68 120w ≥100MΩ
HS-4SS-38100 100±1.5 4800±10% ≤25Ω 40*57 60w ≥100MΩ
HS-4AS-38120 120±1.5 4800±10% ≤25Ω 40*58 60w ≥100MΩ
HS-4AH-25200 200±2.0 2300±10% ≤35Ω 30*35 20w ≥100MΩ

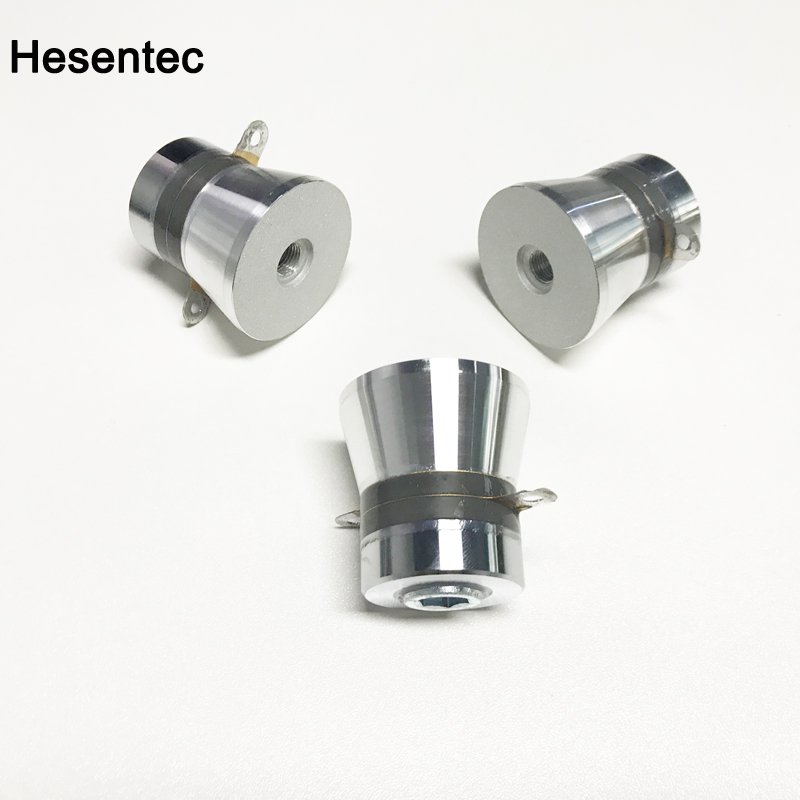

40KHz/50W Hesentec Ultrasonic Vibration Transducer
40KHz/50W Hesentec Ultrasonic Vibration Transducer
