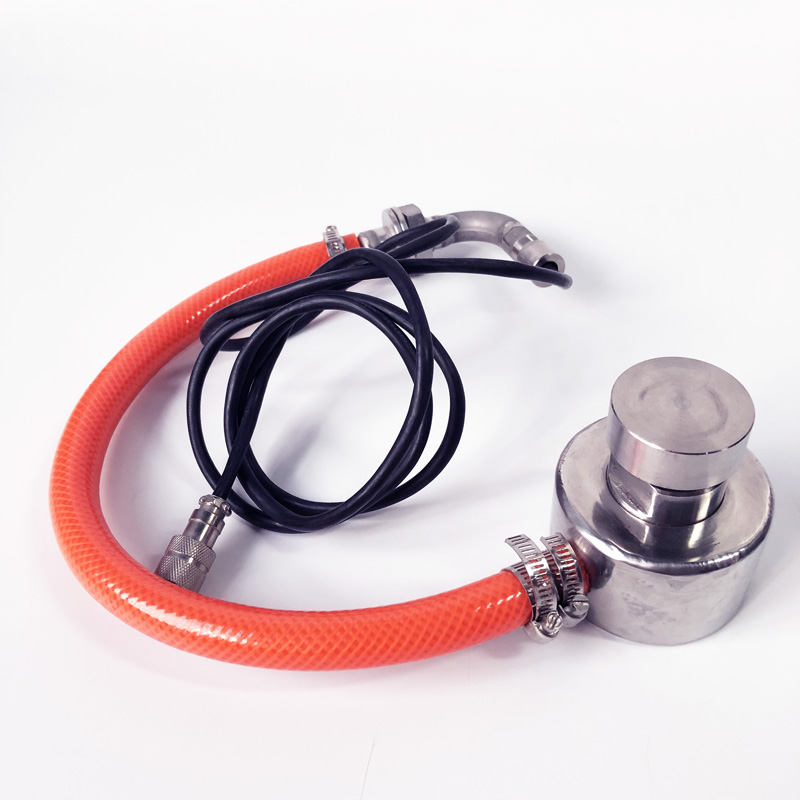

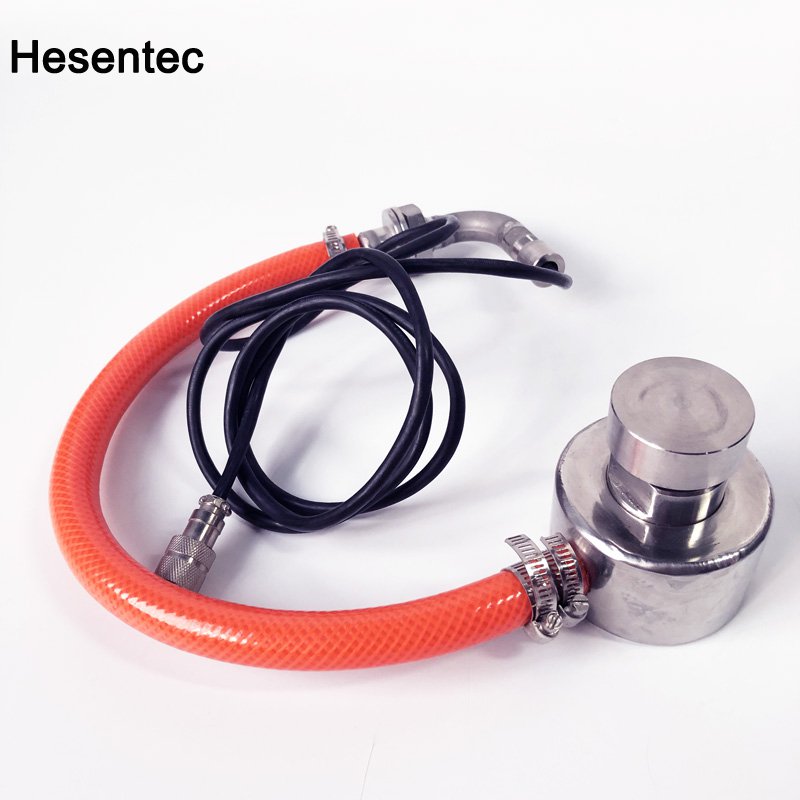

33KHz 100W Hesentec Ultrasonic Vibrating Screen Transducer
Introduction of Ultrasonic Vibrator Transducer:
Ultrasonic vibrating sieve machine suitable to sieve power, which is light density, low humidity, easy adhesion or a static of the powder and super fine powder, and improve the sieving efficiency. It is widely used in carbonize silicon, alloy powder, tungsten powder, aluminum powder, rubbing powder etc. It can completely solve the difficult technology problems that other screening machines cannot solve.
Main Features
1. Can solve sieving difficulties such as high adsorption, easy clustering, high static, high precision, high density, light proportion, etc.
2. Effectively control the sieving granularity scale.
3. Realize the high precision sieving to achieve the best sieving effect.
4. Screening precision can raise to 1-100%, the output can be raised to 0.5-10 times.
5. Ultrasonic vibrating sieve can be used with single layer or multilevel.

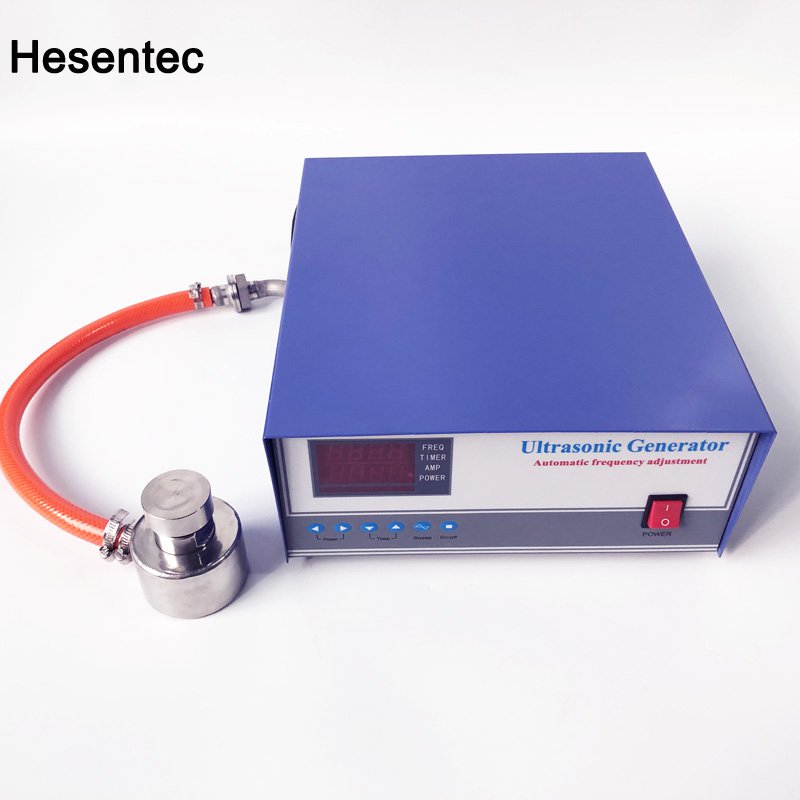

6. A set of intelligent ultrasonic generator can be used with three controllers at the same time.
7. Self-cleaning function; 0-500mesh sieving, no-blocking sieving mesh, stable sieving efficiency.
8. Keep processed materials feature stable.
|
Type |
Frequency（KHz） |
Input Power（W） |
Ultrasonic transducer |
|
HS-ZDS-100W |
33K,35K |
100W |
1 |
|
HS-ZDS-200W |
33K,35K |
200W |
2 |
|
HS-ZDS-300W |
33K,35K |
300W |
3 |
