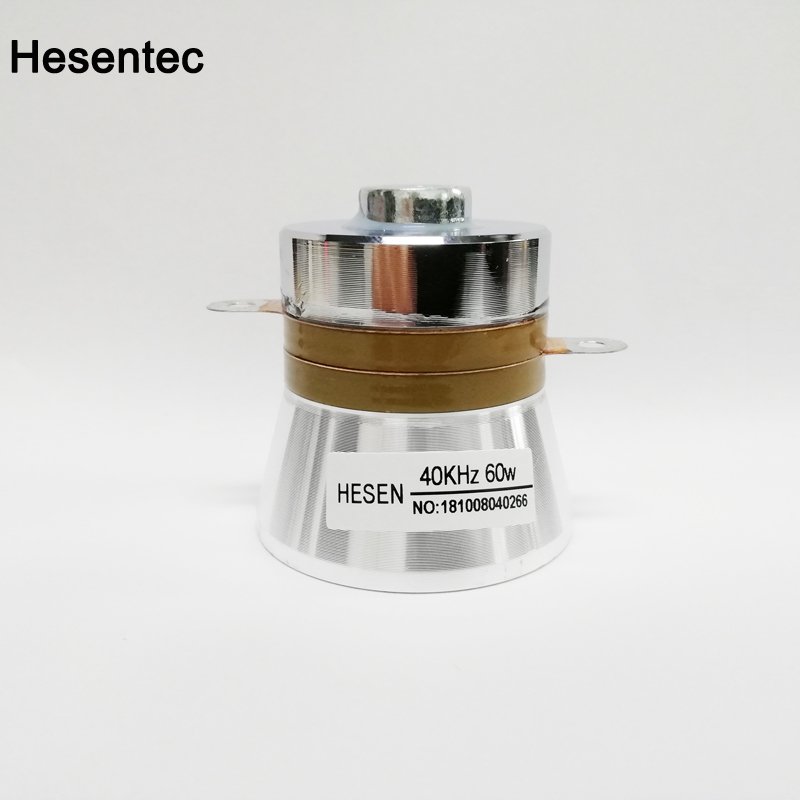

40KHz 60W Hesentec Ultrasonic Vibration Transducer P8
Main Features:
1. High mechanical quality and excellent electro-acoustic conversion efficiency, providing a high output amplitude.
2. Piezoelectric element offer a high speed of vibration. Through bolt-on mounting, mechanical intensity and amplitude have been improved.
3. Having steady output amplitude even the load markedly changed.
4. Extended using temperature, ensuring good amplitude linearity. Lower resonant impedance , ensuring high conversion efficiency.
5. Bolt-on mounting gives the fast, easy installation and high reliability.
Ultrasonic cleaning happens to be a transducer generated by ultrasonic vibration, the cavitation effect caused by instantaneous high-pressure cavitation, impacting the cleaned objects, and achieving a good cleaning effect.
The ultrasonic cleaning transducer is a continuous working medium power transducer. Typically, the average of continuous operation is used to calculate and constant its power.
Payment Terms:Prepaid by Bnak, T/T and West Union, ect.
Technical support: All our products adopt advanced technology, produce product with advanced system, all worker are experienced and skillful.
|
Model |
Frequency |
Capacitance |
Resonance Impedance |
Size |
Power |
Insulation resistance |
|
（KHz） |
（pF） |
（Ω） |
Radiation Head*Height (mm) |
（W） |
(2500VDC) |
|
HS-8SH-3825 |
25±0.8 |
3800±10% |
≤20Ω |
59*80 |
60w |
≥100MΩ |
|
HS-8SH-3828 |
28±0.5 |
3800±10% |
≤20Ω |
59*68 |
60w |
≥100MΩ |
|
HS-8SH-3833 |
33±0.5 |
3800±10% |
≤20Ω |
48*61 |
60w |
≥100MΩ |
|
HS-8SH-3840 |
40±0.5 |
3800±10% |
≤20Ω |
48*51 |
60w |
≥100MΩ |
|
HS-8SH-4520 |
21.5±0.8 |
5600±10% |
≤20Ω |
67*92 |
100w |
≥100MΩ |
|
HS-8SH-4528 |
28±0.5 |
5600±10% |
≤20Ω |
67*68 |
100w |
≥100MΩ |
|
HS-8SH-5028 |
28±0.5 |
7200±10% |
≤20Ω |
67*68 |
120w |
≥100MΩ |
|
HS-4SS-3528 |
28 ±0.5 |
4000±10% |
≤20Ω |
45*79 |
50w |
≥100MΩ |
|
HS-4AH-3540 |
40 ±1.0 |
4000±10% |
≤20Ω |
45*55 |
50w |
≥100MΩ |
|
HS-4SH-3825 |
25±0.8 |
4800±10% |
≤20Ω |
59*80 |
60w |
≥100MΩ |
|
HS-4SH-3828 |
28±0.5 |
4800±10% |
≤20Ω |
59*68 |
60w |
≥100MΩ |
|
HS-4SS-3833 |
33±0.5 |
4800±10% |
≤20Ω |
48*62 |
60w |
≥100MΩ |
|
HS-4SH-3840 |
40±0.5 |
4800±10% |
≤20Ω |
48*51 |
60w |
≥100MΩ |
|
HS-4SH-4520 |
22±0.5 |
7600±10% |
≤20Ω |
67*92 |
100w |
≥100MΩ |
|
HS-4SH-4525 |
25±0.5 |
7600±10% |
≤20Ω |
67*76 |
100w |
≥100MΩ |
|
HS-4SH-4528 |
28±0.5 |
7600±10% |
≤20Ω |
67*68 |
100w |
≥100MΩ |
|
HS-4SH-4540 |
40±0.5 |
7600±10% |
≤20Ω |
55*53 |
100w |
≥100MΩ |
|
HS-4SH-5028 |
28±0.5 |
9600±10% |
≤20Ω |
67*68 |
120w |
≥100MΩ |
|
HS-4SS-38100 |
100±1.5 |
4800±10% |
≤25Ω |
40*57 |
60w |
≥100MΩ |
|
HS-4AS-38120 |
120±1.5 |
4800±10% |
≤25Ω |
40*58 |
60w |
≥100MΩ |
|
HS-4AH-25200 |
200±2.0 |
2300±10% |
≤35Ω |
30*35 |
20w |
≥100MΩ |
