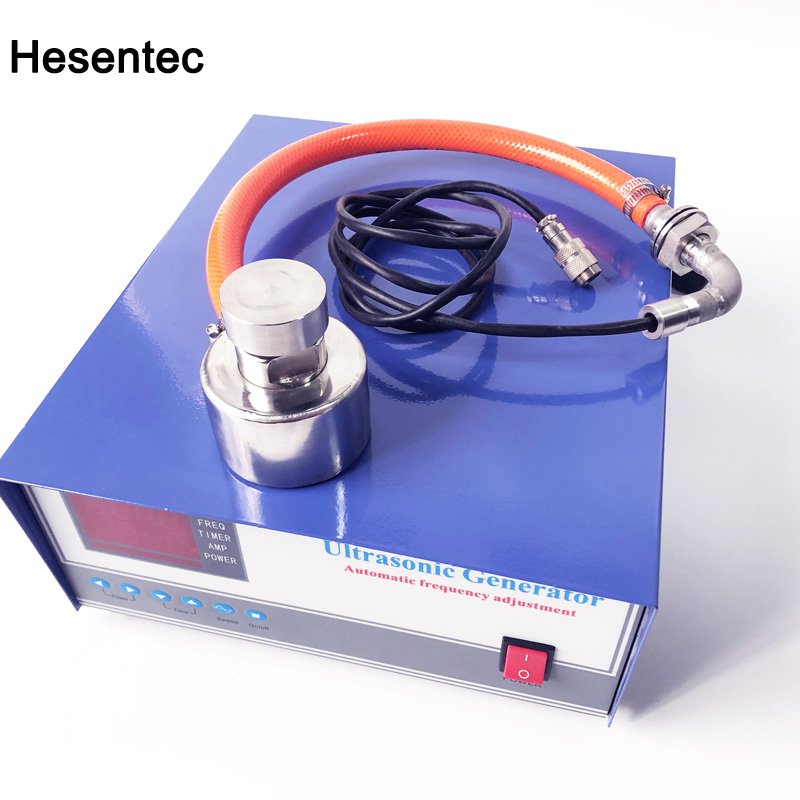

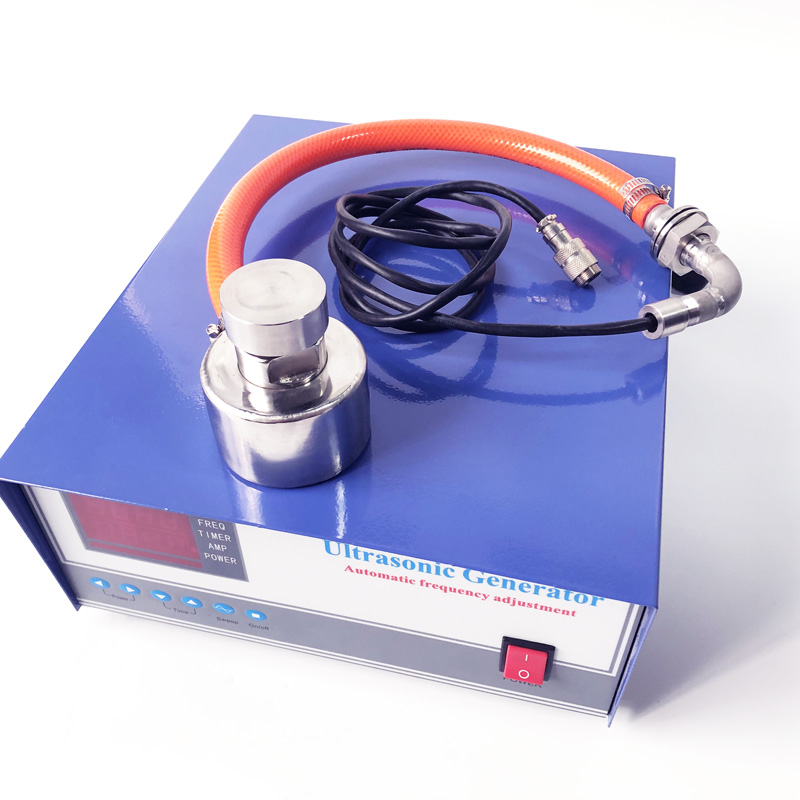

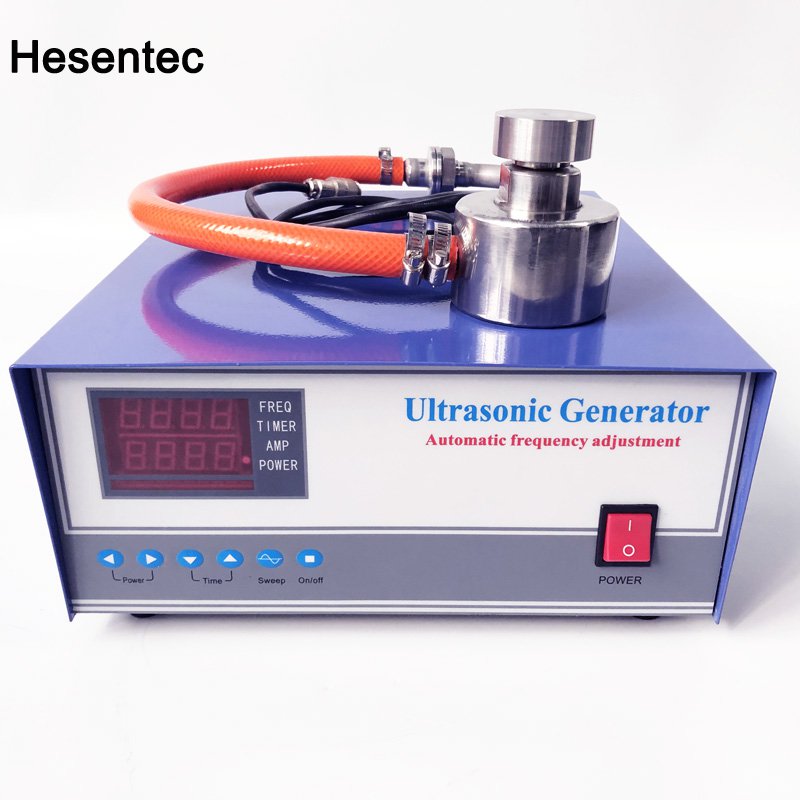

33KHz Ultrasonic Vibrating Sieve Transducer For Vibrating Screen

33KHz Ultrasonic Vibrating Sieve Transducer For Vibrating Screen Introduction

33KHz Ultrasonic Vibrating Sieve Transducer For Vibrating Screen

Ultrasonic vibrating screen power supply is the core technology of ultrasonic vibrating screen. It plays a vital role in solving the problem of screen mesh plugging. The vibrating screen can screen the finer particles, the screening efficiency is higher, and the application range is wider. .

Ultrasonic vibrating screen installation inspection

1. According to the identification of the ultrasonic generator connection wire, directly insert the interface and lock, so that the power supply of the ultrasonic generator and the ultrasonic interface of the sieve machine are correctly connected.

2. Turn the fine-tuning knob on the ultrasonic generator power supply to the minimum, and turn on the ultrasonic generator power switch to investigate whether the current meter is abnormal. (Under normal conditions, the current should be less than 200mA).

3. Check and debug the three-dimensional vibrating screening filter, and make the material running track reach the standard running track.

4. Run the three-dimensional vibrating screening filter (screw vibrating screen), slightly feed the material and fine-tune the ultrasonic generator power supply to fine-tune the knob to make the screen reach an ideal condition. (current should be less than 200mA)

5. Under the condition that the ultrasonic vibrating screen is normal, it can be uniformly fed and then enter normal operation.
