  • Hesentec Ultrasonic Vibration Transducer 40KHz/50W PZT4

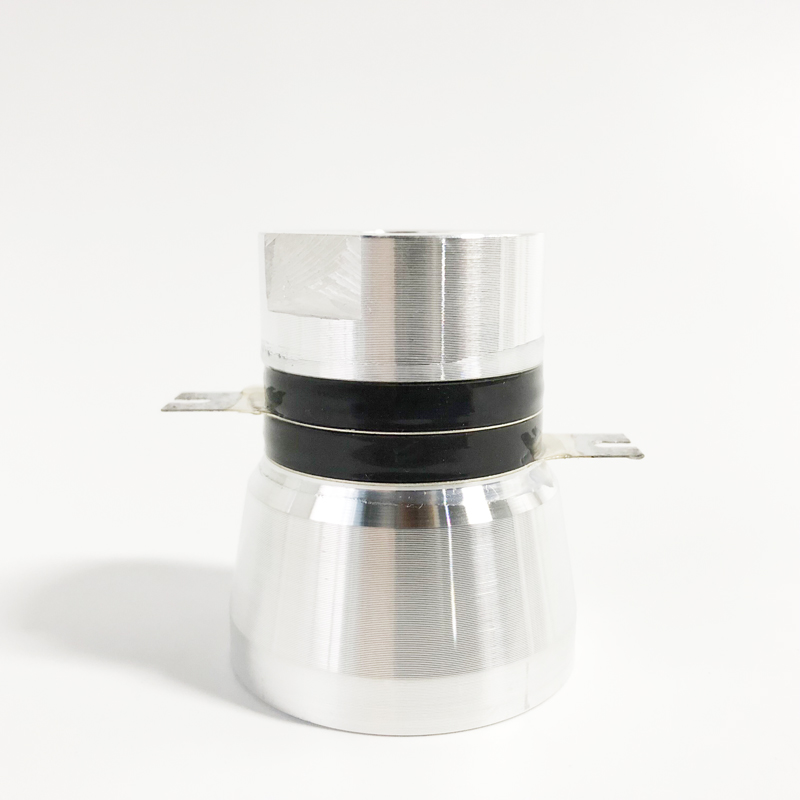

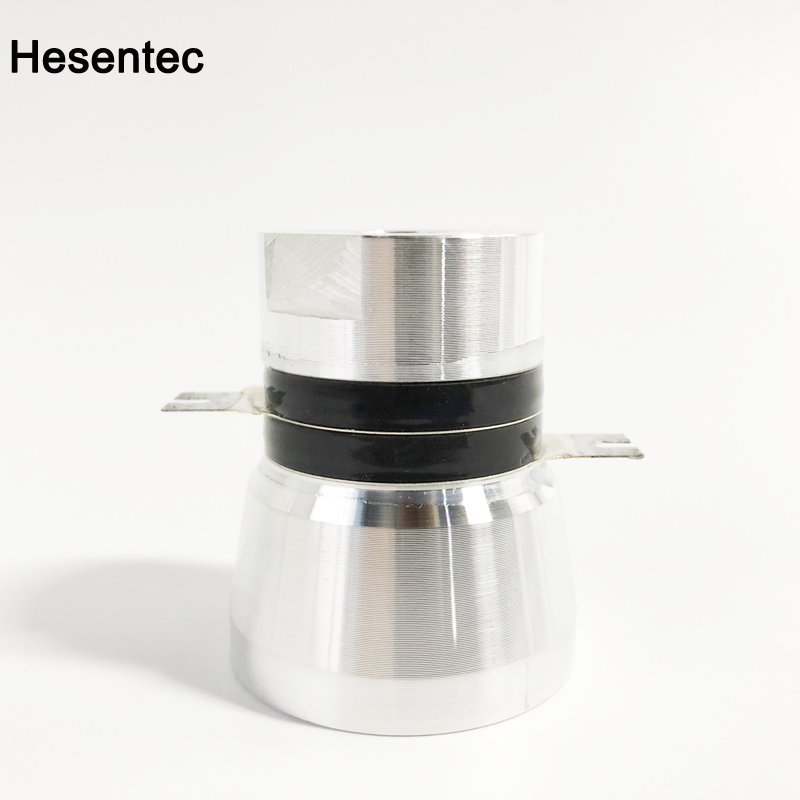

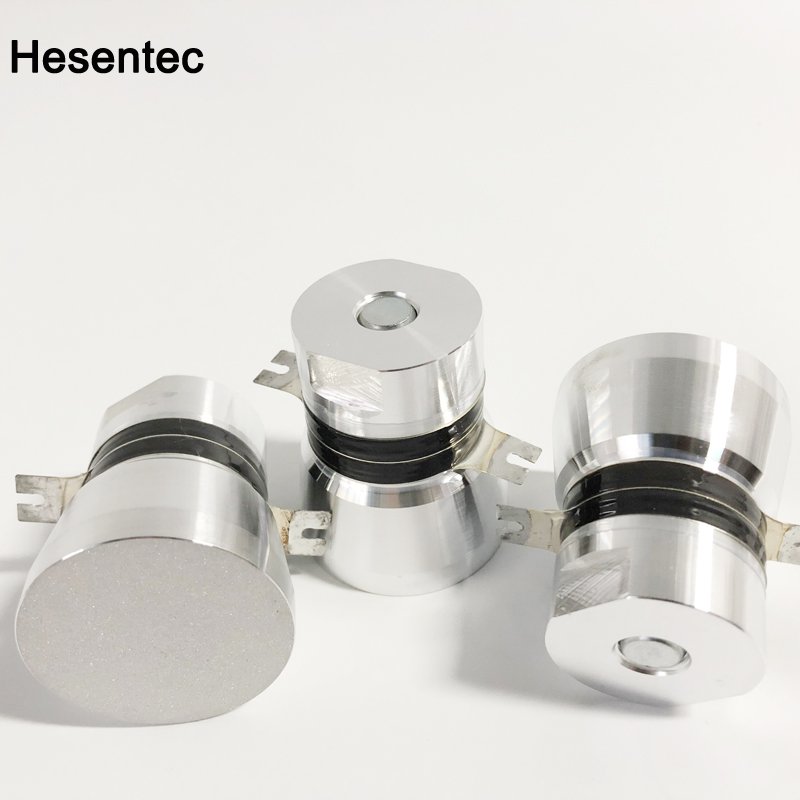

Hesentec Ultrasonic Vibration Transducer 40KHz/50W PZT4

Hesentec Ultrasonic Vibration Transducer 40KHz/50W PZT4 Introduction

Hesentec Ultrasonic Vibration Transducer 40KHz/50W PZT4

Ultrasonic vibrating head mounting technology:
1. Preparation tools: argon arc welding, hex wrench No. 10, ferrochrome wire, 2.5 square high temperature wire, 2 * 2.5 cable, oscillating rubber, (stripping pliers, casing, strapping, sand blasting) machine, pipe fittings Wait). 2. Welded screws: Calculate the arrangement position of the oscillator, solder the screws to the cleaning position, and then clean the screws to ensure that they are flat, so as not to affect the installation of the oscillator. 3. Glue configuration: Mix the glue evenly according to the specified ratio. (Merry, Eroda, 4030 glue mixed before bonding, KMD398 glue mixed during bonding). 4. Install the vibrating head: Spread the glue evenly on the bottom of the ultrasonic oscillator, gently twist the air between the bottom of the transducer and the bottom contact surface of the cylinder and excess glue to make the oscillator more tightly integrated. stainless steel. V. Coagulation and coagulation: solidification at a high room temperature, wiring for 4-8 hours, after 24 hours of the electric test machine, the test machine absolutely does not allow empty vibration. Note: 1. Metal nailing machines can also replace argon arc welding. 2. The welding screws must be completely welded, otherwise they will fall off easily. 3. Regarding curing, temperature should be considered for a long time, low temperature for a long time, and high temperature time is faster. It is recommended to operate at room temperature, even if heated, do not overheat, appropriate and optimal.

Model Frequency   Capacitance Resonance Impedance    Size  Power  Insulation resistance
（KHz） （pF） （Ω）  Radiation Head*Height (mm) （W） (2500VDC)
HS-8SH-3825 25±0.8 3800±10% ≤20Ω 59*80 60w ≥100MΩ
HS-8SH-3828 28±0.5 3800±10% ≤20Ω 59*68 60w ≥100MΩ
HS-8SH-3833 33±0.5 3800±10% ≤20Ω 48*61 60w ≥100MΩ
HS-8SH-3840 40±0.5 3800±10% ≤20Ω 48*51 60w ≥100MΩ
HS-8SH-4520 21.5±0.8 5600±10% ≤20Ω 67*92 100w ≥100MΩ
HS-8SH-4528 28±0.5 5600±10% ≤20Ω 67*68 100w ≥100MΩ
HS-8SH-5028 28±0.5 7200±10% ≤20Ω 67*68 120w ≥100MΩ
HS-4SS-3528 28 ±0.5 4000±10% ≤20Ω 45*79 50w ≥100MΩ
HS-4AH-3540 40 ±1.0 4000±10% ≤20Ω 45*55 50w ≥100MΩ
HS-4SH-3825 25±0.8 4800±10% ≤20Ω 59*80 60w ≥100MΩ
HS-4SH-3828 28±0.5 4800±10% ≤20Ω 59*68 60w ≥100MΩ
HS-4SS-3833 33±0.5 4800±10% ≤20Ω 48*62 60w ≥100MΩ
HS-4SH-3840 40±0.5 4800±10% ≤20Ω 48*51 60w ≥100MΩ
HS-4SH-4520 22±0.5 7600±10% ≤20Ω 67*92 100w ≥100MΩ
HS-4SH-4525 25±0.5 7600±10% ≤20Ω 67*76 100w ≥100MΩ
HS-4SH-4528 28±0.5 7600±10% ≤20Ω 67*68 100w ≥100MΩ
HS-4SH-4540 40±0.5 7600±10% ≤20Ω 55*53 100w ≥100MΩ
HS-4SH-5028 28±0.5 9600±10% ≤20Ω 67*68 120w ≥100MΩ
HS-4SS-38100 100±1.5 4800±10% ≤25Ω 40*57 60w ≥100MΩ
HS-4AS-38120 120±1.5 4800±10% ≤25Ω 40*58 60w ≥100MΩ
HS-4AH-25200 200±2.0 2300±10% ≤35Ω 30*35 20w ≥100MΩ

Hesentec Ultrasonic Vibration Transducer 40KHz/50W PZT4
Hesentec Ultrasonic Vibration Transducer 40KHz/50W PZT4
