40khz ultrasonic transducer for spot welding machine

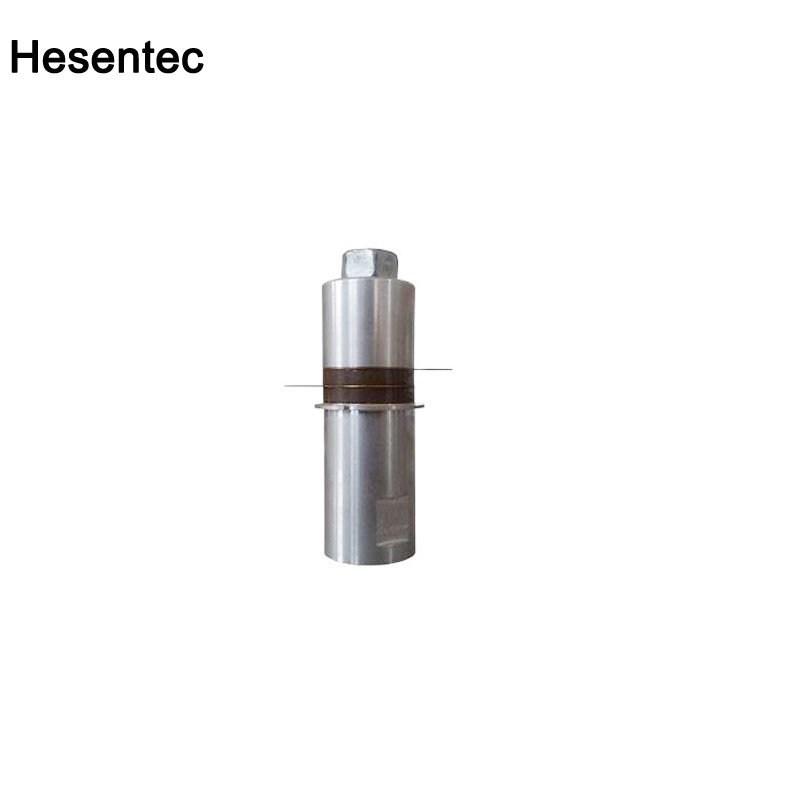

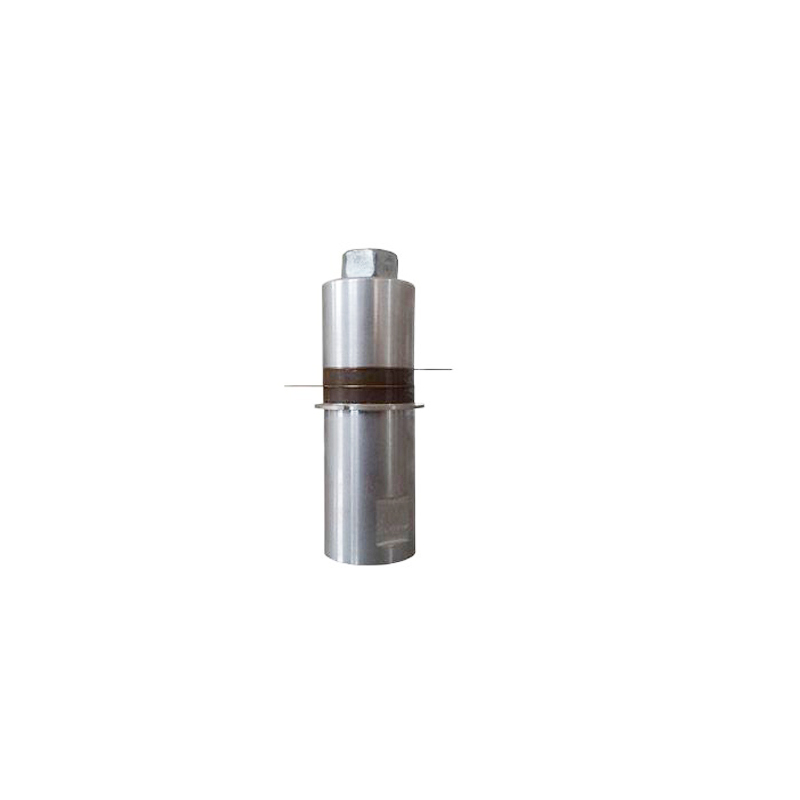

40khz/100W Handheld Ultrasonic Plastic Welding Transducer

The ultrasonic vibrator is also called an ultrasonic vibrator. The whole connection between the transducer and the horn is called a vibrator. The piezoelectric effect of piezoelectric ceramics realizes the mutual conversion of electrical energy and mechanical energy (acoustic vibration), and the device is amplified by the acoustic impedance matching front and rear radiation cover blocks.

Since the horn is a passive device, it generates vibration itself, but only changes the amplitude of the input vibration and then transmits it, completing the impedance transformation.

Ultrasonic transducers can generate regular vibrations under electric field excitation, but the amplitude is generally around 10 μm. Such amplitude is not enough to directly complete the welding and processing steps.

Therefore, after the transducer is connected to a properly designed horn, the amplitude of the ultrasonic wave can be varied over a wide range, as long as the material strength is sufficient and the amplitude can exceed 100 μm.

Type	Full-length(mm)	Joint Bolt(mm)	Frequency(KHz)	Resonance Impedance(Ω)	Capacity(pF)	Input Power (W)
HS-HJHNQ152500 P8	153	M20×1.5	15	15	13000	2500
HS-HJHNQ152000 P8	167	M20×1.5	15	10	9500	2000
HS-HJHNQ151500 P4	171	M18×1.5	15	12	12500	1500
HS-HJHNQ151800 P4	118	M20×1.5	20	15	15000	1800
HS-HJHNQ202000 P8	128	M18×1	20	10	11000	2000
HS-HJHNQ202000 P8	124	M18×1.5	20	12	10000	1500
HS-HJHNQ20700 P8	112	1/2-20 UNF	20	15	9000	700
HS-HJHNQ20900 P8	133	1/2-20 UNF	20	15	10000	900
HS-HJHNQ20600 P8	121	M18×1.5	20	15	6000	600
HS-HJHNQ30500 P8	77	M10×1.5	30	5	5500	500
HS-HJHNQ28200 P4	92.1	M10×1	28	20	3000	200
HS-HJHNQ28100 P8	91	M8×1	28	25	2200	100
HS-HJHNQ28250 P8	94	1/2-20 UNF	28	20	4000	250
HS-HJHNQ202000 P8	128	1/2-20 UNF	20	10	20000	2000
HS-HJHNQ201500 P8	124	1/2-20 UNF	20	10	16000	1500
HS-HJHNQ201300 P8	128	1/2-20 UNF	20	10	12500	1300
HS-HJHNQ201500 P8	132	1/2-20 UNF	20	10	11000	1500
HS-HJHNQ20900 P8	123	1/2-20 UNF	20	10	9500	900
HS-HJHNQ152000 P4	171	M18×1.5	15	12	10000	2000
HS-HJHNQ35100 P8	71	M8×1	35	25	2200	100
HS-HJHNQ38100 P8	66	M8×1.25	38	40	1200	100
HS-HJHNQ38200 P4	65	M8×1	38	14	3300	200
