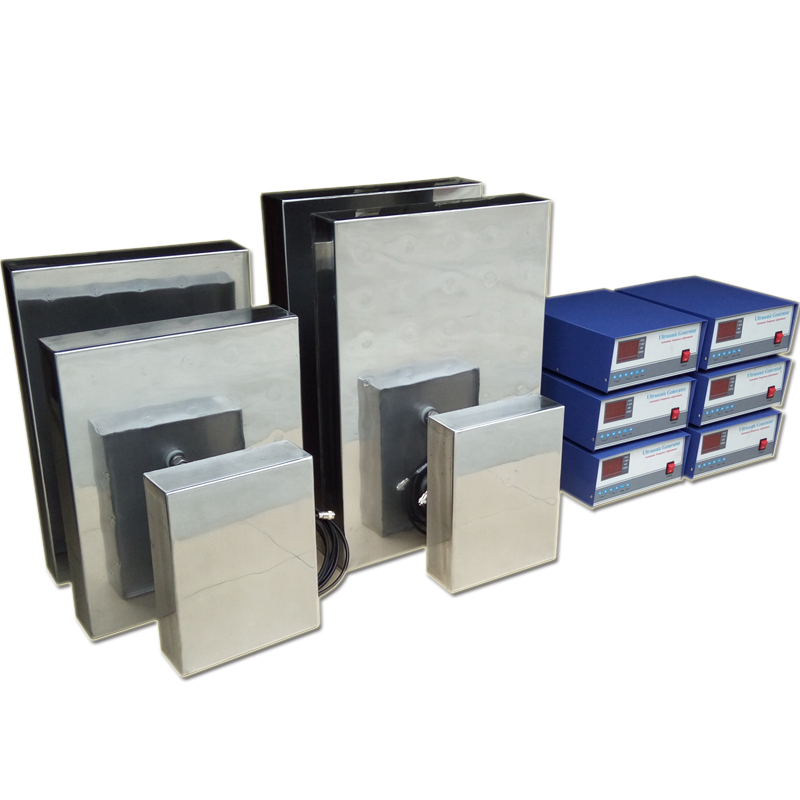

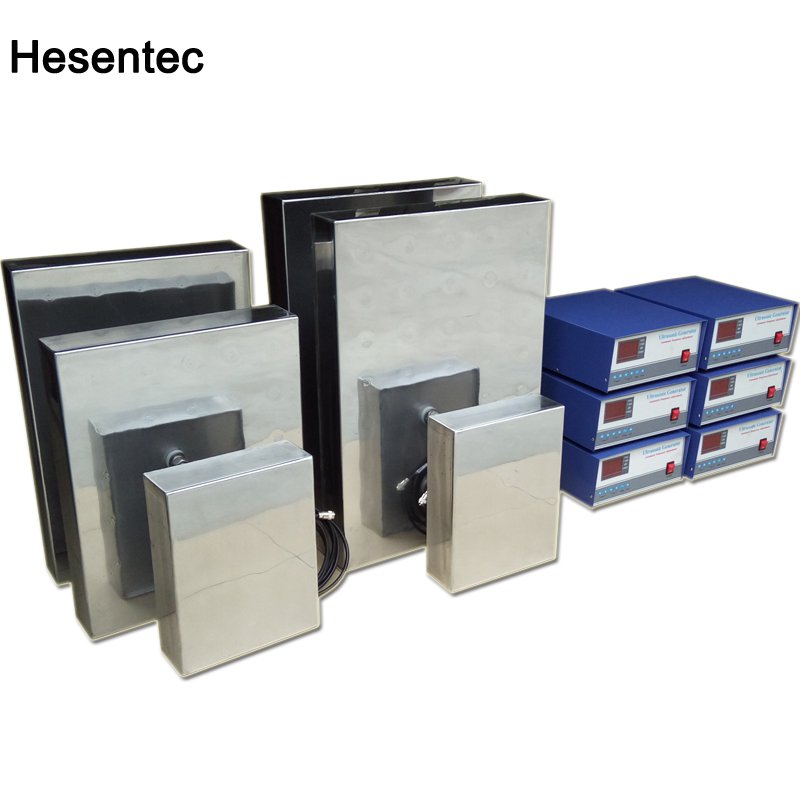

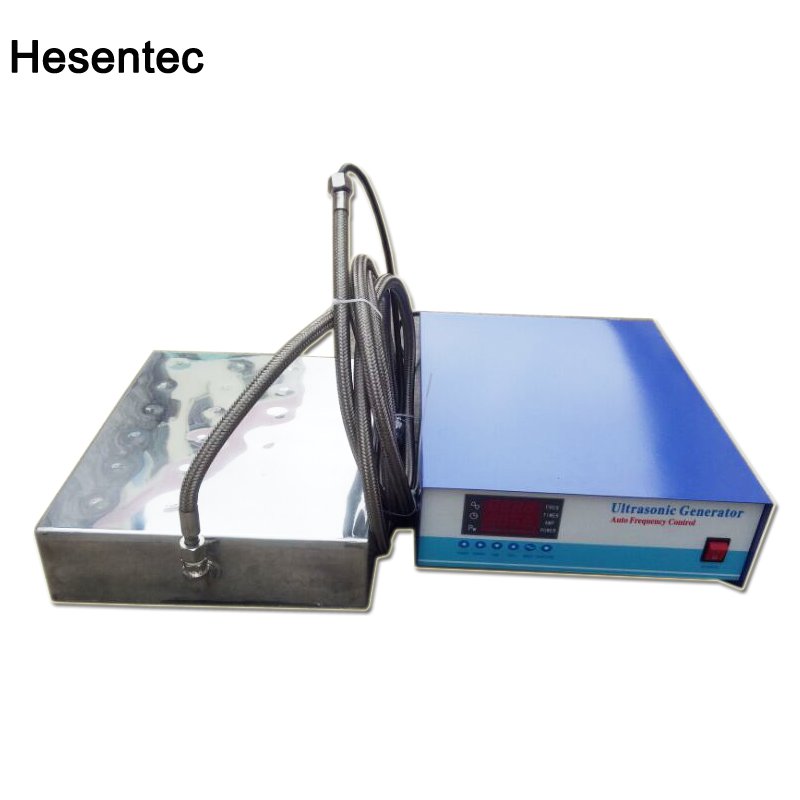

28KHz/40KHz Titanium Alloy Submersible Ultrasonic Transducer Box

28KHz/40KHz Titanium Alloy Submersible Ultrasonic Transducer Box


Ultrasonic input type ultrasonic vibration plate
Composition: Ultrasonic vibration plate and ultrasonic generator are composed of two parts.
Suitable for pre-plating and post-plating cleaning, watch parts, jewellery, lenses, eyeglass frames and glassware.
  With his excitation circuit structure, the input electric power is increased by more than 15% compared with the old circuit.
  The ultrasonic output frequency can be fine-tuned according to different working conditions.
  Equipped with an acoustic sweep line to improve cleaning efficiency.
  The ultrasonic output power is continuously steplessly adjustable and displayable, and the range is 10-100%;

Type	Diamention(mm)	Frequency (Khz)	Power(W)	Ultrasonic Transducer
HS-ZBH300W	300*190*100	25,28,33,40,80,130	300	6
HS-ZBH600W	360*275*100	25,28,33,40,80,130	600	12
HS-ZBH1000W	450*350*100	25,28,33,40,80,130	1000	20
HS-ZBH1200W	470*380*100	25,28,33,40,80,130	1200	24
HS-ZBH1500W	520*450*100	25,28,33,40,80,130	1500	30
HS-ZBH1800W	560*450*100	25,28,33,40,80,130	1800	36
HS-ZBH2000W	650*450*100	25,28,33,40,80,130	2000	40
HS-ZBH2400W	740*520*100	25,28,33,40,80,130	2400	48
HS-ZBH3000W	820*540*100	25,28,33,40,80,130	3000	60
HS-ZBH5000W	1200*590*100	25,28,33,40,80,130	5000	100
Above are single frequency ultrasonic immersible transducer pack OEM Ultrasonic Immersible Transducer Pack（Size, Frequency,Power）
